302A10139X

Active

Amphenol CONEC

CONN D-SUB HD RCPT 26POS PNL MNT

Search across all available documentation for this part.

Active

Amphenol CONEC

CONN D-SUB HD RCPT 26POS PNL MNT

Technical Specifications

Parameters and characteristics for this part

Specification	302A10139X

Color	Black
Connector Style	High Density, D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Number of Positions	26
Number of Rows	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	2
Shell Size, Connector Layout	(DA, A) High Density
Voltage Rating	60 VDC
Wire Gauge	22 AWG

Part	Contact Finish Thickness	Number of Rows	Connector Style	Material Flammability Rating	Wire Gauge	Voltage Rating	Color	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Flange Feature	Contact Finish	Connector Type	Contact Type	Current Rating (Amps)	Shell Size, Connector Layout	Shell Size, Connector Layout	Contact Material	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Mounting Type	Termination	Wire Gauge	Wire Gauge [Max]	Wire Gauge [Min]
Amphenol CONEC 302A10139X	Flash	3	D-Sub High Density	UL94 V-0	22 AWG	60 VDC	Black	26	-55 °C	125 °C	Polybutylene Terephthalate (PBT) Glass Filled	Housing/Shell (Unthreaded)	Gold	Receptacle Female Sockets	Signal	3 A	2	(DA A) High Density	Copper Alloy
Amphenol CONEC 302A10129X	Flash	3	D-Sub High Density	UL94 V-0	22 AWG	60 VDC	Black	15	-55 °C	125 °C	Polybutylene Terephthalate (PBT) Glass Filled	Housing/Shell (Unthreaded)	Gold	Receptacle Female Sockets	Signal	3 A			Copper Alloy	DE E	1	High Density
Amphenol CONEC 302A10119X		2	D-Sub	UL94 V-0		125 VDC	Black	37	-25 °C	85 °C	Polybutylene Terephthalate (PBT) Glass Filled	Housing/Shell (Unthreaded)	Gold	Receptacle Female Sockets	Signal			4 (DC C)	Phosphor Bronze				Free Hanging (In-Line)	IDC Ribbon Cable	Stranded	28 AWG	26 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

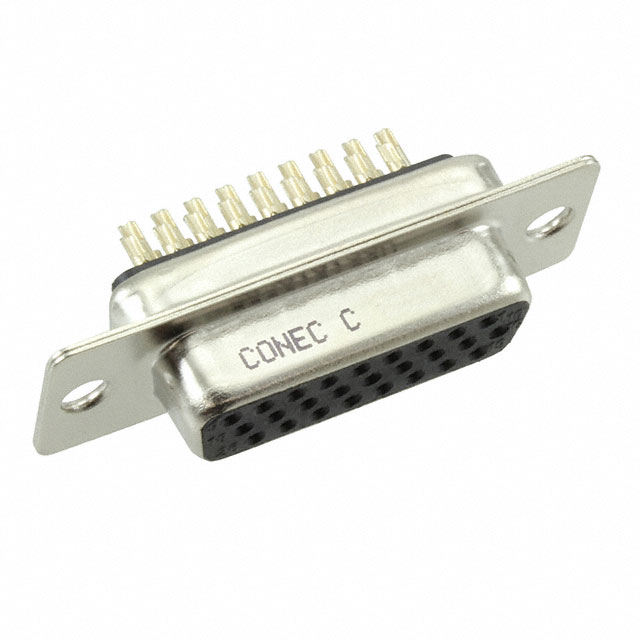

26 Position D-Sub, High Density Receptacle, Female Sockets Connector
