1-776231-5
ActiveTE Connectivity AMP Connectors

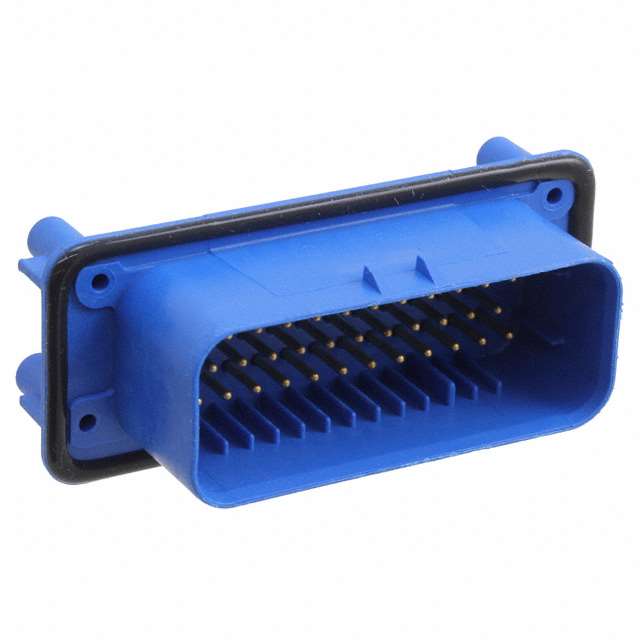

CONN HEADER VERT 35POS 4MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1-776231-5
ActiveTE Connectivity AMP Connectors
CONN HEADER VERT 35POS 4MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1-776231-5 | 776231 Series |
|---|---|---|
| Applications | Industrial, Automotive | Industrial, Automotive |
| Connector Type | Header | Header |
| Contact Finish - Mating | Gold-Palladium | Gold-Palladium |
| Contact Material | Brass | Brass |
| Contact Shape | Circular | Circular |
| Contact Type | Male Pin | Male Pin |
| Current Rating (Amps) | Varies by Wire Gauge | Varies by Wire Gauge |
| Fastening Type | Locking Ramp | Locking Ramp |
| Features | Sealed, Mounting Flange | Sealed, Mounting Flange |
| Insulation Color | Blue | Blue, Black, Orange, Natural |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled | Polybutylene Terephthalate (PBT), Glass Filled |
| Mounting Type | Through Hole, Panel Mount | Through Hole, Panel Mount |
| Number of Positions | 35 | 35 |
| Number of Positions Loaded | All | All |
| Number of Rows | 3 | 3 |
| Operating Temperature [Max] | 125 °C | 105 - 125 ░C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Pitch - Mating | 0.157 " | 0.157 " |
| Pitch - Mating | 4 mm | 4 mm |
| Row Spacing - Mating | 0.157 in | 0.157 in |
| Row Spacing - Mating | 4 mm | 4 mm |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Style | Board to Cable/Wire | Board to Cable/Wire |
| Termination | Solder | Solder |
| Voltage Rating | 250 VAC | 250 VAC |
776231 Series
CONN HEADER VERT 35POS 4MM
| Part | Number of Positions | Current Rating (Amps) | Number of Positions Loaded | Row Spacing - Mating | Row Spacing - Mating | Fastening Type | Termination | Voltage Rating | Connector Type | Number of Rows | Insulation Material | Mounting Type | Contact Shape | Contact Material | Features | Shrouding | Operating Temperature [Min] | Operating Temperature [Max] | Style | Insulation Color | Pitch - Mating | Pitch - Mating | Applications | Contact Type | Contact Finish - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 776231-5 | 35 | Varies by Wire Gauge | All | 0.157 in | 4 mm | Locking Ramp | Solder | 250 VAC | Header | 3 | Polybutylene Terephthalate (PBT), Glass Filled | Panel Mount, Through Hole | Circular | Brass | Mounting Flange, Sealed | Shrouded - 4 Wall | -40 °C | 105 ░C | Board to Cable/Wire | Blue | 0.157 " | 4 mm | Automotive, Industrial | Male Pin | |
TE Connectivity AMP Connectors 776231-1 | 35 | Varies by Wire Gauge | All | 0.157 in | 4 mm | Locking Ramp | Solder | 250 VAC | Header | 3 | Polybutylene Terephthalate (PBT), Glass Filled | Panel Mount, Through Hole | Circular | Brass | Mounting Flange, Sealed | Shrouded - 4 Wall | -40 °C | 105 ░C | Board to Cable/Wire | Black | 0.157 " | 4 mm | Automotive, Industrial | Male Pin | |
TE Connectivity AMP Connectors 1-776231-6 | 35 | Varies by Wire Gauge | All | 0.157 in | 4 mm | Locking Ramp | Solder | 250 VAC | Header | 3 | Polybutylene Terephthalate (PBT), Glass Filled | Panel Mount, Through Hole | Circular | Brass | Mounting Flange, Sealed | Shrouded - 4 Wall | -40 °C | 125 °C | Board to Cable/Wire | Orange | 0.157 " | 4 mm | Automotive, Industrial | Male Pin | Gold-Palladium |
TE Connectivity AMP Connectors 1-776231-5 | 35 | Varies by Wire Gauge | All | 0.157 in | 4 mm | Locking Ramp | Solder | 250 VAC | Header | 3 | Polybutylene Terephthalate (PBT), Glass Filled | Panel Mount, Through Hole | Circular | Brass | Mounting Flange, Sealed | Shrouded - 4 Wall | -40 °C | 125 °C | Board to Cable/Wire | Blue | 0.157 " | 4 mm | Automotive, Industrial | Male Pin | Gold-Palladium |
TE Connectivity AMP Connectors 1-776231-2 | 35 | Varies by Wire Gauge | All | 0.157 in | 4 mm | Locking Ramp | Solder | 250 VAC | Header | 3 | Polybutylene Terephthalate (PBT), Glass Filled | Panel Mount, Through Hole | Circular | Brass | Mounting Flange, Sealed | Shrouded - 4 Wall | -40 °C | 125 °C | Board to Cable/Wire | Natural | 0.157 " | 4 mm | Automotive, Industrial | Male Pin | Gold-Palladium |
