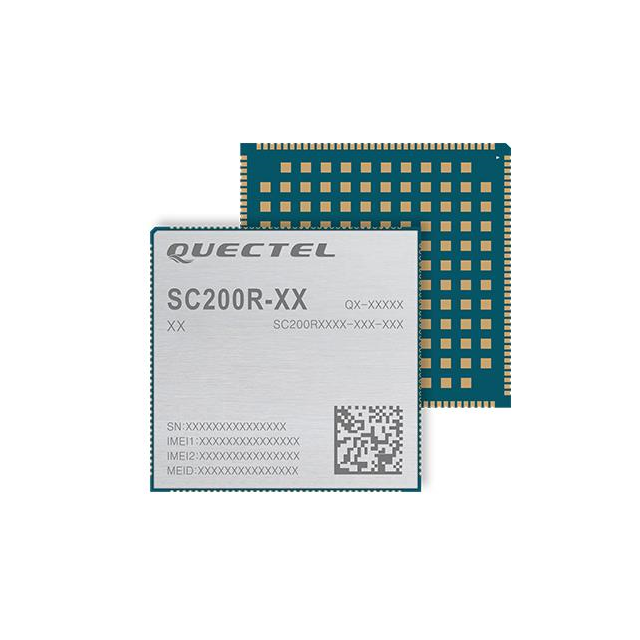

SC200RCENB-E53-UGNDA
ActiveQuectel
RF TXRX MOD BT NAV WIFISMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SC200RCENB-E53-UGNDA
ActiveQuectel
RF TXRX MOD BT NAV WIFISMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SC200RCENB-E53-UGNDA |
|---|---|
| Antenna Type | Antenna Not Included |
| Data Rate | 150 Mbps |
| Frequency | 5 GHz, 900 MHz, 2.4 GHz, 1800 MHz |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 75 ░C |
| Operating Temperature [Min] | -35 °C |
| Package / Case | Module |
| Protocol | 802.11a/b/g/n, Bluetooth v4.1, GLONASS, Bluetooth v3.0, GPS, Beidou, Bluetooth v4.2, Galileo, Bluetooth v2.1 + EDR, GNSS |
| RF Family/Standard | WiFi, Bluetooth, Navigation |
| Serial Interfaces | UART, I2C, SPI, GPIO, SDIO, ADC, I2S, USB |
| Utilized IC / Part | Qualcomm® Snapdragon QCM2150 |
| Voltage - Supply [Max] | 4.2 V |
| Voltage - Supply [Min] | 3.55 V |
SC200 Series
| Part | Protocol | Package / Case | RF Family/Standard | Operating Temperature [Min] | Operating Temperature [Max] | Antenna Type | Serial Interfaces | Mounting Type | Data Rate | Frequency | Voltage - Supply [Max] | Voltage - Supply [Min] | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Quectel | 802.11a/b/g/n Beidou Bluetooth v2.1 + EDR Bluetooth v3.0 Bluetooth v4.1 Bluetooth v4.2 Galileo GLONASS GNSS GPS | Module | Bluetooth Navigation WiFi | -35 °C | 75 ░C | Antenna Not Included | ADC GPIO I2C I2S SDIO SPI UART USB | Surface Mount | 150 Mbps | 2.4 GHz 5 GHz 850 MHz 900 MHz 1800 MHz 1900 MHz | 4.2 V | 3.55 V | |
Quectel | 802.11a/b/g/n Beidou Bluetooth v2.1 + EDR Bluetooth v3.0 Bluetooth v4.1 Bluetooth v4.2 Galileo GLONASS GNSS GPS | Module | Bluetooth Navigation WiFi | -35 °C | 75 ░C | Antenna Not Included | ADC GPIO I2C I2S SDIO SPI UART USB | Surface Mount | 150 Mbps | 2.4 GHz 5 GHz 900 MHz 1800 MHz | 4.2 V | 3.55 V | Qualcomm® Snapdragon QCM2150 |
Quectel | 802.11a/b/g/n Bluetooth v2.1 + EDR Bluetooth v3.0 Bluetooth v4.1 Bluetooth v4.2 | Module | Bluetooth WiFi | -35 °C | 75 ░C | Antenna Not Included | ADC GPIO I2C I2S SDIO SPI UART USB | Surface Mount | 150 Mbps | 2.4 GHz 5 GHz | 4.2 V | 3.55 V | Qualcomm® Snapdragon QCM2152 |
Quectel | 802.11a/b/g/n Beidou Bluetooth v2.1 + EDR Bluetooth v3.0 Bluetooth v4.1 Bluetooth v4.2 Galileo GLONASS GNSS GPS | Module | Bluetooth Navigation WiFi | -35 °C | 75 ░C | Antenna Not Included | ADC GPIO I2C I2S SDIO SPI UART USB | Surface Mount | 150 Mbps | 2.4 GHz 5 GHz 900 MHz 1800 MHz | 4.2 V | 3.55 V | Qualcomm® Snapdragon QCM2150 |
Quectel | 802.11a/b/g/n Beidou Bluetooth v2.1 + EDR Bluetooth v3.0 Bluetooth v4.1 Bluetooth v4.2 Galileo GLONASS GNSS GPS | Module | Bluetooth Navigation WiFi | -35 °C | 75 ░C | Antenna Not Included | ADC GPIO I2C I2S SDIO SPI UART USB | Surface Mount | 150 Mbps | 2.4 GHz 5 GHz | 4.2 V | 3.55 V | Qualcomm® Snapdragon QCM2150 |
Quectel | 802.11a/b/g/n Beidou Bluetooth v2.1 + EDR Bluetooth v3.0 Bluetooth v4.1 Bluetooth v4.2 Galileo GLONASS GNSS GPS | Module | Bluetooth Navigation WiFi | -35 °C | 75 ░C | Antenna Not Included | ADC GPIO I2C I2S SDIO SPI UART USB | Surface Mount | 150 Mbps | 2.4 GHz 5 GHz 850 MHz 900 MHz 1800 MHz 1900 MHz | 4.2 V | 3.55 V | Qualcomm® Snapdragon QCM2151 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 3000 | $ 64.57 | |
Description
General part information
SC200 Series
Bluetooth, Navigation, WiFi 802.11a/b/g/n, Bluetooth v2.1 + EDR, Bluetooth v3.0, Bluetooth v4.1, Bluetooth v4.2, BeiDou, Galileo, GLONASS, GPS, GNSS Transceiver Module 900MHz, 1.8GHz, 2.4GHz, 5GHz Antenna Not Included Surface Mount
