306-018-500-102
ActiveEDAC Inc.

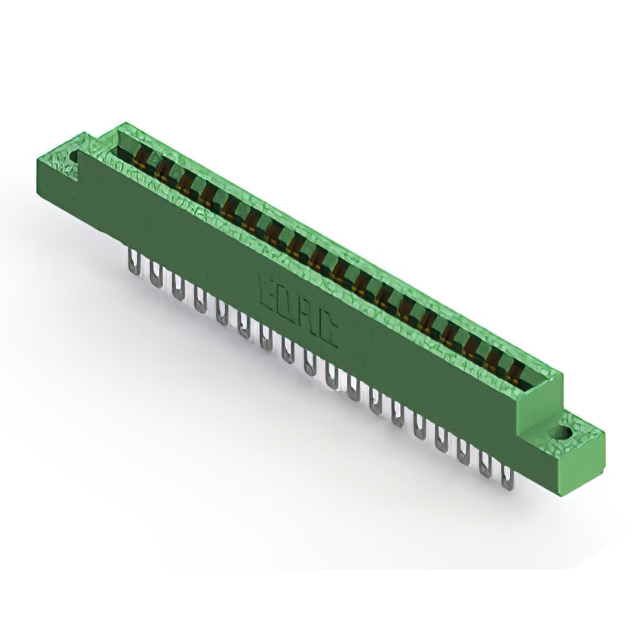

CONN EDGE DUAL FMALE 36POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
306-018-500-102
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 36POS 0.156
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 306-018-500-102 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.25 mm |
| Flange Feature [diameter] | 0.128 " |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Number of Positions | 36 |
| Number of Positions/Bay/Row [custom] | 18 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder Eyelet(s) |
| Termination Rows | 1 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 17.64 | |
| 10 | $ 13.57 | |||
| 25 | $ 12.28 | |||
| 50 | $ 11.40 | |||
| 100 | $ 10.61 | |||
| 250 | $ 9.67 | |||
| 500 | $ 9.04 | |||
| 1000 | $ 8.47 | |||
Description
General part information
306-018 Series
36 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
