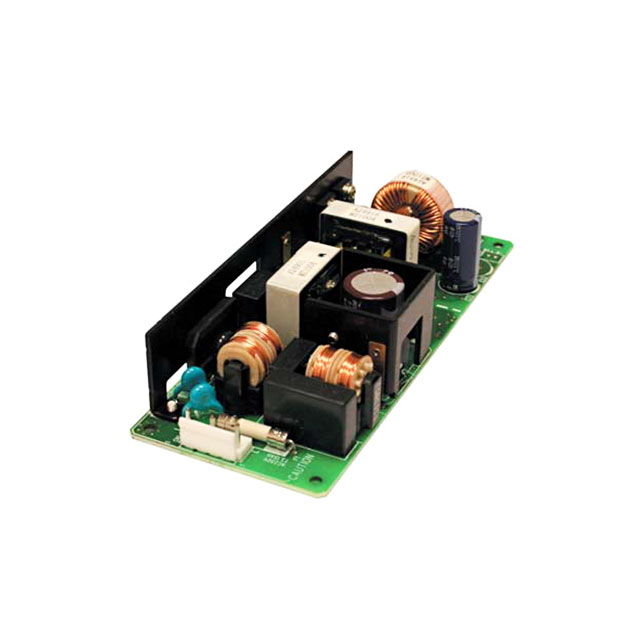

ZWS75BAF-5/A
ActiveTDK-LAMBDA
AC/DC ENCLOSED POWER SUPPLY (PSU), 1 OUTPUTS, 75 W, 5 V, 15 A
Deep-Dive with AI
Search across all available documentation for this part.
ZWS75BAF-5/A
ActiveTDK-LAMBDA
AC/DC ENCLOSED POWER SUPPLY (PSU), 1 OUTPUTS, 75 W, 5 V, 15 A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | ZWS75BAF-5/A | ZWS75BAF Series |
|---|---|---|
| Applications | ITE (Commercial) | ITE (Commercial) |
| Approval Agency | CE | CE |
| Current - Output 1 | 15 A | 1.6 - 15 A |
| Efficiency | 84 % | 78 - 88 % |
| Features | PFC, Adjustable Output, Universal Input | PFC, Adjustable Output, Universal Input, Load Sharing, DC Input Capable |
| Mounting Type | Chassis Mount | Chassis Mount |
| Number of Outputs | 1 | 1 |
| Operating Temperature [Max] | 70 °C | 70 °C |
| Operating Temperature [Min] | -10 °C | -10 °C |
| Power (Watts) | 75 W | 75 W |
| Size / Dimension [x] | 5.9 in | 5.9 in |
| Size / Dimension [x] | 150 mm | 150 mm |
| Size / Dimension [y] | 50 mm | 50 mm |
| Size / Dimension [y] | 1.97 " | 1.97 " |
| Size / Dimension [z] | 1.3 " | 1.3 " |
| Size / Dimension [z] | 33 mm | 33 mm |
| Type | Enclosed | Enclosed, Open Frame, Conformal Coated |
| Voltage - Input [Max] | 265 VAC | 265 VAC |
| Voltage - Input [Min] | 85 VAC | 85 VAC |
| Voltage - Isolation | 3000 V | 3000 V |
| Voltage - Output 1 | 5 V | 3.3 - 48 V |
ZWS75BAF Series
AC/DC ENCLOSED POWER SUPPLY (PSU), 1 OUTPUTS, 75 W, 12 V, 6.3 A
| Part | Efficiency | Number of Outputs | Current - Output 1 | Mounting Type | Approval Agency | Applications | Power (Watts) | Voltage - Isolation | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Voltage - Input [Min] | Voltage - Input [Max] | Voltage - Output 1 | Type | Operating Temperature [Min] | Operating Temperature [Max] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TDK-LAMBDA ZWS75BAF-12/A | 85 % | 1 | 6.3 A | Chassis Mount | CE | ITE (Commercial) | 75 W | 3000 V | 1.3 " | 5.9 in | 150 mm | 50 mm | 33 mm | 1.97 " | 85 VAC | 265 VAC | 12 V | Enclosed | -10 °C | 70 °C | Adjustable Output, PFC, Universal Input |
TDK-LAMBDA ZWS75BAF-5/L | 84 % | 1 | 15 A | Chassis Mount | CE | ITE (Commercial) | 75 W | 3000 V | 1.3 " | 5.9 in | 150 mm | 50 mm | 33 mm | 1.97 " | 85 VAC | 265 VAC | 5 V | Open Frame | -10 °C | 70 °C | Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input |
TDK-LAMBDA ZWS75BAF-48/L | 88 % | 1 | 1.6 A | Chassis Mount | CE | ITE (Commercial) | 75 W | 3000 V | 1.3 " | 5.9 in | 150 mm | 50 mm | 33 mm | 1.97 " | 85 VAC | 265 VAC | 48 V | Open Frame | -10 °C | 70 °C | Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input |
TDK-LAMBDA ZWS75BAF-3/CO2 | 78 % | 1 | 15 A | Chassis Mount | CE | ITE (Commercial) | 75 W | 3000 V | 1.3 " | 5.9 in | 150 mm | 50 mm | 33 mm | 1.97 " | 85 VAC | 265 VAC | 3.3 V | Conformal Coated, Open Frame | -10 °C | 70 °C | Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input |
TDK-LAMBDA ZWS75BAF-15/L | 86 % | 1 | 5 A | Chassis Mount | CE | ITE (Commercial) | 75 W | 3000 V | 1.3 " | 5.9 in | 150 mm | 50 mm | 33 mm | 1.97 " | 85 VAC | 265 VAC | 15 V | Open Frame | -10 °C | 70 °C | Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input |
TDK-LAMBDA ZWS75BAF-48/A | 88 % | 1 | 1.6 A | Chassis Mount | CE | ITE (Commercial) | 75 W | 3000 V | 1.3 " | 5.9 in | 150 mm | 50 mm | 33 mm | 1.97 " | 85 VAC | 265 VAC | 48 V | Enclosed | -10 °C | 70 °C | Adjustable Output, PFC, Universal Input |
TDK-LAMBDA ZWS75BAF-24/A | 87 % | 1 | 3.2 A | Chassis Mount | CE | ITE (Commercial) | 75 W | 3000 V | 1.3 " | 5.9 in | 150 mm | 50 mm | 33 mm | 1.97 " | 85 VAC | 265 VAC | 24 V | Enclosed | -10 °C | 70 °C | Adjustable Output, PFC, Universal Input |
TDK-LAMBDA ZWS75BAF-48/CO2 | 88 % | 1 | 1.6 A | Chassis Mount | CE | ITE (Commercial) | 75 W | 3000 V | 1.3 " | 5.9 in | 150 mm | 50 mm | 33 mm | 1.97 " | 85 VAC | 265 VAC | 48 V | Conformal Coated, Open Frame | -10 °C | 70 °C | Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input |
TDK-LAMBDA ZWS75BAF-12/CO2 | 85 % | 1 | 6.3 A | Chassis Mount | CE | ITE (Commercial) | 75 W | 3000 V | 1.3 " | 5.9 in | 150 mm | 50 mm | 33 mm | 1.97 " | 85 VAC | 265 VAC | 12 V | Conformal Coated, Open Frame | -10 °C | 70 °C | Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input |
TDK-LAMBDA ZWS75BAF-24/L | 87 % | 1 | 3.2 A | Chassis Mount | CE | ITE (Commercial) | 75 W | 3000 V | 1.3 " | 5.9 in | 150 mm | 50 mm | 33 mm | 1.97 " | 85 VAC | 265 VAC | 24 V | Open Frame | -10 °C | 70 °C | Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
ZWS75BAF Series
Enclosed AC DC Converters 1 Output 5V 85 ~ 265 VAC Input
