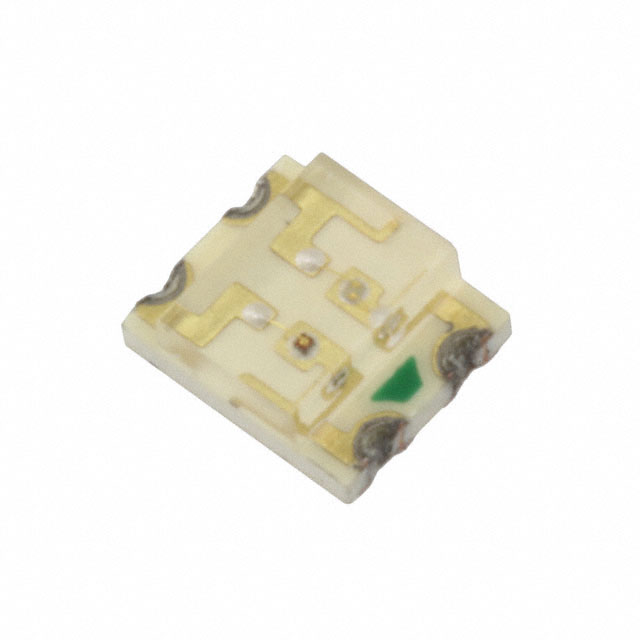

Specification	APB3227SURKZGC

Color	Green, Red
Configuration	Independent
Current - Test (Green)	20 mA
Current - Test (Red)	20 mA
Current - Test Colors	Red, Green
Height (Max)	1.1 mm
Lens Color	Colorless
Lens Length	2 mm
Lens Style	Rectangle, Flat Top
Lens Transparency	Clear
Lens Width	2.7 mm
Millicandela Rating (Green)	400 mcd
Millicandela Rating (Red)	80 mcd
Millicandela Rating Colors	Green, Red
Mounting Type	Surface Mount
Package / Case	1210 (3225 Metric)
Package Name	SMD
Size / Dimension Length	3.2 mm
Size / Dimension Width	2.7 mm
Viewing Angle	100 °
Voltage - Forward (Vf) (Typ) (Green)	3.3 V
Voltage - Forward (Vf) (Typ) (Red)	1.95 V
Voltage - Forward (Vf) (Typ) Color	Green, Red
Wavelength - Dominant (Green)	525 nm
Wavelength - Dominant (Red)	630 nm
Wavelength - Dominant Color	Green, Red
Wavelength - Peak (Green)	515 nm
Wavelength - Peak (Red)	645 nm
Wavelength - Peak Colors	Red, Green

APB3227 Series

Part	Mounting Type	Viewing Angle	Package / Case	Voltage - Forward (Vf) (Typ) Color	Voltage - Forward (Vf) (Typ) (Red)	Voltage - Forward (Vf) (Typ) (Green)	Wavelength - Peak Colors	Wavelength - Peak (Green)	Wavelength - Peak (Red)	Wavelength - Dominant Color	Wavelength - Dominant (Red)	Wavelength - Dominant (Green)	Configuration	Color	Lens Transparency	Size / Dimension Length	Size / Dimension Width	Lens Width	Lens Length	Millicandela Rating Colors	Millicandela Rating (Green)	Millicandela Rating (Red)	Current - Test (Green)	Current - Test Colors	Current - Test (Red)	Lens Color	Lens Style	Package Name	Height (Max)	Voltage - Forward (Vf) (Typ) (Blue)	Current - Test (Blue)	Wavelength - Peak (Blue)	Wavelength - Dominant (Blue)	Millicandela Rating (Blue)	Wavelength - Dominant (Primary)	Wavelength - Dominant (Secondary)	Voltage - Forward (Vf) (Typ) Options	Millicandela Rating ({{color}})	Current - Test (Orange)	Wavelength - Peak (Orange)	Wavelength - Dominant	Wavelength - Dominant (Yellow)	Millicandela Rating (Yellow)	Voltage - Forward (Vf) (Typ) (Value 1)	Voltage - Forward (Vf) (Typ) (Yellow)	Voltage - Forward (Vf) (Typ) (Value 2)	Wavelength - Peak (Yellow)	Current - Test
Kingbright APB3227SURKZGC	Surface Mount	100 °	1210 (3225 Metric)	Green Red	1.95 V	3.3 V	Green Red	515 nm	645 nm	Green Red	630 nm	525 nm	Independent	Green Red	Clear	3.2 mm	2.7 mm	2.7 mm	2 mm	Green Red	400 mcd	80 mcd	20 mA	Green Red	20 mA	Colorless	Flat Top Rectangle	SMD	1.1 mm
Kingbright APB3227SURKCGKC	Surface Mount	140 °	1210 (3225 Metric)	Green Red	1.95 V	2.1 V	Green Red	574 nm	645 nm	Green Red	630 nm	570 nm	Independent	Green Red	Clear	3.2 mm	2.7 mm	2.7 mm	2 mm	Green Red	55 mcd	80 mcd	20 mA	Green Red	20 mA	Colorless	Flat Top Rectangle	SMD	1.1 mm
Kingbright APB3227ZGQBDC	Surface Mount	100 °	1210 (3225 Metric)	Blue Green		3.3 V	Blue Green	515 nm		Blue Green		525 nm	Independent	Blue Green	Clear	3.2 mm	2.7 mm	2.7 mm	2 mm	Blue Green	400 mcd		20 mA	Blue Green		Colorless	Flat Top Rectangle	SMD	1.1 mm	3.3 V	20 mA	460 nm	465 nm	100 mcd
Kingbright APB3227SURKZGKC	Surface Mount	100 °	1210 (3225 Metric)	Green Red	1.95 V	3.3 V	Green Red	515 nm	645 nm	Green Red	630 nm	525 nm	Independent	Green Red	Clear	3.2 mm	2.7 mm	2 mm	2.7 mm	Green Red	350 mcd	250 mcd	20 mA	Green Red	20 mA	Colorless	Flat Top Rectangle	4-SMD	1.2 mm
Kingbright APB3227ZGKQBDC	Surface Mount	100 °	1210 (3225 Metric)	Blue Green		3.3 V	Blue Green	515 nm		Blue Green		525 nm	Independent	Blue Green	Clear	3.2 mm	2.7 mm	2 mm	2.7 mm	Blue Green	350 mcd		20 mA	Blue Green		Colorless	Flat Top Rectangle	SMD	1.1 mm	3.3 V	20 mA	460 nm	465 nm	100 mcd
Kingbright APB3227SEKCGKC	Surface Mount	100 °	1210 (3225 Metric)				Green Orange	574 nm					Independent	Green Orange	Clear	3.2 mm	2.7 mm	2.7 mm	2 mm	Green Orange	55 mcd		20 mA	Green Orange		Colorless	Flat Top Rectangle	SMD	1.1 mm						570 nm	601 nm	2.1V Green 2.1V Orange	180 mcd	20 mA	610 nm
Kingbright APB3227SYKCGKC	Surface Mount	100 °	1210 (3225 Metric)	Green Yellow		2.1 V	Green Yellow	574 nm		Green Yellow		570 nm	Independent	Green Yellow	Clear	3.2 mm	2.7 mm	2.7 mm	2 mm	Green Yellow	55 mcd		20 mA	Green Yellow		Colorless	Flat Top Rectangle	SMD	1.1 mm						570 nm	590 nm					570nm Green 590nm Yellow	590 nm	150 mcd	2.1 V	2 V	2 V	590 nm	20 mA
