Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1762800 | MDSTB Series |
|---|---|---|
| Color | Green | Green, Gray |
| Contact Mating Finish | Tin | Tin |
| Contact Tail Length | 3.5 mm | 3.5 mm |
| Contact Tail Length | 0.138 in | 0.138 in |
| Current - IEC | 10 A | 10 A |
| Features | - | Mating Flange, Interlocking (Side) |
| Header Orientation | 90°, Right Angle | 90°, Right Angle |
| Housing Material | Polyamide (PA), Nylon | Polybutylene Terephthalate (PBT), Polyamide (PA), Nylon |
| Insulation Height | 1.122 in | 0.933 - 1.122 in |
| Insulation Height | 28.5 mm | 23.7 - 28.5 mm |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole | Through Hole |
| Number of Levels | 2 | 2 |
| Number of Positions | 26 | 8 - 26 |
| Pitch [x] | 5 mm | 5 mm |
| Pitch [x] | 0.197 in | 0.197 in |
| Positions Per Level | 13 | 4 - 13 |
| Termination Style | Solder | Solder |
| Type | Header, Male Pins, Shrouded (4 Side) | Header, Male Pins, Shrouded (4 Side), Header, Male Pins, Shrouded (2 Side) |
| Voltage - IEC | 630 V | 250 - 630 V |
| Voltage - UL | 300 V | 300 V |

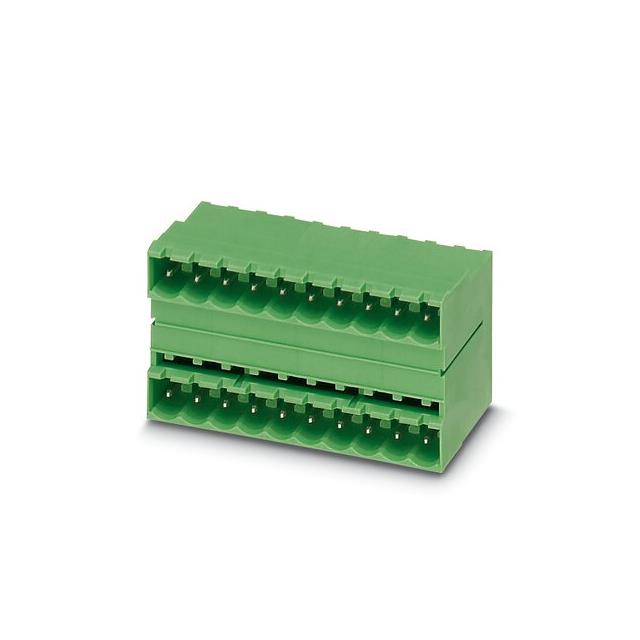

MDSTB Series
Pluggable Terminal Blocks 4 Pos 5mm pitch Through Hole Header
| Part | Number of Levels | Mounting Type | Positions Per Level | Material Flammability Rating | Insulation Height | Insulation Height | Pitch [x] | Pitch [x] | Termination Style | Header Orientation | Voltage - IEC | Number of Positions | Current - IEC | Color | Contact Mating Finish | Features | Housing Material | Contact Tail Length | Contact Tail Length | Voltage - UL | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 1846726 | 2 | Through Hole | 5 | UL94 V-0 | 0.933 in | 23.7 mm | 5 mm | 0.197 in | Solder | 90°, Right Angle | 400 V | 10 | 10 A | Green | Tin | Mating Flange | Polybutylene Terephthalate (PBT) | 3.5 mm | 0.138 in | 300 V | Header, Male Pins, Shrouded (4 Side) |
Phoenix Contact 1762800 | 2 | Through Hole | 13 | UL94 V-0 | 1.122 in | 28.5 mm | 5 mm | 0.197 in | Solder | 90°, Right Angle | 630 V | 26 | 10 A | Green | Tin | Polyamide (PA), Nylon | 3.5 mm | 0.138 in | 300 V | Header, Male Pins, Shrouded (4 Side) | |
Phoenix Contact 1726444 | 2 | Through Hole | 4 | 0.933 in | 23.7 mm | 5 mm | 0.197 in | Solder | 90°, Right Angle | 250 V | 8 | 10 A | Gray | Tin | Interlocking (Side) | Header, Male Pins, Shrouded (2 Side) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
MDSTB Series
Pluggable Terminal Blocks 4 Pos 5mm pitch Through Hole Header
