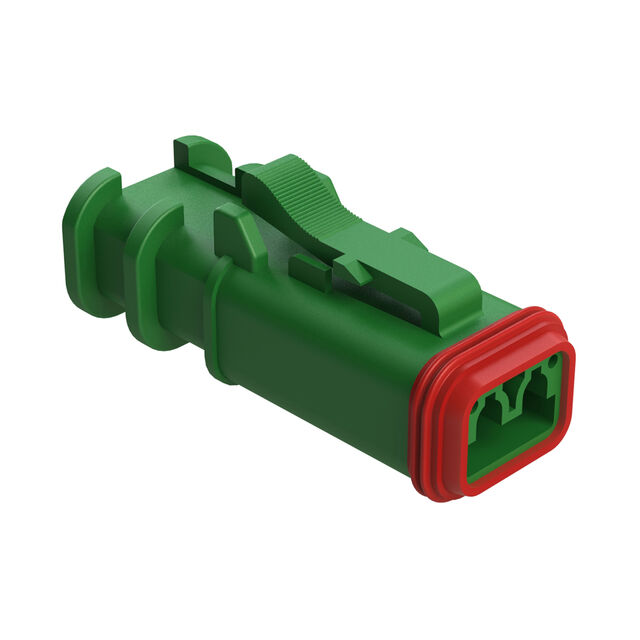

AT06-2S-OMRDGRN

Active

Amphenol Sine Systems Corp

2 POSITION OVERMOLDED PLUG, SOCK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AT06-2S-OMRDGRN

Active

Amphenol Sine Systems Corp

2 POSITION OVERMOLDED PLUG, SOCK

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AT06-2S-OMRDGRN

Color	Green
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Features	Sealed
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Mounting Type	Free Hanging (In-Line)
Number of Positions	2
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C

AT06-2S Series

Part	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Number of Positions	Note	Fastening Type	Mounting Type	Color	Contact Type	Number of Rows	Features	Contact Termination	Wire Gauge [Min]	Wire Gauge [Max]	Wire Type	Cable Termination
Amphenol Sine Systems Corp AT06-2S-BLU	Thermoplastic	-55 °C	125 °C	Plug	2	Contacts Not Included	Latch Lock	Free Hanging (In-Line)	Blue	Female Socket	1	Sealed	Crimp
Amphenol Sine Systems Corp AT06-2S-KIT01				Plug	2		Latch Lock	Free Hanging (In-Line)	Gray	Female Socket	1	Wedge Lock		16 AWG	18 AWG	Discrete	Crimp
Amphenol Sine Systems Corp AT06-2S-LED24K1	Thermoplastic	-55 °C	125 °C	Plug	2	Contacts Not Included	Latch Lock	Free Hanging (In-Line)	Black	Female Socket	1	LED	Crimp
Amphenol Sine Systems Corp AT06-2S-LED12V01-OMC	Polycarbonate (PC)	-40 °C	85 °C	Plug	2		Latch Lock	Free Hanging (In-Line)	Natural	Female Socket	1	IP68 IP69K LED Sealed	Crimp
Amphenol Sine Systems Corp AT06-2S-OMRDGRN	Polyamide (PA66) Nylon 6/6 Glass Filled	-55 °C	125 °C	Plug	2		Latch Lock	Free Hanging (In-Line)	Green	Female Socket	1	Sealed	Crimp
Amphenol Sine Systems Corp AT06-2S-OMRDBLU	Polyamide (PA66) Nylon 6/6 Glass Filled	-55 °C	125 °C	Plug	2		Latch Lock	Free Hanging (In-Line)	Blue	Female Socket	1	Sealed	Crimp
Amphenol Sine Systems Corp AT06-2S-MM03	Thermoplastic	-55 °C	125 °C			Contacts Not Included
Amphenol Sine Systems Corp AT06-2S-LED24VR1-OM	Polycarbonate (PC)	-40 °C	85 °C	Plug	2		Latch Lock	Free Hanging (In-Line)	Natural	Female Socket	1	IP67/IP69K LED Sealed	Crimp
Amphenol Sine Systems Corp AT06-2S-LED24V01-OMC	Polycarbonate (PC)	-40 °C	85 °C	Plug	2		Latch Lock	Free Hanging (In-Line)	Natural	Female Socket	1	IP68 IP69K LED Sealed	Crimp
Amphenol Sine Systems Corp AT06-2S-LED1230	Thermoplastic	-55 °C	125 °C	Plug	2	Contacts Not Included	Latch Lock	Free Hanging (In-Line)	Gray	Female Socket	1	Cap (Cover) LED Sealed Strain Relief	Crimp

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 2.07
		10	$ 1.80
		25	$ 1.73
		50	$ 1.69
		100	$ 1.61
		250	$ 1.46
		500	$ 1.34
		1000	$ 1.15
		2500	$ 1.07

Description

General part information

AT06-2S Series

2 Rectangular Connectors - Housings Plug Green
