Technical Specifications
Parameters and characteristics for this part
| Specification | STEVAL-ISB009V1 |
|---|---|
| Contents | Board(s) |
| Embedded | False |
| Function | Battery Monitor |
| Primary Attributes | Voltage, Current, Temperature |
| Type | Power Management |
| Utilized IC / Part | STC3100 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
STEVAL-ISB009V1 Series

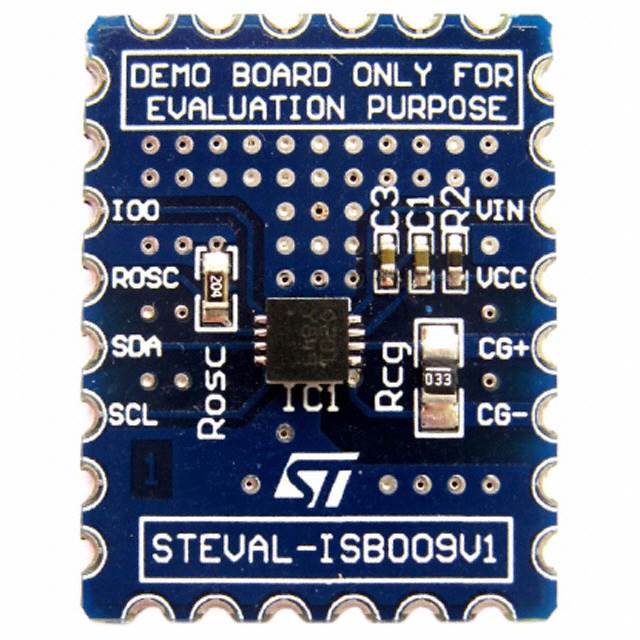

The STEVAL-ISB009V1 demonstration board, based on the STC3100, is able to monitor the critical parameters of a single-cell Li-Ion battery (voltage, temperature, and current) and includes hardware functions to implement a gas-gauge for battery charge monitoring, based on a programmable 12-bit to 14-bit A/D converter.
The battery current can be up to 2.5 A and the accumulator system provides a capacity up to +/-7000 mAh with a resolution of 0.2 mAh.
The device is programmable through an I2C interface.
