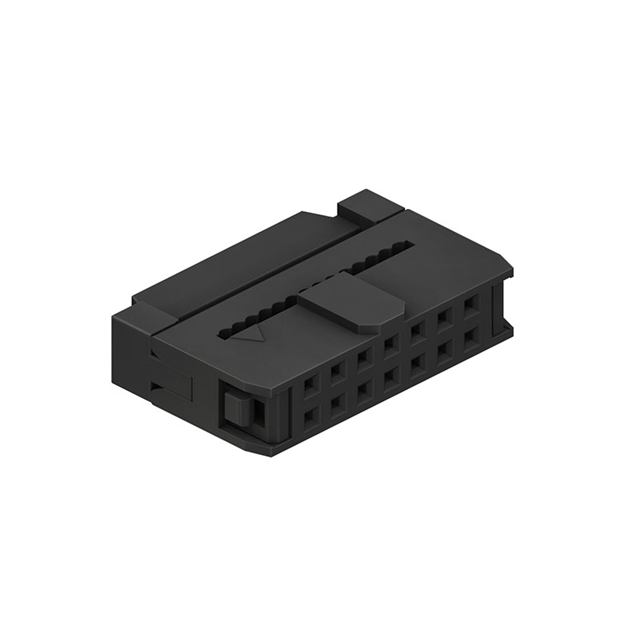

3130-14-0103-00

Active

CnC Tech, LLC

CONN SOCKET 14POS IDC GOLD

Search across all available documentation for this part.

Active

CnC Tech, LLC

CONN SOCKET 14POS IDC GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	3130-14-0103-00

Cable Termination	IDC
Connector Type	Socket
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Type	Female Socket
Features	Feed Through, Polarizing Key, Strain Relief
Mounting Type	Free Hanging (In-Line)
Number of Positions	14
Number of Rows	2
Pitch [x]	0.079 in
Pitch [x]	2 mm
Row Spacing	2 mm
Row Spacing	0.079 in
Wire Type	Ribbon Cable

Part	Contact Finish Thickness	Row Spacing	Row Spacing	Connector Type	Pitch [x]	Pitch [x]	Contact Finish	Contact Type	Number of Rows	Number of Positions	Mounting Type	Wire Type	Cable Termination	Features
CnC Tech, LLC 3130-14-0103-00	Flash	2 mm	0.079 in	Socket	0.079 in	2 mm	Gold	Female Socket	2	14	Free Hanging (In-Line)	Ribbon Cable	IDC	Feed Through Polarizing Key Strain Relief
CnC Tech, LLC 3130-14-0102-00	Flash	2 mm	0.079 in	Socket	0.079 in	2 mm	Gold	Female Socket	2	14	Free Hanging (In-Line)	Ribbon Cable	IDC	Feed Through Polarizing Key
CnC Tech, LLC 3130-14-0101-00	Flash	2 mm	0.079 in	Socket	0.079 in	2 mm	Gold	Female Socket	2	14	Free Hanging (In-Line)	Ribbon Cable	IDC	Feed Through
CnC Tech, LLC 3130-14-0104-00	Flash	2 mm	0.079 in	Socket	0.079 in	2 mm	Gold	Female Socket	2	14	Free Hanging (In-Line)	Ribbon Cable	IDC	Feed Through Strain Relief

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

14 Position Rectangular Socket Connector IDC Gold
