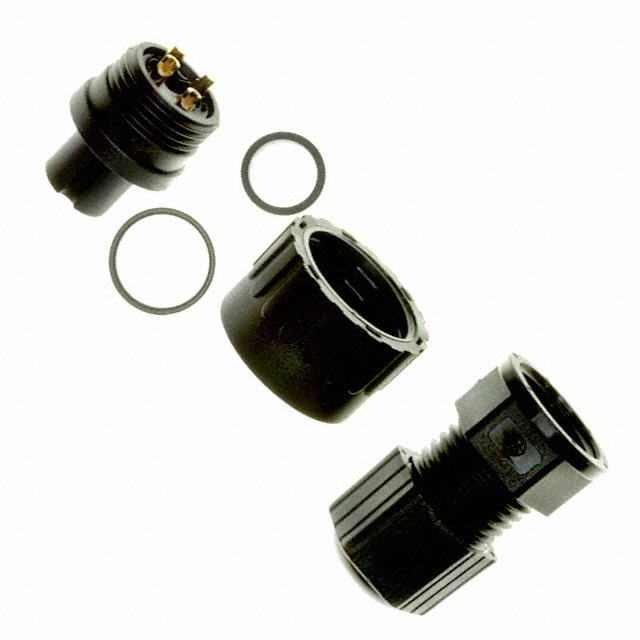

A-P04BFFA-S180-WP

Obsolete

Assmann WSW Components

CONN PLUG FMALE 4P GOLD SLDR CUP

Search across all available documentation for this part.

Obsolete

Assmann WSW Components

CONN PLUG FMALE 4P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	A-P04BFFA-S180-WP

Backshell Material, Plating	Nylon, Polyamide (PA), Glass Filled
Color	Black
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	12 A
Features	Coupling Nut, Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Free Hanging (In-Line)
Number of Positions [custom]	1
Number of Positions [custom]	3
Number of Positions [custom]	4
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shielding	Unshielded

Part	Current Rating (Amps)	Connector Type	Mounting Type	Shell Material	Primary Material	Contact Finish - Mating	Color	Features	Backshell Material, Plating	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Orientation	Ingress Protection	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Shielding
Assmann WSW Components A-P04BFFA-S180-WP	12 A	Female Sockets Plug	Free Hanging (In-Line)	Glass Filled Nylon Polyamide (PA)	Plastic	Gold	Black	Backshell Coupling Nut	Glass Filled Nylon Polyamide (PA)	Copper Alloy	-40 °C	105 ░C	Keyed	IP67 - Dust Tight Waterproof	1	3	4	Unshielded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

4 (3 Power + PE) Position Circular Connector Plug, Female Sockets Solder Cup
