TE Connectivity Raychem Cable Protection

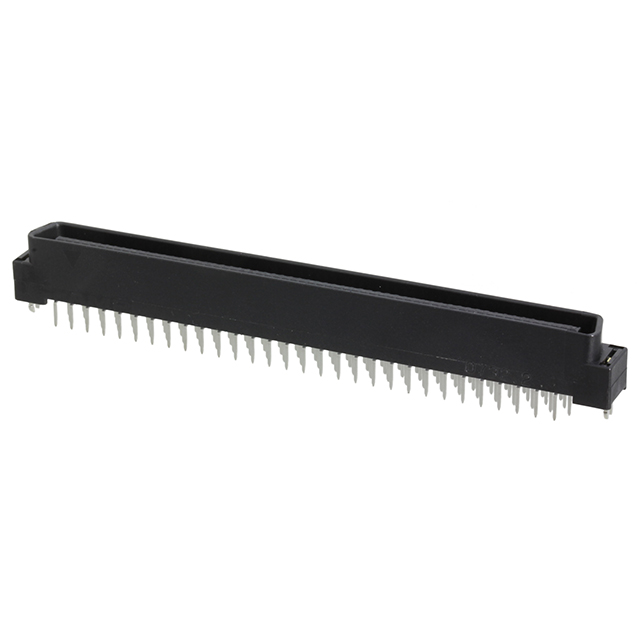

CONN BTB PLUG 120POS VERT SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet CHAMP Series I Appl Spec

6-5175473-1

Active

TE Connectivity Raychem Cable Protection

CONN BTB PLUG 120POS VERT SOLDER

Deep-Dive with AI

DocumentsDatasheet CHAMP Series I Appl Spec

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	6-5175473-1

Connector Style	Center Strip Contacts
Connector Type	Plug
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Mounting Type	Through Hole
Number of Positions	120
Number of Rows	2
Termination	Solder
Type	Board to Board

CHAMP .050 Series I Series

Board to Board & Mezzanine Connectors AMP FH REC V 120P H-9 SIF

Part	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Connector Style	Connector Type	Type	Mounting Type	Termination	Number of Rows	Pitch [x]	Pitch [x]	Features	Mated Stacking Heights	Height Above Board	Height Above Board	Contact Finish Thickness	Height Above Board
TE Connectivity Raychem Cable Protection 5-5175472-1	20	0.76 Ám	30 Áin	Gold	Center Strip Contacts	Plug	Board to Board High Density	Through Hole Right Angle	Solder	2
TE Connectivity Raychem Cable Protection 5176376-3	80	0.3 Ám	11.8 Áin	Gold		Receptacle Outer Shroud Contacts		Through Hole		2	0.05 in	1.27 mm	Board Guide	16 mm	0.531 in	13.49 mm
TE Connectivity Raychem Cable Protection 1734037-4	40			Gold	Outer Shroud Contacts	Receptacle	Board to Board	Through Hole Right Angle	Solder	2							Flash
TE Connectivity Raychem Cable Protection 3-5175474-9	80	0.5 µm	19.7 µin	Gold	Outer Shroud Contacts	Receptacle	Board to Board	Through Hole Right Angle	Solder	2
TE Connectivity Raychem Cable Protection 3-5175474-6
TE Connectivity Raychem Cable Protection 5175475-5	40	0.203 çm	8 çin	Gold	Outer Shroud Contacts	Receptacle	Board to Board High Density	Through Hole	Solder	2
TE Connectivity Raychem Cable Protection 5179656-2	60	0.3 Ám	11.8 Áin	Gold				Surface Mount		2	0.05 in	1.27 mm				0.275 in		6.99 mm
TE Connectivity Raychem Cable Protection 1-1734100-8	180			Gold	Center Strip Contacts	Plug	Board to Board	Through Hole	Solder	2							Flash
TE Connectivity Raychem Cable Protection 6-5175473-1	120	0.76 Ám	30 Áin	Gold	Center Strip Contacts	Plug	Board to Board	Through Hole	Solder	2
TE Connectivity Raychem Cable Protection 5176379-1	40	0.3 Ám	11.8 Áin	Gold		Receptacle Outer Shroud Contacts		Through Hole Right Angle		2	0.05 in	1.27 mm
