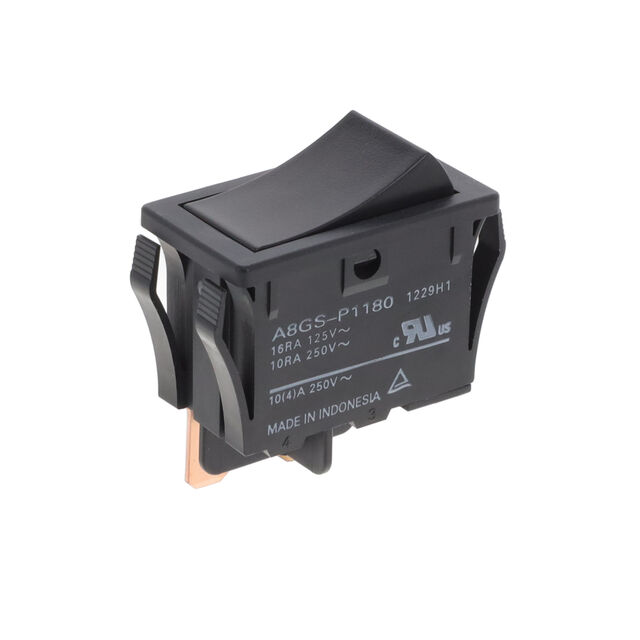

A8GS-P1180

Active

Omron Electronics Inc-EMC Div

SWITCH ROCKER SPST 16A 125V

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

SWITCH ROCKER SPST 16A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	A8GS-P1180

Actuator Marking	No Marking
Actuator Type	Concave (Curved)
Approval Agency	cULus, EN, UL
Circuit	SPST
Color - Actuator/Cap	Black
Current Rating (Amps)	16 A
Electrical Life	10000 Cycles
Mechanical Life	30000 Steps
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max] [custom]	55 °C
Operating Temperature [Min] [custom]	-10 °C
Panel Cutout Dimensions [x]	27.7 mm
Panel Cutout Dimensions [y]	15.2 mm
Switch Function	On-Off
Termination Style	Quick Connect - 0.187" (4.7mm)
Voltage Rating - AC	125 V

Part	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Termination Style	Approval Agency	Actuator Marking	Color - Actuator/Cap	Mounting Type	Switch Function	Current Rating (Amps)	Mechanical Life	Electrical Life	Circuit	Voltage Rating - AC	Actuator Type	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Features
Omron Electronics Inc-EMC Div A8GS-P1180	15.2 mm	27.7 mm	Quick Connect - 0.187" (4.7mm)	cULus EN UL	No Marking	Black	Panel Mount Snap-In	On-Off	16 A	30000 Steps	10000 Cycles	SPST	125 V	Concave (Curved)	55 °C	-10 °C
Omron Electronics Inc-EMC Div A8GS-P1185	15.2 mm	27.7 mm	Quick Connect - 0.187" (4.7mm)	cULus EN UL	No Marking	Black	Panel Mount Snap-In	On-Off	16 A	30000 Steps	10000 Cycles	SPST	125 V	Concave (Curved)	55 °C	-10 °C	Remote Reset Function

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rocker Switch SPST 16A (AC) 125 V Panel Mount, Snap-In
