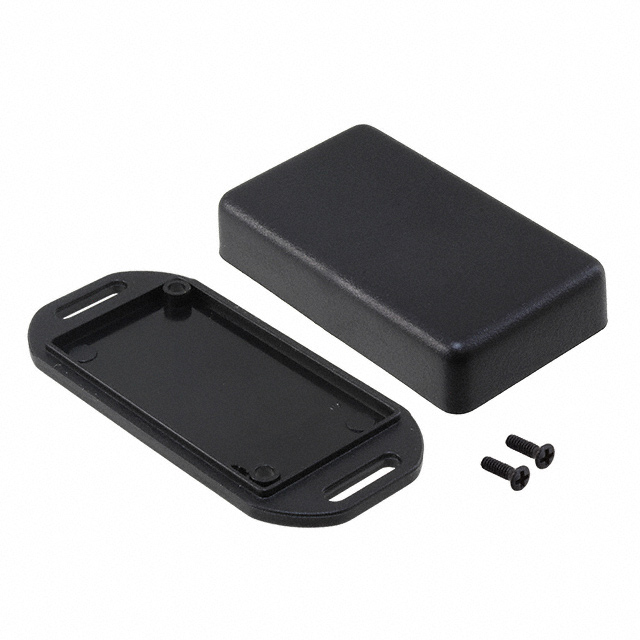

1551JFLBK

Active

Hammond Manufacturing

BOX ABS BLACK 2.36"L X 1.38"W

Deep-Dive with AI

Search across all available documentation for this part.

Documents1551 Series Datasheet

1551JFLBK

Active

Hammond Manufacturing

BOX ABS BLACK 2.36"L X 1.38"W

Deep-Dive with AI

Documents1551 Series Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1551JFLBK

Area (L x W)	21 cm²
Area (L x W)	3.25 in²
Color	Black
Container Type	Box
Design	Cover Included
Features	Mounting Flange, PCB Supports
Height [z]	0.591 in
Height [z]	15.01 mm
Material	ABS
Material Flammability Rating	UL94 HB
Ratings	IP54
Size / Dimension [x]	2.362 in
Size / Dimension [x]	59.99 mm
Size / Dimension [y]	35 mm
Size / Dimension [y]	1.378 "
Thickness	0.079 in
Thickness	2.01 mm

1551 Series

...

Part	Features	Material	Container Type	Area (L x W) [custom]	Area (L x W) [custom]	Color	Height [diameter]	Height [diameter]	Thickness	Thickness	Ratings	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Design	Material Flammability Rating	Height [z]	Height [z]	Area (L x W)	Area (L x W)	Area (L x W) [custom]	Area (L x W) [custom]	Weight	Weight	Size / Dimension [y]	Size / Dimension [x]
Hammond Manufacturing 1551PTBU	PCB Supports	ABS	Box	16 cm²	2.48 in²	Translucent - Blue	0.787 in	19.99 mm	0.079 in	2.01 mm	IP54	1.575 in	1.575 in	40 mm	40 mm	Cover Included Hand Held	UL94 HB
Hammond Manufacturing 1551ATSK		ABS	Box			Translucent - Smoke			0.07 in	1.78 mm	IP54	0.79 "	1.38 "	35.05 mm	20.07 mm	Split Sides	UL94 HB	0.61 in	15.49 mm	1.08 in²	7 cm²
Hammond Manufacturing 1551V3WH		ABS	Box			White			0.1 in	2.54 mm	IP30						UL94 HB	0.8 in	20.32 mm			36 cm²	5.58 in²
Hammond Manufacturing 1551RFLBK	Mounting Flange PCB Supports	ABS	Box			Black	0.787 in	19.99 mm	0.079 in	2.01 mm	IP54	1.969 in	1.969 in	50 mm	50 mm	Cover Included	UL94 HB			3.88 in²	25 cm²
Hammond Manufacturing 1551CGY		ABS	Box			Gray			0.07 in	1.78 mm	IP54	1.18 in	2.56 in	65.02 mm	29.97 mm	Split Sides	UL94 HB	0.61 in	15.49 mm	3.02 in²	19.5 cm²
Hammond Manufacturing 1551JGY	PCB Supports	ABS	Box			Gray			0.079 in	2.01 mm	IP54	1.378 "	2.362 in	59.99 mm	35 mm	Cover Included Hand Held	UL94 HB	0.591 in	15.01 mm	3.25 in²	21 cm²
Hammond Manufacturing 1551HBK	PCB Supports	ABS	Box			Black	0.787 in	19.99 mm	0.079 in	2.01 mm	IP54	1.378 "	2.362 in	59.99 mm	35 mm	Cover Included Hand Held	UL94 HB			3.25 in²	21 cm²			0.044 lb	19.96 g
Hammond Manufacturing 1551BCLR		ABS	Box			Translucent - Clear			0.07 in	1.78 mm	IP54			50.04 mm	24.89 mm	Split Sides	UL94 HB	0.61 in	15.49 mm	1.94 in²	12.5 cm²					0.98 "	1.97 "
Hammond Manufacturing 1551JFLBK	Mounting Flange PCB Supports	ABS	Box			Black			0.079 in	2.01 mm	IP54	1.378 "	2.362 in	59.99 mm	35 mm	Cover Included	UL94 HB	0.591 in	15.01 mm	3.25 in²	21 cm²
Hammond Manufacturing 1551FTBU	PCB Supports	ABS	Box			Translucent - Blue			0.079 in	2.01 mm	IP54	1.378 "	1.969 in	50 mm	35 mm	Cover Included Hand Held	UL94 HB	0.591 in	15.01 mm	2.71 in²	17.5 cm²

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 2.95
		5	$ 2.69
		10	$ 2.44
		25	$ 2.18
		50	$ 2.05
		100	$ 1.92
		250	$ 1.80
		500	$ 1.76
		1000	$ 1.73

Description

General part information

1551 Series

Box ABS Black Cover Included 2.362" L x 1.378" W (59.99mm x 35.00mm) X 0.591" (15.01mm)
