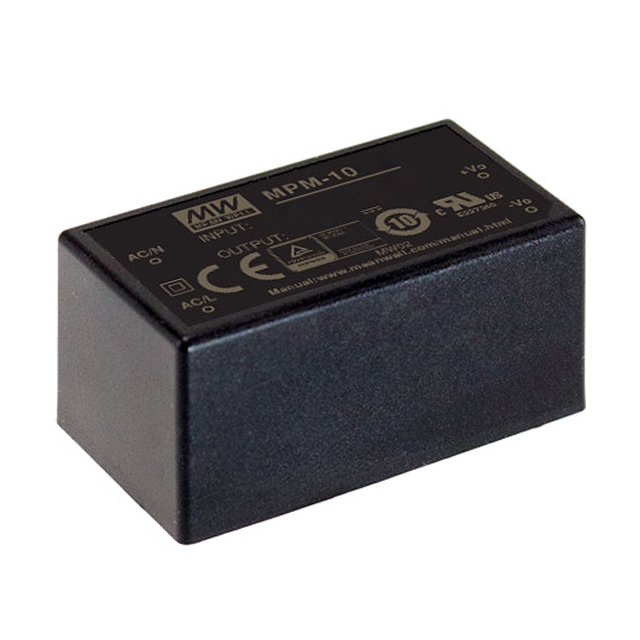

MPM-10 Series

Part	Load Regulation (Percent)	Line Regulation	Efficiency	Voltage - Output 1	Package / Case	Size / Dimension Length	Size / Dimension Width	Size / Dimension Height	Current - Output (Max)	Approval Agency	Number of Outputs	Power (Watts)	Type	Features	Mounting Type	Applications	Voltage - Input (AC) Minimum	Voltage - Input (AC) Maximum	Operating Temperature (Max)	Operating Temperature (Min)
MEAN WELL USA Inc. MPM-10-15	0.5 %	0.3 %	83 %	15 V	4-DIP Module	1.8 in	1 in	0.85 in	670 mA	CB CE cURus TUV	1	10 W	Enclosed	Universal Input	Through Hole	Medical	80 V	264 V	85 °C	-30 °C
MEAN WELL USA Inc. MPM-10-12	0.5 %	0.3 %	83 %	12 V	4-DIP Module	1.8 in	1 in	0.85 in	850 mA	CB CE cURus TUV	1	10 W	Enclosed	Universal Input	Through Hole	Medical	80 V	264 V	85 °C	-30 °C
MEAN WELL USA Inc. MPM-10-24	0.5 %	0.3 %	84 %	24 V	4-DIP Module	1.8 in	1 in	0.85 in	420 mA	CB CE cURus TUV	1	10 W	Enclosed	Universal Input	Through Hole	Medical	80 V	264 V	85 °C	-30 °C
MEAN WELL USA Inc. MPM-10-5	0.5 %	0.3 %	81 %	5 V	4-DIP Module	1.8 in	1 in	0.85 in	2 A	CB CE cURus TUV	1	10 W	Enclosed	Universal Input	Through Hole	Medical	80 V	264 V	85 °C	-30 °C
MEAN WELL USA Inc. MPM-10-3.3	0.5 %	0.3 %	78 %	3.3 V	4-DIP Module	1.8 in	1 in	0.85 in	2.5 A	CB CE cURus TUV	1	8.3 W	Enclosed	Universal Input	Through Hole	Medical	80 V	264 V	85 °C	-30 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

3D models and CAD resources for this part

Technical documentation and resources
