ISNF-0239-D202

Active

SCHURTER Inc.

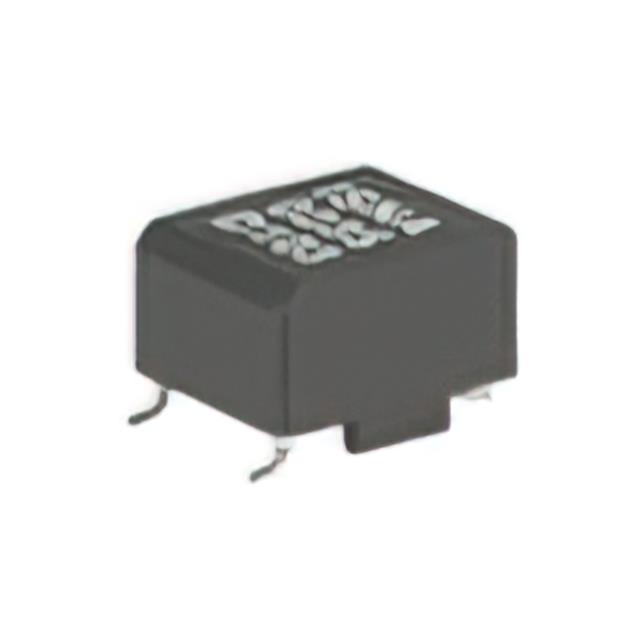

ISNF PULSE TRANSFORMER SMD 0.17A

Search across all available documentation for this part.

Active

SCHURTER Inc.

ISNF PULSE TRANSFORMER SMD 0.17A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 7.36
	Digi-Reel®	1	$ 7.36
	Tape & Reel (TR)	280	$ 3.64

General part information

1.6mH SCR and Triac Trigger (Encapsulated) Pulse Transformer 1:1:1 Surface Mount

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	ISNF-0239-D202	ISNF Series

ET (Volt-Time)	350 VµS	150 - 350 VµS
Height - Seated (Max)	14 mm	14 mm
Height - Seated (Max)	-	0.433 - 0.532 "
Height - Seated (Max)	-	11 - 13.5 mm
Height - Seated (Max) [Max]	0.551 "	0.551 "
Inductance	1.6 mH	1.4 - 1.6 mH
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [custom]	100 °C, -25 °C	-25 - 100 °C
Size / Dimension [x]	0.878 in	0.512 - 0.878 in
Size / Dimension [x]	22.3 mm	0.701 - 22.3 in
Size / Dimension [y]	0.894 in	0.598 - 0.894 in
Size / Dimension [y]	22.7 mm	0.717 - 22.7 mm
Transformer Type	SCR and Triac Trigger (Encapsulated)	SCR and Triac Trigger (Encapsulated)
Turns Ratio - Primary:Secondary [custom]	1	1
Turns Ratio - Primary:Secondary [custom]	1	1
Turns Ratio - Primary:Secondary [custom]	1	1
Weight	9.97 g	8.22 - 9.97 g
Weight	0.352 oz	0.29 - 0.352 oz

ISNF PULSE TRANSFORMER SMD 0.1A

Part	Turns Ratio - Primary:Secondary [custom]	Turns Ratio - Primary:Secondary [custom]	Turns Ratio - Primary:Secondary [custom]	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Operating Temperature [custom]	Inductance	ET (Volt-Time)	Weight	Weight	Transformer Type	Height - Seated (Max)	Height - Seated (Max) [Max]	Size / Dimension [x]	Size / Dimension [y]
SCHURTER Inc. ISNF-0249-D101	1	1	1	Surface Mount	0.701 in, 17.8 mm	0.717 in, 18.2 mm	0.532 "	13.5 mm	-25 °C, 100 °C	1.4 mH	250 VµS	9.12 g	0.32 oz	SCR and Triac Trigger (Encapsulated)
SCHURTER Inc. ISNF-0239-D202	1	1	1	Surface Mount	22.3 mm	22.7 mm			-25 °C, 100 °C	1.6 mH	350 VµS	9.97 g	0.352 oz	SCR and Triac Trigger (Encapsulated)	14 mm	0.551 "	0.878 in	0.894 in
SCHURTER Inc. ISNF-0135-D101	1	1	1	Surface Mount	13 mm	15.2 mm	0.433 in	11 mm	-25 °C, 100 °C		150 VµS	8.22 g	0.29 oz	SCR and Triac Trigger (Encapsulated)			0.512 in	0.598 in
