820-22-012-30-001101

Active

Mill-Max Manufacturing Corp.

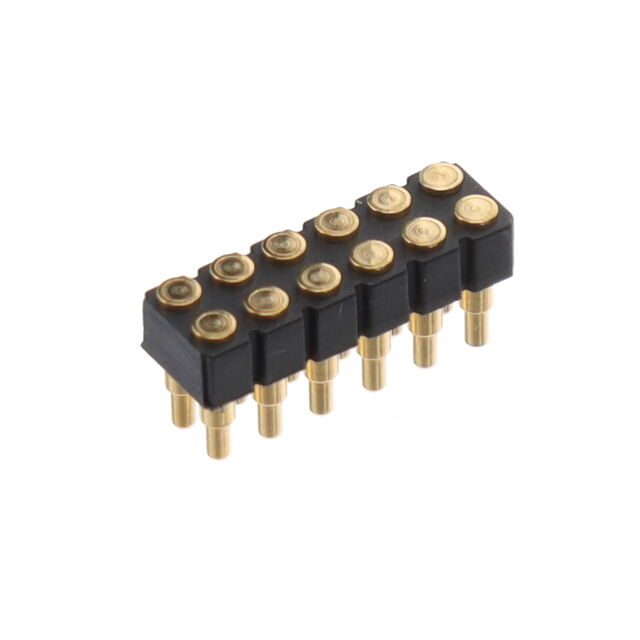

CONN SPRING PISTON 12POS SMD

Search across all available documentation for this part.

Active

Mill-Max Manufacturing Corp.

CONN SPRING PISTON 12POS SMD

Technical Specifications

Parameters and characteristics for this part

Part	Pitch [x]	Pitch [x]	Connector Type	Contact Finish	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Row Spacing [x]	Row Spacing	Number of Contacts	Material	Number of Rows
Mill-Max Manufacturing Corp. 820-22-048-30-001101	2.54 mm	0.1 in	Piston	Gold	Surface Mount	10 Áin	0.25 Ám	0.1 in	2.54 mm	48	Copper Alloy	2
Mill-Max Manufacturing Corp. 820-22-054-30-001101	2.54 mm	0.1 in	Piston	Gold	Surface Mount	10 Áin	0.25 Ám	0.1 in	2.54 mm	54	Copper Alloy	2
Mill-Max Manufacturing Corp. 820-22-012-30-001101	2.54 mm	0.1 in	Piston	Gold	Surface Mount	10 Áin	0.25 Ám	0.1 in	2.54 mm	12	Copper Alloy	2
Mill-Max Manufacturing Corp. 820-22-042-30-001101	2.54 mm	0.1 in	Piston	Gold	Surface Mount	10 Áin	0.25 Ám	0.1 in	2.54 mm	42	Copper Alloy	2
Mill-Max Manufacturing Corp. 820-22-050-30-001101	2.54 mm	0.1 in	Piston	Gold	Surface Mount	10 Áin	0.25 Ám	0.1 in	2.54 mm	50	Copper Alloy	2
Mill-Max Manufacturing Corp. 820-22-010-30-001101	2.54 mm	0.1 in	Piston	Gold	Surface Mount	10 Áin	0.25 Ám	0.1 in	2.54 mm	10	Copper Alloy	2
Mill-Max Manufacturing Corp. 820-22-018-30-001101	2.54 mm	0.1 in	Piston	Gold	Surface Mount	10 Áin	0.25 Ám	0.1 in	2.54 mm		Copper Alloy	2
Mill-Max Manufacturing Corp. 820-22-046-30-001101	2.54 mm	0.1 in	Piston	Gold	Surface Mount	10 Áin	0.25 Ám	0.1 in	2.54 mm	46	Copper Alloy	2
Mill-Max Manufacturing Corp. 820-22-052-30-001101	2.54 mm	0.1 in	Piston	Gold	Surface Mount	10 Áin	0.25 Ám	0.1 in	2.54 mm	52	Copper Alloy	2
Mill-Max Manufacturing Corp. 820-22-060-30-001101	2.54 mm	0.1 in	Piston	Gold	Surface Mount	10 Áin	0.25 Ám	0.1 in	2.54 mm	60	Copper Alloy	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12 Position Spring Piston Connector Surface Mount
