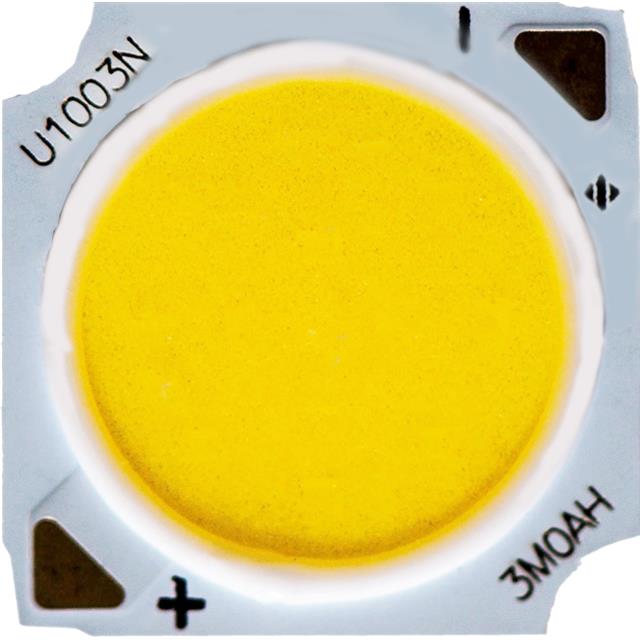

CMU1003-0000-000N0U0A30G

Active

Cree LED

LED XLAMP WARM WHT 3000K

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CMU1003-0000-000N0U0A30G

Active

Cree LED

LED XLAMP WARM WHT 3000K

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CMU1003-0000-000N0U0A30G

CCT (K)	3000 K
Color	White, Warm
CRI (Color Rendering Index)	90
Current - Max [Max]	240 mA
Current - Test	90 mA
Flux @ 85°C, Current - Test	429 lm
Height - Seated (Max) [Max]	0.067 in
Height - Seated (Max) [Max]	1.7 mm
Lumens/Watt @ Current - Test	141 lm/W
Mounting Type	Surface Mount
Package / Case	2-SMD, No Lead
Size / Dimension [x]	13.5 mm
Size / Dimension [x]	0.531 in
Size / Dimension [y]	0.531 in
Size / Dimension [y]	13.5 mm
Viewing Angle	115 °
Voltage - Forward (Vf) (Typ)	33.7 V

CMU1003 Series

Part	Current - Max [Max]	Color	Height [z]	Configuration	Voltage - Forward (Vf) (Typ)	Lens Type	Current - Test	Light Emitting Surface (LES) [diameter]	Temperature - Test	Type	Viewing Angle	CRI (Color Rendering Index)	Luminous Flux @ Current/Temperature	Lumens/Watt @ Current - Test	CCT (K)	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Package / Case	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Flux @ 85°C, Current - Test
Cree LED CMU1003-R160-00PN0U0A30Q	240 mA	Warm White	1.5 mm	Square	33.7 V	Flat	90 mA	9.8 mm	85 °C	Chip On Board (COB)	115 °	90
Cree LED CMU1003-R160-000N0H0A50G	240 mA	Cool White	1.5 mm	Square	33.7 V	Flat	90 mA	9.8 mm	85 °C	Chip On Board (COB)	115 °	80	515 lm	170 lm/W
Cree LED CMU1003-R160-000N0H0A30G	240 mA	Warm White	1.5 mm	Square	33.7 V	Flat	90 mA	9.8 mm	85 °C	Chip On Board (COB)	115 °	80	495 lm	163 lm/W	3000 K
Cree LED CMU1003-R160-000N0B0A30E	240 mA	Warm White	1.5 mm	Square	33.7 V	Flat	90 mA	9.8 mm	85 °C	Chip On Board (COB)	115 °	70	543 lm	179 lm/W	3000 K
Cree LED CMU1003-R160-000N0H0A40H	240 mA	Neutral White	1.5 mm	Square	33.7 V	Flat	90 mA	9.8 mm	85 °C	Chip On Board (COB)	115 °	80	507 lm		4000 K
Cree LED CMU1003-0000-000N0H0A27H	240 mA	Warm White			33.7 V		90 mA				115 °	80		157 lm/W	2700 K	Surface Mount	13.5 mm	0.531 in	0.531 in	13.5 mm	2-SMD No Lead	0.067 in	1.7 mm	475 lm
Cree LED CMU1003-0000-000N0U0A30G	240 mA	Warm White			33.7 V		90 mA				115 °	90		141 lm/W	3000 K	Surface Mount	13.5 mm	0.531 in	0.531 in	13.5 mm	2-SMD No Lead	0.067 in	1.7 mm	429 lm
Cree LED CMU1003-R160-00PN0U0A35H	240 mA	Warm White	1.5 mm	Square	33.7 V	Flat	90 mA	9.8 mm	85 °C	Chip On Board (COB)	115 °	90			3500 K
Cree LED CMU1003-0000-000N0U0A31Q	240 mA	Warm White			33.7 V		90 mA				115 °	90		135 lm/W	3100 K	Surface Mount	13.5 mm	0.531 in	0.531 in	13.5 mm	2-SMD No Lead	0.067 in	1.7 mm	410 lm
Cree LED CMU1003-0000-000N0U0A30Q	240 mA	Warm White			33.7 V		90 mA				115 °	90		138 lm/W	3000 K	Surface Mount	13.5 mm	0.531 in	0.531 in	13.5 mm	2-SMD No Lead	0.067 in	1.7 mm	420 lm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	400	$ 1.16

Description

General part information

CMU1003 Series

LED Lighting XLamp® CMU1003 White, Warm 3000K 3-Step MacAdam Ellipse 33.7V 90mA 115° 2-SMD, No Lead
