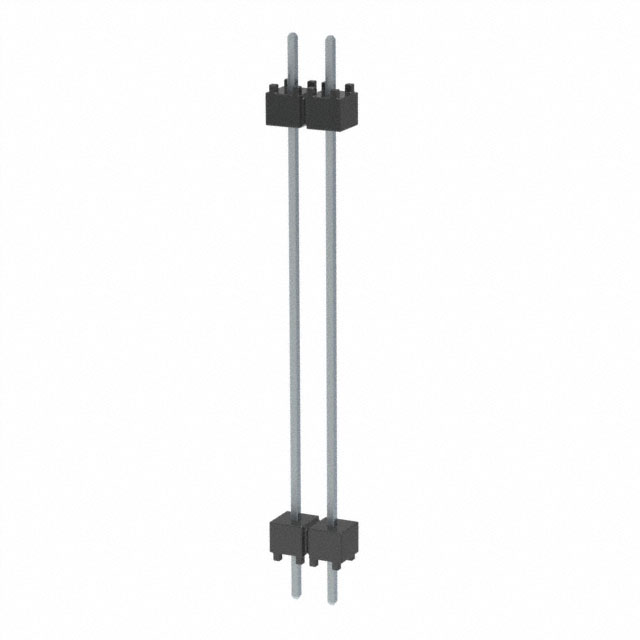

DW-02-14-T-S-1200

Active

Samtec Inc.

CONN BOARD STACKER HDR 2 POS 2.54MM SOLDER ST TOP ENTRY THRU-HOLE BULK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Flexible Board Stacking Header with Fixed Tail Length, 0.100" Pitch +1

DW-02-14-T-S-1200

Active

Samtec Inc.

CONN BOARD STACKER HDR 2 POS 2.54MM SOLDER ST TOP ENTRY THRU-HOLE BULK

Deep-Dive with AI

DocumentsDatasheet Flexible Board Stacking Header with Fixed Tail Length, 0.100" Pitch +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DW-02-14-T-S-1200

Color	Black
Contact Finish - Post (Mating)	Tin
Length - Overall Pin [x]	1.43 in
Length - Overall Pin [x]	36.322 mm
Length - Post (Mating) [x]	3.048 mm
Length - Post (Mating) [x]	0.12 in
Length - Stack Height [x]	30.48 mm
Length - Stack Height [x]	1.2 in
Length - Tail [x]	0.11 in
Length - Tail [x]	2.794 mm
Mounting Type	Through Hole
Number of Positions	2
Number of Rows	1
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Termination	Solder

DW-02-14 Series

Part	Number of Rows	Number of Positions	Length - Tail [x]	Length - Tail [x]	Mounting Type	Termination	Length - Overall Pin [x]	Length - Overall Pin [x]	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Contact Finish - Post (Mating)	Color	Pitch [x]	Pitch [x]	Length - Stack Height [x]	Length - Stack Height [x]	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Row Spacing [x]	Row Spacing	Length - Stack Height [z]	Length - Stack Height [z]
Samtec Inc. DW-02-14-T-S-705	1	2	0.11 in	2.794 mm	Through Hole	Solder	1.43 in	36.322 mm	0.615 in	15.621 mm	Tin	Black	2.54 mm	0.1 in	17.907 mm	0.705 in
Samtec Inc. DW-02-14-G-D-960	2	4	0.11 in	2.794 mm	Through Hole	Solder	1.43 in	36.322 mm	0.36 in	9.144 mm	Gold	Black	2.54 mm	0.1 in	24.384 mm	0.96 in	0.25 Ám	10 Áin	0.1 in	2.54 mm
Samtec Inc. DW-02-14-T-S-1200	1	2	0.11 in	2.794 mm	Through Hole	Solder	1.43 in	36.322 mm	0.12 in	3.048 mm	Tin	Black	2.54 mm	0.1 in	30.48 mm	1.2 in
Samtec Inc. DW-02-14-T-D-1100	2	4	0.11 in	2.794 mm	Through Hole	Solder	1.43 in	36.322 mm	0.22 in	5.588 mm	Tin	Black	2.54 mm	0.1 in	27.94 mm	1.1 in			0.1 in	2.54 mm
Samtec Inc. DW-02-14-T-S-1105	1	2	0.11 in	2.794 mm	Through Hole	Solder	1.43 in	36.322 mm	0.215 in	5.791 mm	Tin	Black	2.54 mm	0.1 in	28.067 mm	1.105 in
Samtec Inc. DW-02-14-T-S-1123	1	2	0.11 in	2.794 mm	Through Hole	Solder	1.43 in	36.322 mm	0.197 in	5.004 mm	Tin	Black	2.54 mm	0.1 in							1.123 in	28.524 mm
Samtec Inc. DW-02-14-F-S-1115	1	2	0.11 in	2.794 mm	Through Hole	Solder	1.43 in	36.322 mm	0.205 in	5.207 mm	Gold	Black	2.54 mm	0.1 in	28.321 mm	1.115 in	0.076 Ám	3 Áin
Samtec Inc. DW-02-14-T-S-1085	1	2	0.11 in	2.794 mm	Through Hole	Solder	1.43 in	36.322 mm	0.235 in	5.969 mm	Tin	Black	2.54 mm	0.1 in							1.085 in	27.559 mm
Samtec Inc. DW-02-14-LM-D-910	2	4	0.11 in	2.794 mm	Through Hole	Solder	1.43 in	36.322 mm	0.41 in	10.414 mm	Gold	Black	2.54 mm	0.1 in	23.114 mm	0.91 in	0.25 Ám	10 Áin	0.1 in	2.54 mm
Samtec Inc. DW-02-14-S-D-985	2	4	0.11 in	2.794 mm	Through Hole	Solder	1.43 in	36.322 mm	0.335 in	8.509 mm	Gold	Black	2.54 mm	0.1 in	25.019 mm	0.985 in	0.76 µm	30 µin	0.1 in	2.54 mm
