C01610C00600012

Active

Amphenol Tuchel Industrial

CONN RCPT HSNG MALE 7POS PNL MT

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN RCPT HSNG MALE 7POS PNL MT

Technical Specifications

Parameters and characteristics for this part

Specification	C01610C00600012

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	1.6 mm
Contact Type	Crimp
Housing Color	Black
Ingress Protection	IP67, IP65
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Note	Contacts Not Included
Number of Positions [custom]	1
Number of Positions [custom]	6
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Shell Material	Polyamide (PA66), Nylon 6/6
Shielding	Unshielded
Type	For Male Pins

CONN RCPT HSNG MALE 7POS PNL MT

Part	Contact Type	Shell Material	Contact Shape	Material Flammability Rating	Note	Number of Positions [custom]	Number of Positions [custom]	Type	Contact Size	Operating Temperature [Max]	Operating Temperature [Min]	Shielding	Orientation	Mounting Feature	Housing Color	Ingress Protection	Connector Type
Amphenol Tuchel Industrial C01610C00600012	Crimp	Polyamide (PA66), Nylon 6/6	Circular	UL94 V-0	Contacts Not Included	1	6	For Male Pins	1.6 mm	125 °C	-40 °C	Unshielded	Keyed	Flange	Black	IP65, IP67	Receptacle Housing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

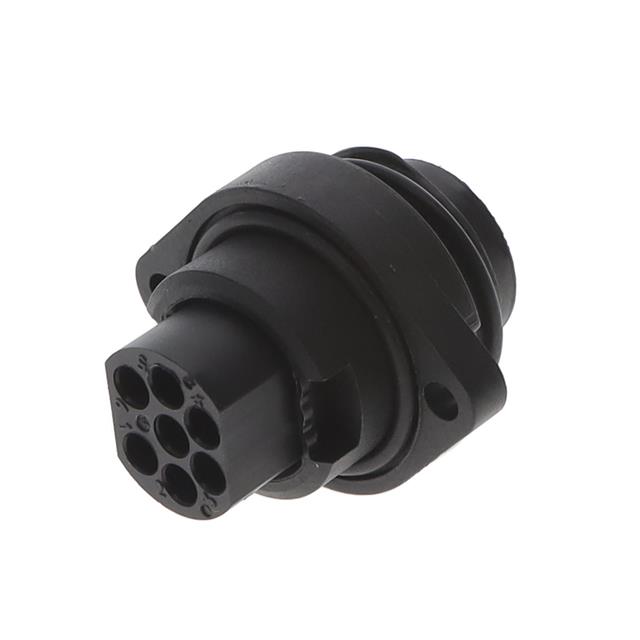

7 (6 + PE) Position Circular Connector Receptacle Housing Panel Mount
