#22 COAX FEP RG59/U

Search across all available documentation for this part.

Active

Belden Inc.

#22 COAX FEP RG59/U

Technical Specifications

Parameters and characteristics for this part

Specification	89259 010500

Cable Group	RG-59
Cable Type	Coaxial
Conductor Material	Copper, Bare
Conductor Strand [custom]	30 AWG
Conductor Strand [custom]	7
Dielectric Diameter [diameter]	3.43 mm
Dielectric Diameter [diameter]	0.135 in
Dielectric Material	Fluorinated Ethylene Propylene (FEP)
Features	UV Resistant
Impedance	75 Ohms
Jacket (Insulation) Diameter [diameter]	4.9 mm
Jacket (Insulation) Diameter [diameter]	0.193 in
Jacket (Insulation) Material	Fluorinated Ethylene-Propylene (FEP)
Jacket Color	Black
Length	152.4 m
Length	6000 in
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-70 °C
Shield Coverage	95 %
Shield Material	Copper, Bare
Shield Type	Braid
Usage	Video
VoP, Velocity of Propagation	78
Wire Gauge	22 AWG

Part	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Usage	Conductor Material	Operating Temperature [Max]	Operating Temperature [Min]	Cable Group	Conductor Strand [custom]	Conductor Strand [custom]	VoP, Velocity of Propagation	Wire Gauge	Cable Type	Dielectric Material	Length	Length	Jacket (Insulation) Material	Impedance	Shield Material	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Features	Shield Coverage	Shield Type	Jacket Color
Belden Inc. 89259 010500	4.9 mm	0.193 in	Video	Copper Bare	200 °C	-70 °C	RG-59	30 AWG	7	78	22 AWG	Coaxial	Fluorinated Ethylene Propylene (FEP)	152.4 m	6000 in	Fluorinated Ethylene-Propylene (FEP)	75 Ohms	Copper Bare	3.43 mm	0.135 in	UV Resistant	95 %	Braid	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 6.11

General part information

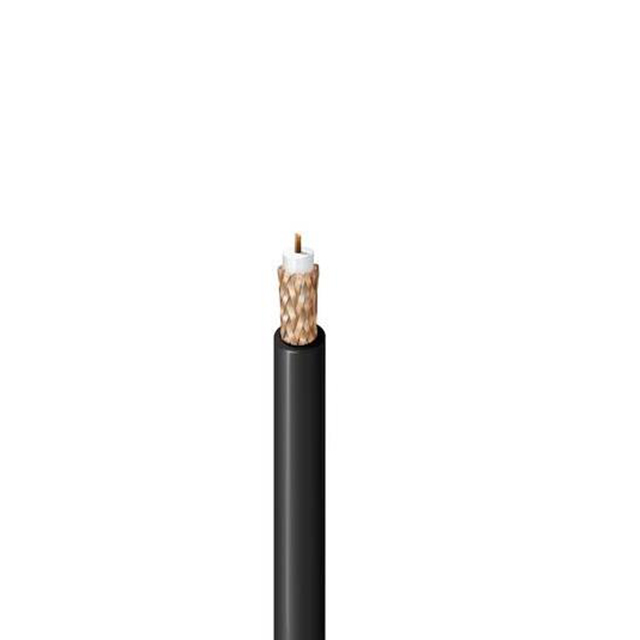

Coaxial Cable 22 AWG RG-59 500.0' (152.40m) 75 Ohms
