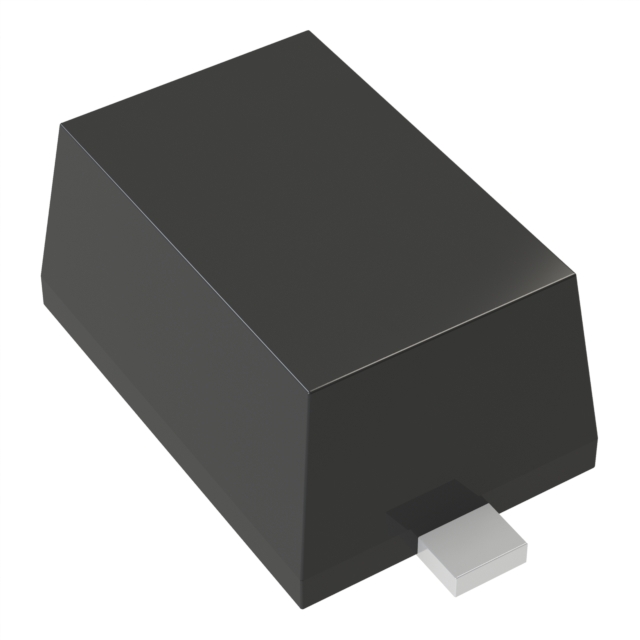

XBP1007-G

Active

Torex Semiconductor Ltd

TVS DIODE 24VWM 43VC SOD323P

Search across all available documentation for this part.

Active

Torex Semiconductor Ltd

TVS DIODE 24VWM 43VC SOD323P

Technical Specifications

Parameters and characteristics for this part

Specification	XBP1007-G

Applications	USB, Ethernet, DVI
Bidirectional Channels [custom]	1
Capacitance @ Frequency	3 pF
Current - Peak Pulse (10/1000µs)	1 A
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	SOD-323F, SC-90
Power - Peak Pulse	350 W
Power Line Protection	True
Supplier Device Package	SOD-323P
Type	Zener
Voltage - Breakdown (Min) [Min]	27.27 V
Voltage - Clamping (Max) @ Ipp	43 V
Voltage - Reverse Standoff (Typ)	24 V

Part	Package / Case	Current - Peak Pulse (10/1000µs)	Supplier Device Package	Power - Peak Pulse	Voltage - Breakdown (Min) [Min]	Capacitance @ Frequency	Operating Temperature [Min]	Operating Temperature [Max]	Type	Voltage - Clamping (Max) @ Ipp	Power Line Protection	Mounting Type	Voltage - Reverse Standoff (Typ)	Applications	Bidirectional Channels [custom]
Torex Semiconductor Ltd XBP1007-G	SC-90 SOD-323F	1 A	SOD-323P	350 W	27.27 V	3 pF	-55 °C	150 °C	Zener	43 V		Surface Mount	24 V	DVI Ethernet USB	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

43V Clamp 1A (8/20µs) Ipp Tvs Diode Surface Mount SOD-323P
