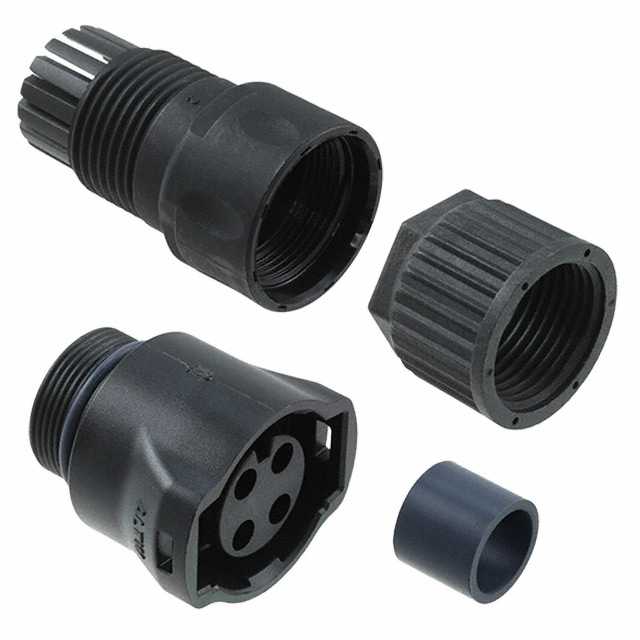

DC-04BFFC-RL7001

Active

Amphenol LTW

CONN RCPT HSNG FMALE 4POS INLINE

Search across all available documentation for this part.

Active

Amphenol LTW

CONN RCPT HSNG FMALE 4POS INLINE

Technical Specifications

Parameters and characteristics for this part

Specification	DC-04BFFC-RL7001

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	12
Contact Type	Crimp
Fastening Type	Latch Lock, Snap-In
Features	Backshell
Housing Color	Black
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	4
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Shell Material	Modified Polyphenylene Ether (mPPE)
Shell Size - Insert	D
Shielding	Unshielded
Type	For Female Sockets

Part	Contact Shape	Material Flammability Rating	Housing Color	Number of Positions	Fastening Type	Shell Material	Shielding	Type	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Orientation	Shell Size - Insert	Ingress Protection	Connector Type	Contact Size	Note	Mounting Type	Features
Amphenol LTW DC-04BFFC-RL7001	Circular	UL94 V-0	Black	4	Latch Lock Snap-In	Modified Polyphenylene Ether (mPPE)	Unshielded	For Female Sockets	Crimp	-40 °C	105 ░C	Keyed	D	IP67 - Dust Tight Waterproof	Receptacle Housing	12	Contacts Not Included	Free Hanging (In-Line)	Backshell

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 7.92

General part information

4 Position Circular Connector Receptacle Housing Free Hanging (In-Line) Backshell
