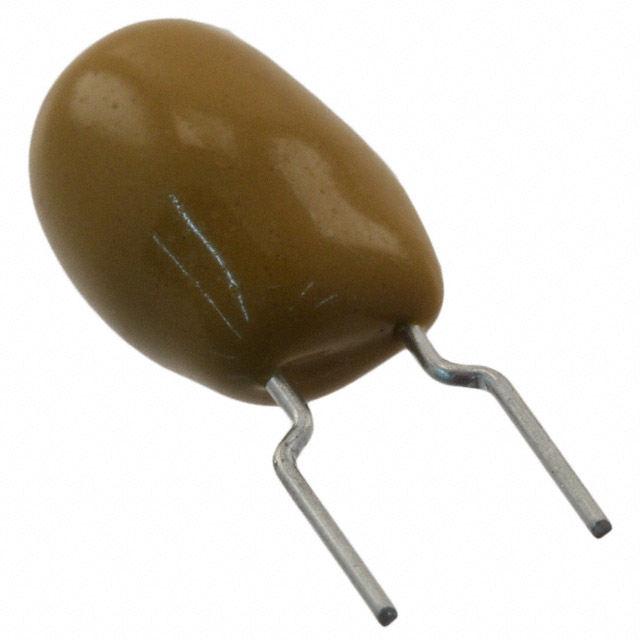

T356K476K025AS

Active

KEMET

CAP TANT 47UF 10% 25V RADIAL

Search across all available documentation for this part.

Active

KEMET

CAP TANT 47UF 10% 25V RADIAL

Technical Specifications

Parameters and characteristics for this part

Specification	T356K476K025AS

Capacitance	47 µF
ESR (Equivalent Series Resistance)	1 Ohms
Features	General Purpose
Height - Seated (Max)	15.5 mm
Height - Seated (Max) [Max]	0.61 "
Lead Spacing	5.08 mm
Lead Spacing	0.2 in
Manufacturer Size Code	K
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Size / Dimension [diameter]	0.35 in
Size / Dimension [diameter]	8.9 mm
Tolerance	10 %
Type	Conformal Coated
Voltage - Rated	25 VDC

Part	Manufacturer Size Code	Voltage - Rated	ESR (Equivalent Series Resistance)	Tolerance	Lead Spacing	Lead Spacing	Size / Dimension [diameter]	Size / Dimension [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Capacitance	Features	Package / Case	Mounting Type	Type	Height - Seated (Max)	Height - Seated (Max) [Max]
KEMET T356K476K025AS	K	25 VDC	1 Ohms	10 %	5.08 mm	0.2 in	0.35 in	8.9 mm	-55 °C	125 °C	47 µF	General Purpose	Radial	Through Hole	Conformal Coated	15.5 mm	0.61 "
KEMET T356K106K050AS	K	50 VDC	1.6 Ohm	10 %	5.08 mm	0.2 in	0.35 in	8.9 mm	-55 °C	125 °C	10 µF	General Purpose	Radial	Through Hole	Conformal Coated	15.5 mm	0.61 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 12.50
