RP1635C

Active

Hammond Manufacturing

BOX ABS GRAY/CLR 10"L X 8.03"W

Search across all available documentation for this part.

Active

Hammond Manufacturing

BOX ABS GRAY/CLR 10"L X 8.03"W

Technical Specifications

Parameters and characteristics for this part

Specification	RP1635C

Area (L x W)	80.3 in˛
Area (L x W)	518 cm˛
Color	Gray, Clear Cover/Door
Container Type	Box
Design	Cover Included
Height [z]	130.05 mm
Height [z]	5.12 in
Material	ABS
Material Flammability Rating	UL94 HB
Size / Dimension [x]	254 mm
Size / Dimension [x]	10 in
Size / Dimension [y]	203.96 mm
Size / Dimension [y]	8.03 in
Thickness	2.03 mm
Thickness	0.08 "

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Area (L x W)	Area (L x W)	Height [z]	Height [z]	Thickness	Thickness	Design	Material	Container Type	Color	Material Flammability Rating
Hammond Manufacturing RP1635C	254 mm	203.96 mm	10 in	8.03 in	80.3 in˛	518 cm˛	130.05 mm	5.12 in	2.03 mm	0.08 "	Cover Included	ABS	Box	Clear Cover/Door Gray	UL94 HB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

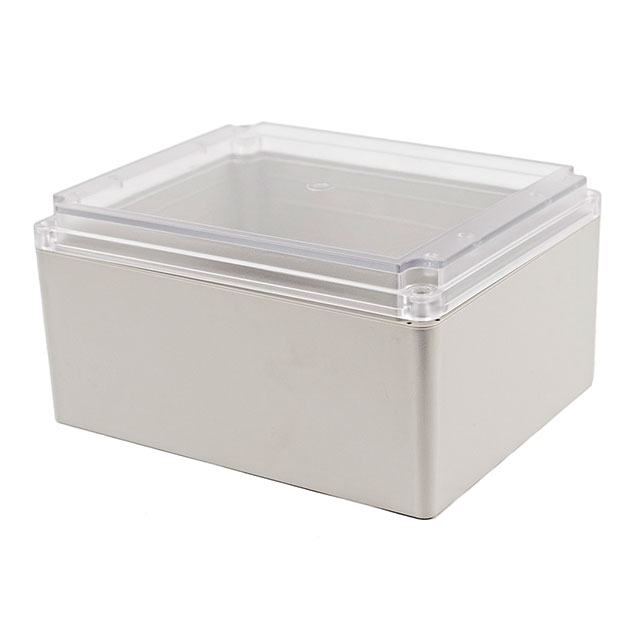

Box ABS Gray, Clear Cover/Door Cover Included 10.000" L x 8.030" W (254.00mm x 203.96mm) X 5.120" (130.05mm)
