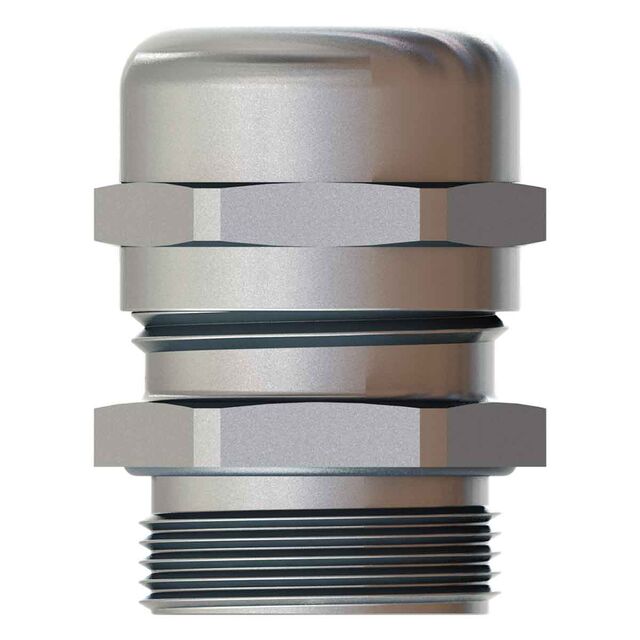

EM2-16L

Active

SAB North America

CABLE GLAND 4.01-8MM M16 BRASS

Search across all available documentation for this part.

Active

SAB North America

CABLE GLAND 4.01-8MM M16 BRASS

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EM2-16L	EM2-16 Series

Color	Silver	Silver
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof
Material	Brass, Nickel Plated	Brass, Nickel Plated
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-20 C	-20 C
Outside Cable Diameter (Max) [Max] [diameter]	8 mm	8 - 10 mm
Outside Cable Diameter (Max) [Max] [diameter]	0.315 in	0.315 - 0.394 "
Outside Cable Diameter (Min) [Min] [diameter]	4.01 mm	4.01 - 4.5 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.158 in	0.158 - 0.177 in
Panel Hole Size	0.63 in	0.63 in
Panel Hole Size	16 mm	16 mm
Thread Length	0.472 in	0.256 - 0.472 in
Thread Length	12 mm	6.5 - 12 mm
Thread Size	M16x1.5	M16x1.5
Type	Cable Gland	Cable Gland

CABLE GLAND 4.5-10MM M16 BRASS

Part	Thread Size	Ingress Protection	Thread Length	Thread Length	Color	Panel Hole Size	Panel Hole Size	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Material	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Type
SAB North America EM2-16C	M16x1.5	IP68 - Dust Tight, Waterproof	0.256 in	6.5 mm	Silver	0.63 in	16 mm	0.177 in	4.5 mm	Brass, Nickel Plated	0.394 "	10 mm	100 °C	-20 C	Cable Gland
SAB North America EM2-16L	M16x1.5	IP68 - Dust Tight, Waterproof	0.472 in	12 mm	Silver	0.63 in	16 mm	0.158 in	4.01 mm	Brass, Nickel Plated	0.315 in	8 mm	100 °C	-20 C	Cable Gland

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Brass, Nickel Plated M16x1.5 Silver
