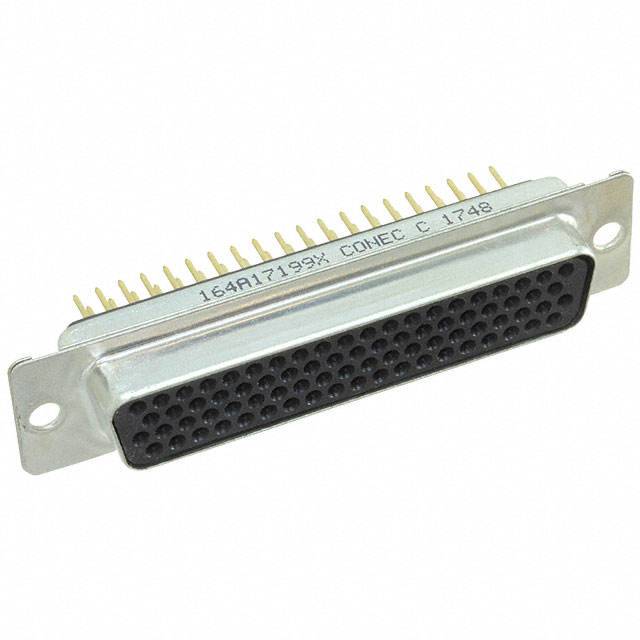

164A17199X

Active

Amphenol CONEC

CONN D-SUB HD RCPT 78P VERT SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

164A17199X

Active

Amphenol CONEC

CONN D-SUB HD RCPT 78P VERT SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	164A17199X

Color	Black
Connector Style	High Density, D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	78
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Termination	Solder
Voltage Rating	60 VDC

164A171 Series

Part	Shell Size, Connector Layout	Shell Size, Connector Layout	Dielectric Material	Flange Feature	Voltage Rating	Number of Rows	Color	Current Rating (Amps)	Contact Finish Thickness	Contact Material	Contact Type	Connector Type	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Wire Gauge	Material Flammability Rating	Connector Style	Number of Positions	Termination	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [x]
Amphenol CONEC 164A17119X	2	(DA A) High Density	Polybutylene Terephthalate (PBT) Glass Filled	Cable Side (M3)	60 VDC	3	Black	3 A	Flash	Copper Alloy	Signal	Receptacle Female Sockets	Gold	-55 °C	125 °C	Free Hanging (In-Line)	22 AWG	UL94 V-0	D-Sub High Density	26
Amphenol CONEC 164A17199X			Polybutylene Terephthalate (PBT) Glass Filled	Housing/Shell (Unthreaded)	60 VDC		Black	3 A		Copper Alloy	Signal	Receptacle Female Sockets	Gold	-55 °C	125 °C	Through Hole		UL94 V-0	D-Sub High Density	78	Solder
Amphenol CONEC 164A17169X	2	(DA A) High Density	Polybutylene Terephthalate (PBT) Glass Filled	Housing/Shell (Unthreaded)	60 VDC	3	Black	3 A		Copper Alloy	Signal	Receptacle Female Sockets	Gold	-55 °C	125 °C	Through Hole		UL94 V-0	D-Sub High Density	26	Solder
Amphenol CONEC 164A17159X			Polybutylene Terephthalate (PBT) Glass Filled	Housing/Shell (Unthreaded)	60 VDC	3	Black	3 A		Copper Alloy	Signal	Receptacle Female Sockets	Gold	-55 °C	125 °C	Through Hole		UL94 V-0	D-Sub High Density	15	Solder	DE E	1	High Density
Amphenol CONEC 164A17129X			Polybutylene Terephthalate (PBT) Glass Filled	Cable Side (M3)	60 VDC	3	Black	3 A	Flash	Copper Alloy	Signal	Receptacle Female Sockets	Gold	-55 °C	125 °C	Free Hanging (In-Line)	22 AWG	UL94 V-0	D-Sub High Density	44		B DB			3

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 26.51
		10	$ 23.22
		25	$ 22.21
		50	$ 21.50
		100	$ 20.78
		250	$ 19.63
		500	$ 19.06

Description

General part information

164A171 Series

78 Position D-Sub, High Density Receptacle, Female Sockets Connector
