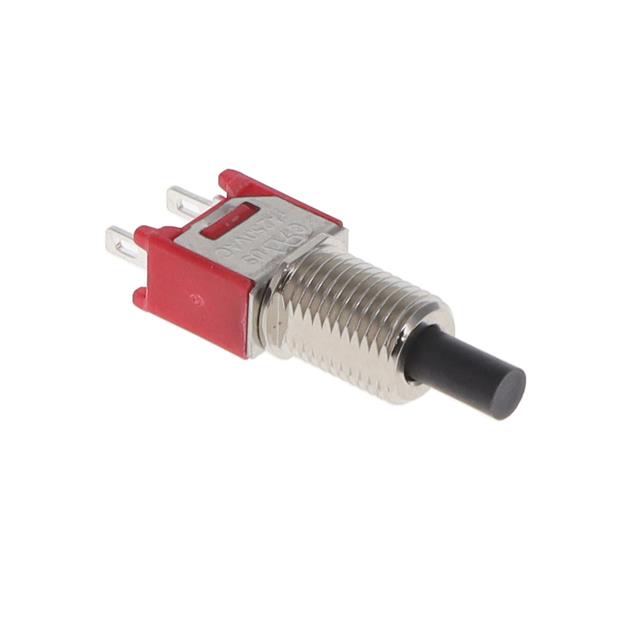

800SP9B9M1QE

Active

E-Switch

SWITCH PUSH SPST-NO 3A 120V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	800SP9B9M1QE

Actuator Marking	No Marking
Actuator Type	Round, Plunger
Circuit	SPST-NO
Color - Actuator/Cap	Black
Current Rating (Amps)	3 A
Electrical Life	50000 Cycles
Mounting Type	Panel Mount, Rear
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [diameter]	0.25 in
Switch Function	Off-Mom
Termination Style	Solder Lug
Type	Standard
Voltage Rating - AC	120 V
Voltage Rating - DC	28 V

800SP9 Series

Part	Termination Style	Actuator Type	Voltage Rating - AC	Electrical Life	Circuit	Current Rating (Amps)	Type	Switch Function	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Actuator Marking	Color - Actuator/Cap	Voltage Rating - DC	Panel Cutout Dimensions [diameter]
E-Switch 800SP9B5M6REH	PC Pin	Round Plunger	20 V	50000 Cycles	SPST-NO	0.4 VA	Standard	Off-Mom	-30 ░C	85 °C	Panel Mount Rear Right Angle	No Marking	Black	20 V	4.95 mm
E-Switch 800SP9B7M2REC1BLK	PC Pin	Button Round	20 V	50000 Cycles	SPST-NO	0.4 VA	Standard	Off-Mom	-30 ░C	85 °C	Through Hole	No Marking	Black	20 V
E-Switch 800SP9B7M6REC2BLK	PC Pin	Button Round	20 V	50000 Cycles	SPST-NO	0.4 VA	Standard	Off-Mom	-30 ░C	85 °C	Through Hole Right Angle	No Marking	Black	20 V
E-Switch 800SP9B6VS2RE	PC Pin	Round Plunger	20 V	50000 Cycles	SPST-NO	0.4 VA	Standard	Off-Mom	-30 ░C	85 °C	Through Hole	No Marking	Black	20 V
E-Switch 800SP9B6M2QE	PC Pin	Round Plunger	120 V	50000 Cycles	SPST-NO	3 A	Standard	Off-Mom	-30 ░C	85 °C	Through Hole	No Marking	Black	28 V
E-Switch 800SP9B9M6RE	PC Pin	Round Plunger	20 V	50000 Cycles	SPST-NO	0.4 VA	Standard	Off-Mom	-30 ░C	85 °C	Panel Mount Rear Right Angle	No Marking	Black	20 V	0.25 in
E-Switch 800SP9B10M6QE	PC Pin	Round Plunger	120 V	50000 Cycles	SPST-NO	3 A	Standard	Off-Mom	-30 ░C	85 °C	Through Hole Right Angle	No Marking	Black	28 V
E-Switch 800SP9B9M1QE	Solder Lug	Round Plunger	120 V	50000 Cycles	SPST-NO	3 A	Standard	Off-Mom	-30 ░C	85 °C	Panel Mount Rear	No Marking	Black	28 V	0.25 in
E-Switch 800SP9B9VS2REH	PC Pin	Round Plunger	20 V	50000 Cycles	SPST-NO	0.4 VA	Standard	Off-Mom	-30 ░C	85 °C	Panel Mount Rear	No Marking	Black	20 V	0.25 in
E-Switch 800SP9B9M2QEH	PC Pin	Round Plunger	120 V	50000 Cycles	SPST-NO	3 A	Standard	Off-Mom	-30 ░C	85 °C	Panel Mount Rear	No Marking	Black	28 V	0.25 in
