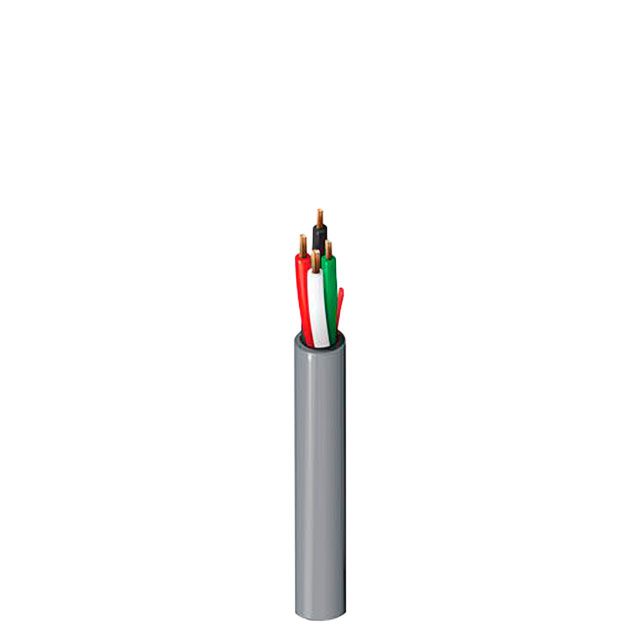

5202UE 0081000

Active

Belden Inc.

MULTI-CONDUCTOR CABLES 16AWG 4C UNSHLD 1000FT SPOOL GRAY

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-CONDUCTOR CABLES 16AWG 4C UNSHLD 1000FT SPOOL GRAY

Technical Specifications

Parameters and characteristics for this part

Specification	5202UE 0081000

Cable Type	Multi-Conductor
Conductor Insulation	Polypropylene (PP)
Conductor Material	Copper, Bare
Conductor Strand [custom]	19 Strands
Conductor Strand [custom]	29 AWG
Features	Rip Cord
Jacket (Insulation) Diameter [diameter]	5.33 mm
Jacket (Insulation) Diameter [diameter]	0.21 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC), Riser
Jacket (Insulation) Thickness	0.432 mm
Jacket (Insulation) Thickness	0.017 in
Jacket Color	Gray
Length	1000 ft
Length	304.8 m
Number of Conductors	4
Ratings	UL Style CMR
Usage	Sound, Security
Voltage	300 V
Wire Gauge	16 AWG

Part	Jacket (Insulation) Material	Wire Gauge	Conductor Insulation	Jacket Color	Features	Conductor Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Strand [custom]	Conductor Strand [custom]	Usage	Length [x]	Length [x]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Ratings	Number of Conductors	Cable Type	Voltage	Length	Length
Belden Inc. 5202UE 008U500	Poly-Vinyl Chloride (PVC) Riser	16 AWG	Polypropylene (PP)	Gray	Rip Cord	Copper Bare	5.33 mm	0.21 in	19 Strands	29 AWG	Alarm Security Sound	500 '	152.4 m	0.432 mm	0.017 in	UL Style CMR	4	Multi-Conductor
Belden Inc. 5202UE 0081000	Poly-Vinyl Chloride (PVC) Riser	16 AWG	Polypropylene (PP)	Gray	Rip Cord	Copper Bare	5.33 mm	0.21 in	19 Strands	29 AWG	Security Sound			0.432 mm	0.017 in	UL Style CMR	4	Multi-Conductor	300 V	1000 ft	304.8 m
Belden Inc. 5202UE 008U1000	Poly-Vinyl Chloride (PVC) Riser	16 AWG	Polypropylene (PP)	Gray	Rip Cord	Copper Bare	5.33 mm	0.21 in	19 Strands	29 AWG	Security Sound			0.432 mm	0.017 in	UL Style CMR	4	Multi-Conductor	300 V	1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 0.58

General part information

4 Conductor Multi-Conductor Cable Gray 16 AWG 1000.0' (304.8m)
