AMPH-SAS-SL8-43X2-050

Active

Pactech

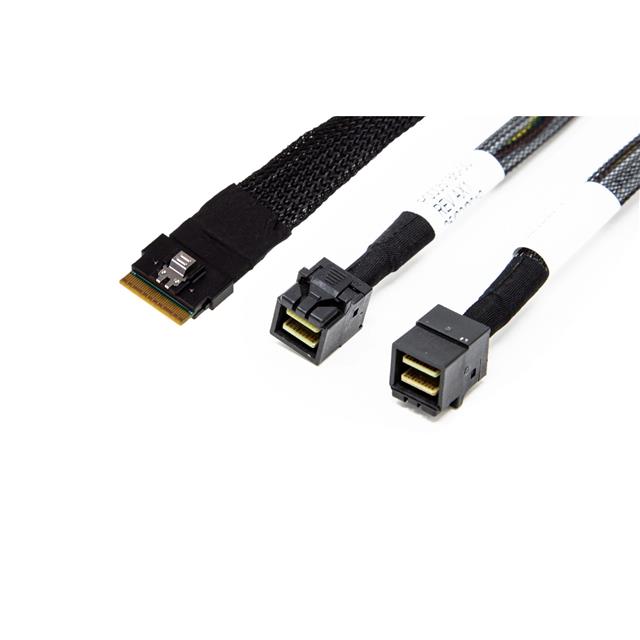

SLIMSAS 8I TO 2X HD MINISAS 0.5M

Search across all available documentation for this part.

Active

Pactech

SLIMSAS 8I TO 2X HD MINISAS 0.5M

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	200	$ 76.56

General part information

74, 36 (2) Position SlimSAS SFF-8654 8i, miniSAS HD 4i Plug to Plug (2) 1.64' (500.00mm) Black Shielded

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	AMPH-SAS-SL8-43X2-050	AMPH-SAS Series

Cable Connectors	SlimSAS SFF-8654 8i, miniSAS HD 4i	SlimSAS SFF-8654 8i, miniSAS HD 4i, SlimSAS SFF-8654 4i
Cable Type	Flat	Flat, Round
Color	Black	Black
Connector Type	Plug to Plug (2)	Plug to Plug (2), Plug to Plug
Fastening Type	Latch Lock	Latch Lock
Features	RAID friendly for Broadcom MegaRAID 9560-8i and DELL PowerEdge RAID Controller H745, SlimSAS SFF-8654, 8Gbps PCI-e Gen3	RAID friendly for Broadcom MegaRAID 9560-8i and DELL PowerEdge RAID Controller H745, SlimSAS SFF-8654, 8Gbps PCI-e Gen3
Frequency - Max	-	24 Gbps
Gender	Female to Male	Female to Male, Male to Male
Length [x]	1.64 ft	1.64 - 3.28 ft
Length [x]	500 mm	1 - 500 m
Number of Positions	36, 74	36 - 74
Shielding	Shielded	Shielded
Usage	Internal	Internal
Wire Gauge	-	30 AWG

SLIMSAS 8I TO 2X HDMINISAS 4I 1M

Part	Shielding	Gender	Cable Type	Usage	Color	Connector Type	Cable Connectors	Number of Positions	Fastening Type	Length [x]	Length [x]	Features	Frequency - Max [Max]	Wire Gauge
Pactech AMPH-SAS-SL8-43X2-100	Shielded	Female to Male	Flat	Internal	Black	Plug to Plug (2)	miniSAS HD 4i, SlimSAS SFF-8654 8i	36, 74	Latch Lock	1 m	3.28 ft	8Gbps PCI-e Gen3, RAID friendly for Broadcom MegaRAID 9560-8i and DELL PowerEdge RAID Controller H745, SlimSAS SFF-8654
Pactech AMPH-SAS-SL8-43X2-050	Shielded	Female to Male	Flat	Internal	Black	Plug to Plug (2)	miniSAS HD 4i, SlimSAS SFF-8654 8i	36, 74	Latch Lock	500 mm	1.64 ft	8Gbps PCI-e Gen3, RAID friendly for Broadcom MegaRAID 9560-8i and DELL PowerEdge RAID Controller H745, SlimSAS SFF-8654
Pactech AMPH-SAS-SL4-4.0-050	Shielded	Male to Male	Round		Black	Plug to Plug	SlimSAS SFF-8654 4i	38	Latch Lock	500 mm	1.64 ft		24 Gbps	30 AWG
