8282-2SG-522

Active

Conxall/Switchcraft

CONN RCPT FMALE 2P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

8282-2SG-522

Active

Conxall/Switchcraft

CONN RCPT FMALE 2P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 10.57
		10	$ 9.51
		100	$ 8.50
		1000	$ 6.30

Description

General part information

8282-2SG Series

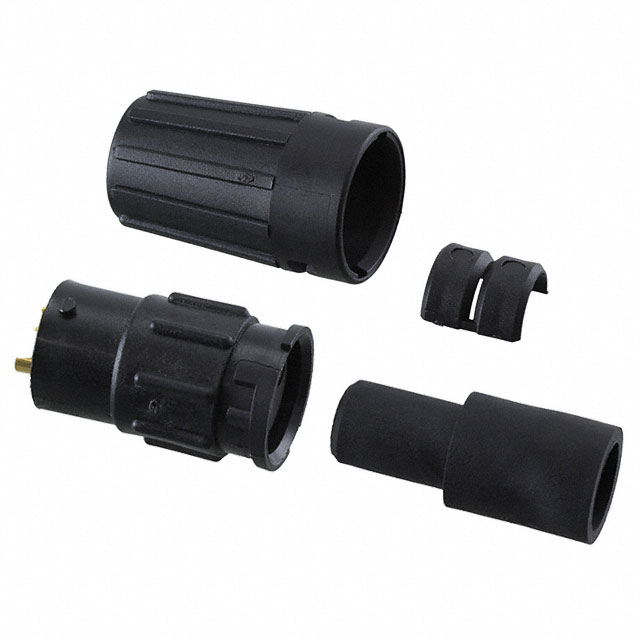

2 Position Circular Connector Receptacle, Female Sockets Solder Cup

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	8282-2SG-522	8282-2SG Series

Applications	Automotive, Communication Systems, Instrumentation	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Cable Opening	-	0.16 - 0.18 in
Cable Opening	-	0.18 - 0.2 in
Cable Opening	-	4.06 - 4.57 mm
Cable Opening	-	4.57 - 5.08 mm
Cable Opening	-	0.13 - 0.17 in
Cable Opening	-	3.3 - 4.32 mm
Cable Opening	-	2.29 mm
Cable Opening	-	0.09 - 0.14 in
Cable Opening	-	3.56 mm
Cable Opening	-	5.84 mm
Cable Opening [Max] [diameter]	6.35 mm	5.33 - 6.35 mm
Cable Opening [Max] [diameter]	0.25 in	0.21 - 0.25 in
Cable Opening [Min] [diameter]	0.22 in	0.19 - 0.22 in
Cable Opening [Min] [diameter]	5.59 mm	4.83 - 5.59 mm
Color	Black	Black
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Material	Brass	Brass
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Backshell	Backshell
Ingress Protection	Weathertight	Weathertight
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	2	2
Operating Temperature [Max]	115 °C	115 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Voltage Rating	600 V	600 V

8282-2SG Series

CONN RCPT FMALE 2P GOLD SLDR CUP

Part	Voltage Rating	Number of Positions	Connector Type	Backshell Material, Plating	Contact Material	Mounting Type	Features	Primary Material	Fastening Type	Ingress Protection	Applications	Orientation	Color	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Current Rating (Amps)	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [Max] [diameter]
Conxall/Switchcraft 8282-2SG-516	600 V	2	Receptacle, Female Sockets	Nylon, Polyamide (PA)	Brass	Free Hanging (In-Line)	Backshell	Plastic	Bayonet Lock	Weathertight	Automotive, Communication Systems, Instrumentation	Keyed	Black	Unshielded	-40 °C	115 °C	Gold	0.16 in	0.18 in	4.06 mm	4.57 mm	Varies by Wire Gauge
Conxall/Switchcraft 8282-2SG-513	600 V	2	Receptacle, Female Sockets	Nylon, Polyamide (PA)	Brass	Free Hanging (In-Line)	Backshell	Plastic	Bayonet Lock	Weathertight	Automotive, Communication Systems, Instrumentation	Keyed	Black	Unshielded	-40 °C	115 °C	Gold					Varies by Wire Gauge	0.13 in, 0.15 in	3.3 mm, 3.81 mm
Conxall/Switchcraft 8282-2SG-522	600 V	2	Receptacle, Female Sockets	Nylon, Polyamide (PA)	Brass	Free Hanging (In-Line)	Backshell	Plastic	Bayonet Lock	Weathertight	Automotive, Communication Systems, Instrumentation	Keyed	Black	Unshielded	-40 °C	115 °C	Gold					Varies by Wire Gauge			6.35 mm	0.25 in	0.22 in	5.59 mm
Conxall/Switchcraft 8282-2SG-3DC	600 V	2	Receptacle, Female Sockets	Nylon, Polyamide (PA)	Brass	Free Hanging (In-Line)	Backshell	Plastic	Bayonet Lock	Weathertight	Automotive, Communication Systems, Instrumentation	Keyed	Black	Unshielded	-40 °C	115 °C	Gold					Varies by Wire Gauge
Conxall/Switchcraft 8282-2SG-318	600 V	2	Receptacle, Female Sockets	Nylon, Polyamide (PA)	Brass	Free Hanging (In-Line)	Backshell	Plastic	Bayonet Lock	Weathertight	Automotive, Communication Systems, Instrumentation	Keyed	Black	Unshielded	-40 °C	115 °C	Gold	0.18 in	0.2 in	4.57 mm	5.08 mm	Varies by Wire Gauge
Conxall/Switchcraft 8282-2SG-311	600 V	2	Receptacle, Female Sockets	Nylon, Polyamide (PA)	Brass	Free Hanging (In-Line)	Backshell	Plastic	Bayonet Lock	Weathertight	Automotive, Communication Systems, Instrumentation	Keyed	Black	Unshielded	-40 °C	115 °C	Gold					Varies by Wire Gauge							2.29 mm	0.09 in, 0.14 in	3.56 mm
Conxall/Switchcraft 8282-2SG-315	600 V	2	Receptacle, Female Sockets	Nylon, Polyamide (PA)	Brass	Free Hanging (In-Line)	Backshell	Plastic	Bayonet Lock	Weathertight	Automotive, Communication Systems, Instrumentation	Keyed	Black	Unshielded	-40 °C	115 °C	Gold					Varies by Wire Gauge	0.15 in, 0.17 in	3.81 mm, 4.32 mm
Conxall/Switchcraft 8282-2SG-519	600 V	2	Receptacle, Female Sockets	Nylon, Polyamide (PA)	Brass	Free Hanging (In-Line)	Backshell	Plastic	Bayonet Lock	Weathertight	Automotive, Communication Systems, Instrumentation	Keyed	Black	Unshielded	-40 °C	115 °C	Gold					Varies by Wire Gauge			5.33 mm	0.21 in	0.19 in	4.83 mm
Conxall/Switchcraft 8282-2SG-321	600 V	2	Receptacle, Female Sockets	Nylon, Polyamide (PA)	Brass	Free Hanging (In-Line)	Backshell	Plastic	Bayonet Lock	Weathertight	Automotive, Communication Systems, Instrumentation	Keyed	Black	Unshielded	-40 °C	115 °C	Gold					Varies by Wire Gauge				0.23 in	0.21 in	5.33 mm				5.84 mm
