15-000493
ActiveAmphenol CONEC

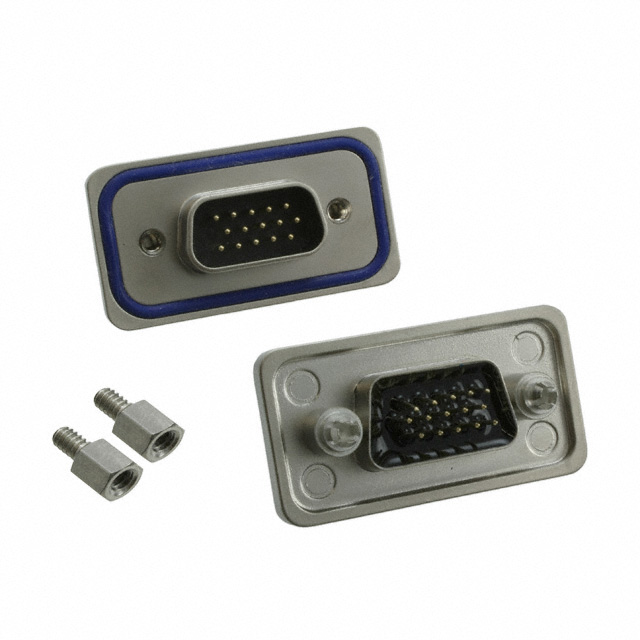

CONN D-SUB HD PLUG 15POS PNL MNT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
15-000493
ActiveAmphenol CONEC
CONN D-SUB HD PLUG 15POS PNL MNT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 15-000493 |
|---|---|
| Color | Black |
| Connector Style | High Density, D-Sub |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | 8 çin |
| Contact Finish Thickness | 0.203 çm |
| Contact Material | Copper Alloy |
| Contact Type | Signal |
| Current Rating (Amps) | 3 A |
| Dielectric Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Flange Feature | Female Screwlock (4-40), Mating Side |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions | 15 |
| Number of Rows | 3 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -25 °C |
| Shell Material, Finish | Nickel Plated, Zinc Die Cast |
| Shell Size, Connector Layout [custom] | DE, E |
| Shell Size, Connector Layout [custom] | 1 |
| Shell Size, Connector Layout [custom] | High Density |
| Termination | Solder |
| Voltage Rating | 60 VDC |
15-0004 Series
| Part | Ingress Protection | Number of Positions | Contact Finish Thickness | Contact Finish Thickness | Shell Material, Finish | Termination | Color | Contact Material | Material Flammability Rating | Mounting Type | Voltage Rating | Contact Finish | Connector Type | Number of Rows | Dielectric Material | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Connector Style | Contact Type | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Flange Feature | Shell Size, Connector Layout | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol CONEC | IP67 - Dust Tight Waterproof | 15 | 8 çin | 0.203 çm | Nickel Plated Zinc Die Cast | Solder | Black | Copper Alloy | UL94 V-0 | Panel Mount Through Hole | 60 VDC | Gold | Male Pins Plug | 3 | Polybutylene Terephthalate (PBT) Glass Filled | DE E | 1 | High Density | D-Sub High Density | Signal | 3 A | -25 °C | 105 ░C | Female Screwlock (4-40) Mating Side | ||||
Amphenol CONEC | IP67 - Dust Tight Waterproof | 37 | 8 çin | 0.203 çm | Nickel Plated Zinc Die Cast | Solder | Black | Copper Alloy | UL94 V-0 | Panel Mount Through Hole | 125 VDC | Gold | Receptacle Female Sockets | 2 | Polybutylene Terephthalate (PBT) Glass Filled | D-Sub | Signal | 7.5 A | -25 °C | 105 ░C | Female Screwlock (4-40) Mating Side | 4 (DC C) | ||||||
Amphenol CONEC | IP67 - Dust Tight Waterproof | 8 çin | 0.203 çm | Nickel Plated Zinc Die Cast | Solder | Black | Copper Alloy | UL94 V-0 | Panel Mount Through Hole | 125 VDC | Gold | Receptacle Female Sockets | 2 | Polybutylene Terephthalate (PBT) Glass Filled | D-Sub | Signal | 7.5 A | -25 °C | 105 ░C | Female Screwlock (4-40) Mating Side | B DB | 3 | ||||||
Amphenol CONEC | IP67 - Dust Tight Waterproof | 15 | 8 çin | 0.203 çm | Nickel Plated Zinc Die Cast | Solder | Black | Copper Alloy | UL94 V-0 | Panel Mount Through Hole | 125 VDC | Gold | Male Pins Plug | 2 | Polybutylene Terephthalate (PBT) Glass Filled | D-Sub | Signal | 7.5 A | -25 °C | 105 ░C | Female Screwlock (4-40) Mating Side | 2 | ||||||
Amphenol CONEC | IP67 - Dust Tight Waterproof | 9 | 8 çin | 0.203 çm | Nickel Plated Zinc Die Cast | Solder | Black | Copper Alloy | UL94 V-0 | Panel Mount Through Hole | 125 VDC | Gold | Male Pins Plug | 2 | Polybutylene Terephthalate (PBT) Glass Filled | D-Sub | Signal | 7.5 A | -25 °C | 105 ░C | Female Screwlock (4-40) Mating Side | DE E | 1 | |||||
Amphenol CONEC | IP67 - Dust Tight Waterproof | 37 | 8 çin | 0.203 çm | Nickel Plated Zinc Die Cast | Solder | Black | Copper Alloy | UL94 V-0 | Panel Mount Through Hole | 125 VDC | Gold | Male Pins Plug | 2 | Polybutylene Terephthalate (PBT) Glass Filled | D-Sub | Signal | 7.5 A | -25 °C | 105 ░C | Female Screwlock (4-40) Mating Side | 4 (DC C) | ||||||
Amphenol CONEC | IP67 - Dust Tight Waterproof | 9 | 8 çin | 0.203 çm | Nickel Plated Zinc Die Cast | Solder | Black | Copper Alloy | UL94 V-0 | Panel Mount Through Hole | 125 VDC | Gold | Receptacle Female Sockets | 2 | Polybutylene Terephthalate (PBT) Glass Filled | D-Sub | Signal | 7.5 A | -25 °C | 105 ░C | Female Screwlock (4-40) Mating Side | DE E | 1 | |||||
Amphenol CONEC | IP67 - Dust Tight Waterproof | 15 | 8 çin | 0.203 çm | Nickel Plated Zinc Die Cast | Solder | Black | Copper Alloy | UL94 V-0 | Panel Mount Through Hole | 125 VDC | Gold | Receptacle Female Sockets | 2 | Polybutylene Terephthalate (PBT) Glass Filled | D-Sub | Signal | 7.5 A | -25 °C | 105 ░C | Female Screwlock (4-40) Mating Side | 2 | ||||||
Amphenol CONEC | IP67 - Dust Tight Waterproof | 8 çin | 0.203 çm | Nickel Plated Zinc Die Cast | Solder | Black | Copper Alloy | UL94 V-0 | Panel Mount Through Hole | 125 VDC | Gold | Male Pins Plug | 2 | Polybutylene Terephthalate (PBT) Glass Filled | D-Sub | Signal | 7.5 A | -25 °C | 105 ░C | Female Screwlock (4-40) Mating Side | B DB | 3 |
