837-017-540-607
ActiveEDAC Inc.

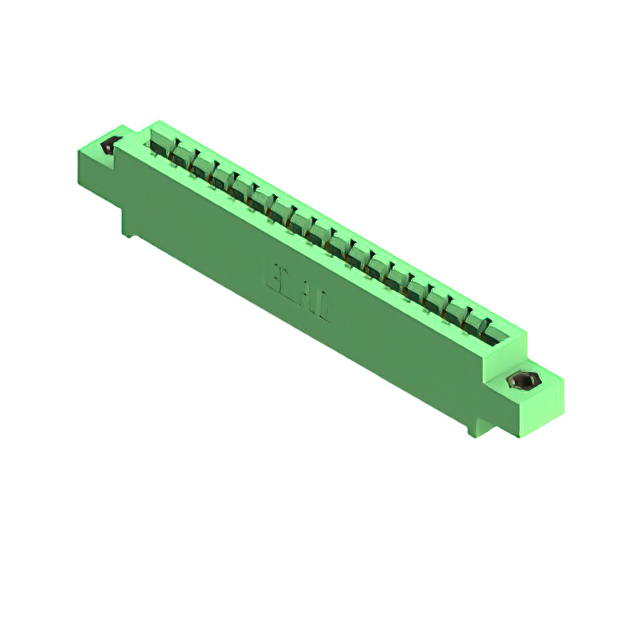

CONN EDGE SGL FMALE 17POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
837-017-540-607
ActiveEDAC Inc.
CONN EDGE SGL FMALE 17POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 837-017-540-607 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | M3, Threaded Insert, Top Mount Opening |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Single |
| Termination | Wire Wrap |
| Termination Rows | 1 |
837-017 Series
...
| Part | Pitch [x] | Pitch [x] | Number of Rows | Mounting Type | Contact Material | Termination Rows | Card Type | Termination | Contact Finish | Color | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish Thickness | Contact Finish Thickness | Contact Type | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Gender | Read Out | Material - Insulation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 0.156 in | 3.96 mm | 1 | Through Hole | Copper Alloy | 1 | Non Specified - Single Edge | Solder | Gold | Green | 125 °C | -40 °C | 10 Áin | 0.25 Ám | Cantilever | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Single | Diallyl Phthalate (DAP) |
EDAC Inc. | 0.156 in | 3.96 mm | 1 | Through Hole | Copper Alloy | 1 | Non Specified - Single Edge | Solder | Gold | Green | 125 °C | -40 °C | 10 Áin | 0.25 Ám | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Single | Diallyl Phthalate (DAP) | |||
EDAC Inc. | 0.156 in | 3.96 mm | 1 | Through Hole | Copper Alloy | 1 | Non Specified - Single Edge | Solder | Gold | Green | 125 °C | -40 °C | 10 Áin | 0.25 Ám | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Single | Diallyl Phthalate (DAP) | |||
EDAC Inc. | 0.156 in | 3.96 mm | 1 | Through Hole | Copper Alloy | 1 | Non Specified - Single Edge | Solder | Gold | Green | 125 °C | -40 °C | 10 Áin | 0.25 Ám | Cantilever | 4-40 Flush Mount Threaded Insert Top Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Single | Diallyl Phthalate (DAP) | ||
EDAC Inc. | 0.156 in | 3.96 mm | 1 | Through Hole | Copper Alloy | 1 | Non Specified - Single Edge | Solder | Gold | Green | 125 °C | -40 °C | 10 Áin | 0.25 Ám | Cantilever | M3 Threaded Insert Top Mount Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Single | Diallyl Phthalate (DAP) | ||
EDAC Inc. | 0.156 in | 3.96 mm | 1 | Through Hole | Copper Alloy | 1 | Non Specified - Single Edge | Solder | Gold | Green | 125 °C | -40 °C | 10 Áin | 0.25 Ám | Cantilever | M3 Threaded Insert Top Mount Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Single | Diallyl Phthalate (DAP) | ||
EDAC Inc. | 0.156 in | 3.96 mm | 1 | Through Hole | Copper Alloy | 1 | Non Specified - Single Edge | Solder | Gold | Green | 125 °C | -40 °C | 10 Áin | 0.25 Ám | Cantilever | 4-40 Threaded Insert Top Mount Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Single | Diallyl Phthalate (DAP) | ||
EDAC Inc. | 0.156 in | 3.96 mm | 1 | Through Hole | Copper Alloy | 1 | Non Specified - Single Edge | Wire Wrap | Gold | Green | 125 °C | -40 °C | 10 Áin | 0.25 Ám | Cantilever | M3 Threaded Insert Top Mount Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Single | Diallyl Phthalate (DAP) | ||
EDAC Inc. | 0.156 in | 3.96 mm | 1 | Through Hole | Copper Alloy | 1 | Non Specified - Single Edge | Solder | Gold | Green | 125 °C | -40 °C | 10 Áin | 0.25 Ám | Cantilever | 4-40 Flush Mount Threaded Insert Top Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Single | Diallyl Phthalate (DAP) | ||
EDAC Inc. | 0.156 in | 3.96 mm | 1 | Through Hole | Copper Alloy | 1 | Non Specified - Single Edge | Wire Wrap | Gold | Green | 125 °C | -40 °C | 10 Áin | 0.25 Ám | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Single | Diallyl Phthalate (DAP) |
