M50-3111042

Active

Harwin Inc.

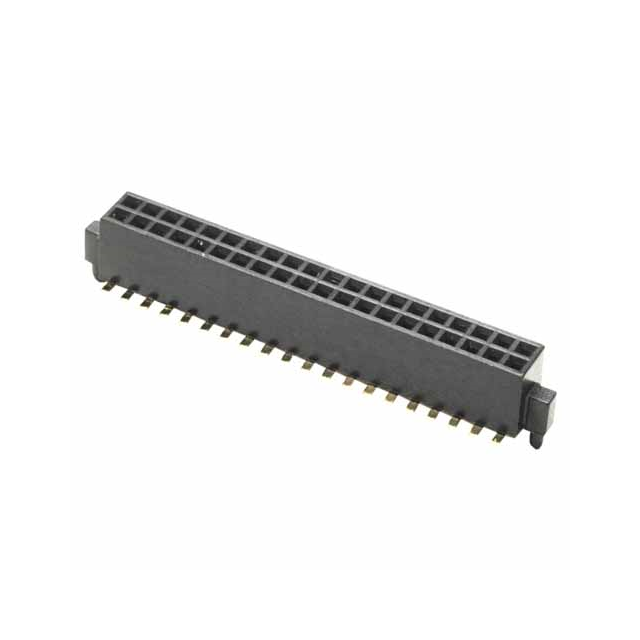

10+10 POS. FEMALE DIL VERTICAL SMT CONN. ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet M50,M52 Series Spec Sheet +2

M50-3111042

Active

Harwin Inc.

10+10 POS. FEMALE DIL VERTICAL SMT CONN. ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet M50,M52 Series Spec Sheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M50-3111042

Applications	General Purpose, Medical, Telecommunications
Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	Flash
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Fastening Type	Push-Pull
Features	Board Guide
Insulation Color	Black
Insulation Height	4.3 mm
Insulation Height	0.169 "
Insulation Material	Nylon 6T, Polyamide (PA6T)
Mated Stacking Heights	6.18 mm, 5.5 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Style	Board to Board, Cable
Termination	Solder

M50-311 Series

Part	Row Spacing - Mating	Row Spacing - Mating	Material Flammability Rating	Number of Rows	Pitch - Mating	Pitch - Mating	Contact Finish - Mating	Insulation Height	Insulation Height	Mated Stacking Heights	Number of Positions	Contact Type	Style	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Contact Shape	Insulation Material	Applications	Contact Material	Fastening Type	Number of Positions Loaded	Insulation Color	Contact Finish Thickness - Mating	Mounting Type	Features	Termination
Harwin Inc. M50-3113042	0.05 in	1.27 mm	UL94 V-0	2	0.05 in	1.27 mm	Gold	4.3 mm	0.169 "	5.5 mm 6.18 mm	60	Female Socket	Board to Board Cable	Receptacle	-40 °C	105 ░C	Tin	Square	Nylon 6T Polyamide (PA6T)	General Purpose Medical Telecommunications	Phosphor Bronze	Push-Pull	All	Black	Flash	Surface Mount	Board Guide	Solder
Harwin Inc. M50-3112542	0.05 in	1.27 mm	UL94 V-0	2	0.05 in	1.27 mm	Gold	4.3 mm	0.169 "	5.5 mm 6.18 mm	50	Female Socket	Board to Board Cable	Receptacle	-40 °C	105 ░C	Tin	Square	Nylon 6T Polyamide (PA6T)	General Purpose Medical Telecommunications	Phosphor Bronze	Push-Pull	All	Black	Flash	Surface Mount	Board Guide	Solder
Harwin Inc. M50-3110542	0.05 in	1.27 mm	UL94 V-0	2	0.05 in	1.27 mm	Gold	4.6 mm	0.181 in	5.5 mm 6.18 mm	10	Female Socket	Board to Board Cable	Receptacle	-40 °C	105 ░C	Tin	Square	Nylon 6T Polyamide (PA6T)	General Purpose Medical Telecommunications	Phosphor Bronze	Push-Pull	All	Black	Flash	Surface Mount	Board Guide	Solder
Harwin Inc. M50-3111042	0.05 in	1.27 mm	UL94 V-0	2	0.05 in	1.27 mm	Gold	4.3 mm	0.169 "	5.5 mm 6.18 mm	20	Female Socket	Board to Board Cable	Receptacle	-40 °C	105 ░C	Tin	Square	Nylon 6T Polyamide (PA6T)	General Purpose Medical Telecommunications	Phosphor Bronze	Push-Pull	All	Black	Flash	Surface Mount	Board Guide	Solder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 3.99
		36	$ 3.44
		108	$ 3.20
		504	$ 2.72
		1008	$ 2.32
Newark	Each	100	$ 3.33
		250	$ 3.07
		500	$ 2.84
		1000	$ 2.60
		2500	$ 2.35

Description

General part information

M50-311 Series

20 Position Receptacle Connector 0.050" (1.27mm) Surface Mount Gold

Documents

Technical documentation and resources

Datasheet

M50,M52 Series Spec Sheet

Datasheet

M50-3111042

Deep-Dive with AI

M50-3111042

Deep-Dive with AI

Technical Specifications

M50-311 Series

Pricing

Description

M50-311 Series

Documents

Datasheet

M50,M52 Series Spec Sheet

M50-3530842

M50-3000345

M50-311 Series
