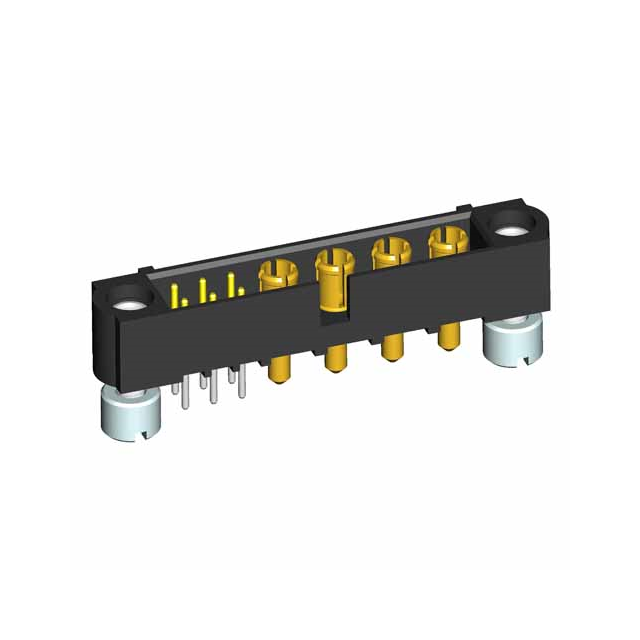

M80-5T10642M2-00-000-04-331

Active

Harwin Inc.

CONN HEADER VERT 10POS 2MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet M80, M83 Series Spec Sheet +2

M80-5T10642M2-00-000-04-331

Active

Harwin Inc.

CONN HEADER VERT 10POS 2MM

Deep-Dive with AI

DocumentsDatasheet M80, M83 Series Spec Sheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M80-5T10642M2-00-000-04-331

Connector Type	Header
Contact Finish - Mating	Gold
Contact Length - Post	0.13 in
Contact Length - Post	3.3 mm
Contact Shape	Circular
Contact Type	Male Pin
Features	Mounting Flange, Mating Flange, Mounting Hardware, Keying Slot
Insulation Color	Black
Insulation Height	5.6 mm
Insulation Height	0.22 in
Insulation Material	Polyphenylene Sulfide (PPS), Glass Filled
Mated Stacking Heights	7.3 mm, 9.75 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	10
Number of Positions [custom]	6
Number of Positions [custom]	4
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

M80-5T1 Series

Part	Connector Type	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Shape	Mated Stacking Heights	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions Loaded	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Pitch - Mating [x]	Pitch - Mating [x]	Row Spacing - Mating	Row Spacing - Mating	Mounting Type	Voltage Rating	Contact Type	Material Flammability Rating	Features	Contact Length - Post	Contact Length - Post	Contact Material	Contact Finish - Mating	Insulation Material	Contact Finish - Post	Number of Rows	Number of Positions	Fastening Type	Termination	Style	Insulation Color	Shrouding	Insulation Height	Insulation Height	Contact Finish Thickness - Post	Number of Positions [custom]	Number of Positions [x]	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]
Harwin Inc. M80-5T11442MC	Header	2.2 A	29.5 Áin	0.75 Ám	Circular	7.3 mm 7.7 mm 9.75 mm 10.75 mm 13.35 mm 14.75 mm	121 °C	-55 °C	All	3 µm	118.1 µin	0.079 in	2 mm	0.079 in	2 mm	Through Hole	120 VDC	Male Pin	UL94 V-0	Keying Slot Mating Flange	0.13 in	3.3 mm	Phosphor Bronze	Gold	Polyphenylene Sulfide (PPS) Glass Filled	Tin	2	14	Push-Turn Lock	Solder	Board to Board Cable	Black	Shrouded - 4 Wall	5.6 mm	0.22 in
Harwin Inc. M80-5T14242M3	Header	2.2 A	29.5 Áin	0.75 Ám	Circular	7.3 mm 7.8 mm	125 °C	-55 °C	All	0.3 µm	12 µin	0.079 in	2 mm	0.079 in	2 mm	Through Hole	800 VAC	Male Pin	UL94 V-0	Keying Slot Mating Flange Mounting Flange Mounting Hardware	0.13 in	3.3 mm	Phosphor Bronze	Gold	Polyphenylene Sulfide (PPS) Glass Filled	Tin	2	42		Solder	Board to Board Cable	Black	Shrouded - 4 Wall	5.6 mm	0.22 in
Harwin Inc. M80-5T11405M3-00-000-03-331	Header	2.2 A 20 A	29.5 Áin	0.75 Ám	Circular	7.3 mm	125 °C	-55 °C	All	0.75 µm						Through Hole	800 VAC	Male Pin Power	UL94 V-0	Keying Slot Mating Flange Mounting Flange Mounting Hardware	0.13 in	3.3 mm	Copper Alloy Phosphor Bronze	Gold	Polyphenylene Sulfide (PPS) Glass Filled	Gold		17		Solder	Board to Cable/Wire	Black	Shrouded - 4 Wall	5.6 mm	0.22 in	29.5 µin	3
Harwin Inc. M80-5T11205M3-04-331-00-000	Header	2.2 A 20 A	29.5 Áin	0.75 Ám	Circular	7.3 mm	125 °C	-55 °C	All	0.75 µm						Through Hole	800 VAC	Male Pin Power	UL94 V-0	Keying Slot Mating Flange Mounting Flange Mounting Hardware	0.13 in	3.3 mm	Copper Alloy Phosphor Bronze	Gold	Polyphenylene Sulfide (PPS) Glass Filled	Gold				Solder	Board to Cable/Wire	Black	Shrouded - 4 Wall	5.6 mm	0.22 in	29.5 µin	4	12
Harwin Inc. M80-5T15042MC	Header	2.2 A	29.5 Áin	0.75 Ám	Circular	7.3 mm 7.7 mm 9.75 mm 10.75 mm 13.35 mm 14.75 mm	121 °C	-55 °C	All	3 µm	118.1 µin	0.079 in	2 mm	0.079 in	2 mm	Through Hole	120 VDC	Male Pin	UL94 V-0	Keying Slot Mating Flange	0.13 in	3.3 mm	Phosphor Bronze	Gold	Polyphenylene Sulfide (PPS) Glass Filled	Tin	2	50	Push-Turn Lock	Solder	Board to Board Cable	Black	Shrouded - 4 Wall	5.6 mm	0.22 in
Harwin Inc. M80-5T12042MC	Header	2.2 A	29.5 Áin	0.75 Ám	Circular	7.3 mm 7.7 mm 9.75 mm 10.75 mm 13.35 mm 14.75 mm	121 °C	-55 °C	All	3 µm	118.1 µin	0.079 in	2 mm	0.079 in	2 mm	Through Hole	120 VDC	Male Pin	UL94 V-0	Keying Slot Mating Flange	0.13 in	3.3 mm	Phosphor Bronze	Gold	Polyphenylene Sulfide (PPS) Glass Filled	Tin	2	20	Push-Turn Lock	Solder	Board to Board Cable	Black	Shrouded - 4 Wall	5.6 mm	0.22 in
Harwin Inc. M80-5T10605M2-02-331-00-000	Header	2.2 A 20 A	29.5 Áin	0.75 Ám	Circular	7.3 mm	125 °C	-55 °C	All			0.079 in	2 mm	0.079 in	2 mm	Through Hole	800 VAC	Male Pin	UL94 V-0	Keying Slot Mating Flange Mounting Flange Mounting Hardware	0.13 in	3.3 mm	Copper Alloy Phosphor Bronze	Gold	Polyphenylene Sulfide (PPS) Glass Filled		2			Solder	Board to Cable/Wire	Black	Shrouded - 4 Wall	5.6 mm	0.22 in		2		8	6
Harwin Inc. M80-5T10605M3-04-331-00-000	Header	2.2 A 20 A	29.5 Áin	0.75 Ám	Circular	7.3 mm	125 °C	-55 °C	All	0.75 µm						Through Hole	800 VAC	Male Pin Power	UL94 V-0	Keying Slot Mating Flange Mounting Flange Mounting Hardware	0.13 in	3.3 mm	Copper Alloy Phosphor Bronze	Gold	Polyphenylene Sulfide (PPS) Glass Filled	Gold		10		Solder	Board to Board Cable	Black	Shrouded - 4 Wall	5.6 mm	0.22 in	29.5 µin	4				6
Harwin Inc. M80-5T10642M2-00-000-04-331	Header				Circular	7.3 mm 9.75 mm	125 °C	-55 °C	All			0.079 in	2 mm	0.079 in	2 mm	Through Hole		Male Pin	UL94 V-0	Keying Slot Mating Flange Mounting Flange Mounting Hardware	0.13 in	3.3 mm		Gold	Polyphenylene Sulfide (PPS) Glass Filled		2	10		Solder	Board to Cable/Wire	Black	Shrouded - 4 Wall	5.6 mm	0.22 in		4				6
Harwin Inc. M80-5T12642MC	Header	2.2 A	29.5 Áin	0.75 Ám	Circular	7.3 mm 7.7 mm 9.75 mm 10.75 mm 13.35 mm 14.75 mm	121 °C	-55 °C	All	3 µm	118.1 µin	0.079 in	2 mm	0.079 in	2 mm	Through Hole	120 VDC	Male Pin	UL94 V-0	Keying Slot Mating Flange	0.13 in	3.3 mm	Phosphor Bronze	Gold	Polyphenylene Sulfide (PPS) Glass Filled	Tin	2	26	Push-Turn Lock	Solder	Board to Board Cable	Black	Shrouded - 4 Wall	5.6 mm	0.22 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

M80-5T1 Series

Connector Header Through Hole 10 (6 + 4 Power) position 0.079" (2.00mm)
