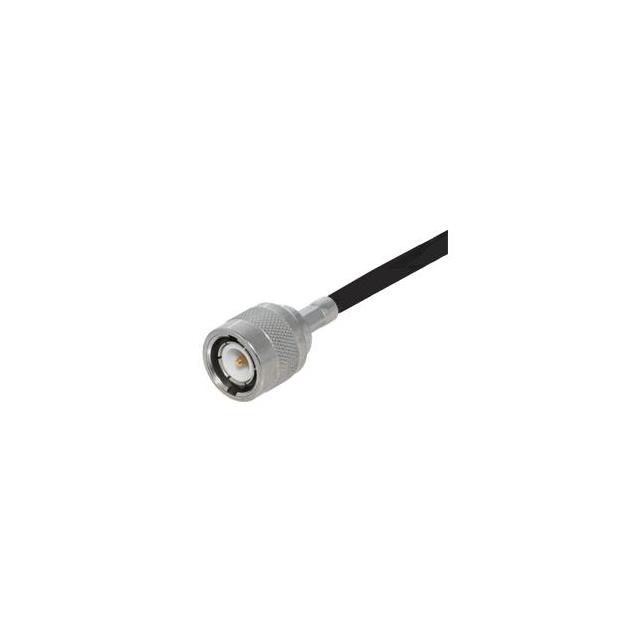

11_C-50-3-7/133_NE

Active

Huber+Suhner, Inc.

11_C-50-3-7/133_NE

Search across all available documentation for this part.

Active

Huber+Suhner, Inc.

11_C-50-3-7/133_NE

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	11_C-50-3-7/133_NE	11_C-50 Series

Body Finish	White Bronze	White Bronze
Body Material	Brass	Brass
Cable Group	RG-58	RG-214, RG-58
Center Contact Material	Brass	Brass
Center Contact Plating	Gold	Gold
Connector Style	C Type	C Type
Connector Type	Male Pin, Plug	Male Pin, Plug
Contact Termination	Crimp	Solder, Crimp
Dielectric Material	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock	Bayonet Lock
Frequency - Max [Max]	11 GHz	11 GHz
Housing Color	Silver	Silver
Impedance	50 Ohms	50 Ohms
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Ports	1	1
Operating Temperature [Max]	165 °C	165 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Shield Termination	Crimp	Clamp, Crimp

11_C-50-7-6/133_NE

Part	Body Finish	Body Material	Connector Type	Number of Ports	Frequency - Max [Max]	Mounting Type	Center Contact Material	Contact Termination	Connector Style	Housing Color	Dielectric Material	Center Contact Plating	Operating Temperature [Min]	Operating Temperature [Max]	Shield Termination	Fastening Type	Impedance	Cable Group
Huber+Suhner, Inc. 11_C-50-7-6/133_NE	White Bronze	Brass	Male Pin, Plug	1	11 GHz	Free Hanging (In-Line)	Brass	Solder	C Type	Silver	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)	Gold	-65 ░C	165 °C	Clamp	Bayonet Lock	50 Ohms	RG-214
Huber+Suhner, Inc. 11_C-50-7-15/133_NE	White Bronze	Brass	Male Pin, Plug	1	11 GHz	Free Hanging (In-Line)	Brass	Crimp	C Type	Silver	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)	Gold	-65 ░C	165 °C	Clamp	Bayonet Lock	50 Ohms	RG-214
Huber+Suhner, Inc. 11_C-50-3-7/133_NE	White Bronze	Brass	Male Pin, Plug	1	11 GHz	Free Hanging (In-Line)	Brass	Crimp	C Type	Silver	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)	Gold	-65 ░C	165 °C	Crimp	Bayonet Lock	50 Ohms	RG-58

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 133.83

General part information

C Type Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp
