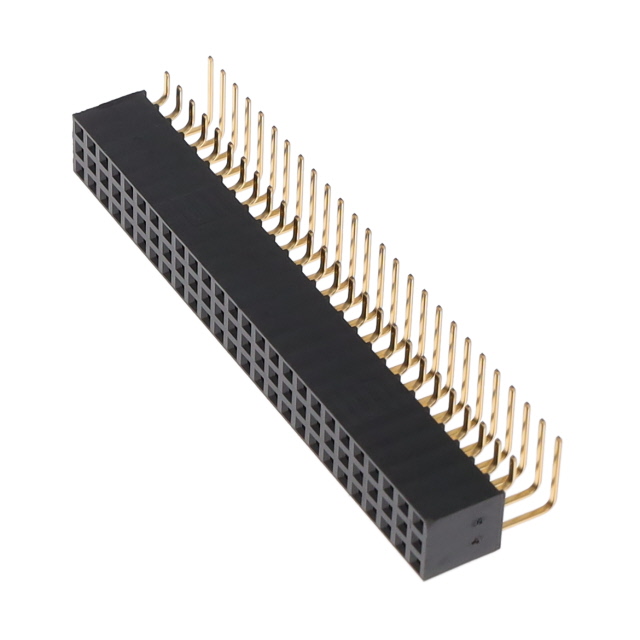

SSW-126-02-G-Q-RA

Active

Samtec Inc.

CONN RCPT 78POS 0.1 GOLD PCB R/A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SSW-126-02-G-Q-RA

Active

Samtec Inc.

CONN RCPT 78POS 0.1 GOLD PCB R/A

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SSW-126-02-G-Q-RA

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	0.51 µm
Contact Finish Thickness - Mating	20 µin
Contact Finish Thickness - Post	3 µin
Contact Finish Thickness - Post	0.076 µm
Contact Length - Post	2.54 mm
Contact Length - Post	0.1 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Forked
Current Rating (Amps)	4.7 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.295 in
Insulation Height	7.5 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	78
Number of Positions Loaded	52
Number of Rows	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Style	Board to Board, Cable
Termination	Solder

SSW-126 Series

Part	Number of Positions Loaded	Contact Finish - Post	Termination	Contact Finish - Mating	Style	Mounting Type	Contact Material	Fastening Type	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Number of Rows	Insulation Height	Insulation Height	Insulation Material	Current Rating (Amps)	Contact Shape	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Number of Positions	Material Flammability Rating	Contact Length - Post	Contact Length - Post	Number of Positions Loaded	Features
Samtec Inc. SSW-126-02-G-D-RA	All	Gold	Solder	Gold	Board to Board Cable	Through Hole Right Angle	Phosphor Bronze	Push-Pull	Receptacle	0.51 µm	20 µin	0.1 in	2.54 mm	2	0.195 in	4.95 mm	Liquid Crystal Polymer (LCP)	4.7 A	Square	3 µin	0.076 µm	2.54 mm	0.1 in	Black	-55 °C	125 °C	Forked	52	UL94 V-0	2.54 mm	0.1 in
Samtec Inc. SSW-126-06-G-S	All	Gold	Solder	Gold	Board to Board Cable	Through Hole	Phosphor Bronze	Push-Pull	Receptacle	0.51 µm	20 µin	0.1 in	2.54 mm	1	0.335 "	8.51 mm	Liquid Crystal Polymer (LCP)	4.7 A	Square	3 µin	0.076 µm			Black	-55 °C	125 °C	Forked	26	UL94 V-0	3.15 mm	0.124 "
Samtec Inc. SSW-126-01-T-S	All	Tin	Solder		Board to Board Cable	Through Hole	Phosphor Bronze	Push-Pull	Receptacle			0.1 in	2.54 mm	1	0.335 "	8.51 mm	Liquid Crystal Polymer (LCP)	4.7 A	Square					Black	-55 °C	105 ░C	Forked	26	UL94 V-0	2.64 mm	0.104 in
Samtec Inc. SSW-126-01-F-D	All	Tin	Solder	Gold	Board to Board Cable	Through Hole	Phosphor Bronze	Push-Pull	Receptacle	0.076 µm	3 µin	0.1 in	2.54 mm	2	0.335 "	8.51 mm	Liquid Crystal Polymer (LCP)	4.7 A	Square			2.54 mm	0.1 in	Black	-55 °C	125 °C	Forked	52	UL94 V-0	2.64 mm	0.104 in
Samtec Inc. SSW-126-02-G-Q-RA		Gold	Solder	Gold	Board to Board Cable	Through Hole Right Angle	Phosphor Bronze	Push-Pull	Receptacle	0.51 µm	20 µin	0.1 in	2.54 mm	3	0.295 in	7.5 mm	Liquid Crystal Polymer (LCP)	4.7 A	Square	3 µin	0.076 µm	2.54 mm	0.1 in	Black	-55 °C	125 °C	Forked	78	UL94 V-0	2.54 mm	0.1 in	52
Samtec Inc. SSW-126-02-T-S	All	Tin	Solder		Board to Board Cable	Through Hole	Phosphor Bronze	Push-Pull	Receptacle			0.1 in	2.54 mm	1	0.335 "	8.51 mm	Liquid Crystal Polymer (LCP)	4.7 A	Square					Black	-55 °C	105 ░C	Forked	26	UL94 V-0	4.93 mm	0.194 in
Samtec Inc. SSW-126-03-G-D	All	Gold	Solder	Gold	Board to Board Cable	Through Hole	Phosphor Bronze	Push-Pull	Receptacle	0.51 µm	20 µin	0.1 in	2.54 mm	2	0.335 "	8.51 mm	Liquid Crystal Polymer (LCP)	4.7 A	Square	3 µin	0.076 µm	2.54 mm	0.1 in	Black	-55 °C	125 °C	Forked	52	UL94 V-0	10 mm	0.394 in
Samtec Inc. SSW-126-02-S-T	All	Tin	Solder	Gold	Board to Board Cable	Through Hole	Phosphor Bronze	Push-Pull	Receptacle	0.76 Ám	30 Áin	0.1 in	2.54 mm	3	0.335 "	8.51 mm	Liquid Crystal Polymer (LCP)	4.7 A	Square			2.54 mm	0.1 in	Black	-55 °C	125 °C	Forked	78	UL94 V-0	4.93 mm	0.194 in
Samtec Inc. SSW-126-22-F-D-VS-K	All	Tin	Solder	Gold	Board to Board Cable	Surface Mount	Phosphor Bronze	Push-Pull	Receptacle	0.076 µm	3 µin	0.1 in	2.54 mm	2	0.335 "	8.51 mm	Liquid Crystal Polymer (LCP)	4.7 A	Square			2.54 mm	0.1 in	Black	-55 °C	125 °C	Forked	52	UL94 V-0				Pick and Place
Samtec Inc. SSW-126-22-G-D-VS	All	Gold	Solder	Gold	Board to Board Cable	Surface Mount	Phosphor Bronze	Push-Pull	Receptacle	0.51 µm	20 µin	0.1 in	2.54 mm	2	0.335 "	8.51 mm	Liquid Crystal Polymer (LCP)	4.7 A	Square	3 µin	0.076 µm	2.54 mm	0.1 in	Black	-55 °C	125 °C	Forked	52	UL94 V-0

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 9.60
		10	$ 9.40
		25	$ 9.21
		50	$ 8.88
		100	$ 7.88

Description

General part information

SSW-126 Series

78 Position Receptacle Connector 0.100" (2.54mm) Through Hole, Right Angle Gold
