Q-2F04W0008036i

Active

Amphenol Custom Cable

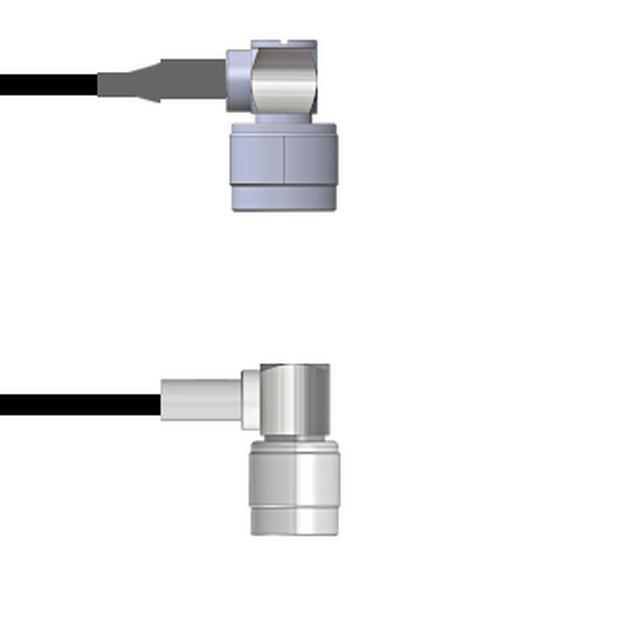

CBL ASSY NTYPE-TNC PLUG-PLUG 36"

Deep-Dive with AI

Search across all available documentation for this part.

Q-2F04W0008036i

Active

Amphenol Custom Cable

CBL ASSY NTYPE-TNC PLUG-PLUG 36"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2F04W0008036i

1st Connector	N-Type Plug, Right Angle
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	TNC Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-58
Color	Black
Features	Shielded
Frequency - Max [Max]	11 GHz
Length	91.44 cm
Length	36 in
Overall Impedance	50 Ohms

Q-2F04W0 Series

Part	Length	Length	Color	1st Connector	2nd Contact Gender	Overall Impedance	Frequency - Max [Max]	Features	2nd Connector	Cable Type	2nd Connector Mounting Type	1st Contact Gender	1st Connector Mounting Type	Length
Amphenol Custom Cable Q-2F04W0008012i	12 "	304.8 mm	Black	N-Type Plug Right Angle	Male	50 Ohms	11 GHz	Shielded	TNC Plug Right Angle	RG-58	Free Hanging (In-Line)	Male	Free Hanging (In-Line)
Amphenol Custom Cable Q-2F04W00081.5M	59.1 in	1.5 m	Black	N-Type Plug Right Angle	Male	50 Ohms	11 GHz	Shielded	TNC Plug Right Angle	RG-58	Free Hanging (In-Line)	Male	Free Hanging (In-Line)	4.9 ft
Amphenol Custom Cable Q-2F04W00082.5M	98.4 in	2.5 m	Black	N-Type Plug Right Angle	Male	50 Ohms	11 GHz	Shielded	TNC Plug Right Angle	RG-58	Free Hanging (In-Line)	Male	Free Hanging (In-Line)	8.2 '
Amphenol Custom Cable Q-2F04W0008036i	36 in	91.44 cm	Black	N-Type Plug Right Angle	Male	50 Ohms	11 GHz	Shielded	TNC Plug Right Angle	RG-58	Free Hanging (In-Line)	Male	Free Hanging (In-Line)
Amphenol Custom Cable Q-2F04W0008072i	72 in	1.8 m	Black	N-Type Plug Right Angle	Male	50 Ohms	11 GHz	Shielded	TNC Plug Right Angle	RG-58	Free Hanging (In-Line)	Male	Free Hanging (In-Line)	6 ft
Amphenol Custom Cable Q-2F04W0008001M	39.4 in	1 m	Black	N-Type Plug Right Angle	Male	50 Ohms	11 GHz	Shielded	TNC Plug Right Angle	RG-58	Free Hanging (In-Line)	Male	Free Hanging (In-Line)	3.3 ft
Amphenol Custom Cable Q-2F04W0008009i	9 "	228.6 mm	Black	N-Type Plug Right Angle	Male	50 Ohms	11 GHz	Shielded	TNC Plug Right Angle	RG-58	Free Hanging (In-Line)	Male	Free Hanging (In-Line)
Amphenol Custom Cable Q-2F04W0008002M	78.7 in	2 m	Black	N-Type Plug Right Angle	Male	50 Ohms	11 GHz	Shielded	TNC Plug Right Angle	RG-58	Free Hanging (In-Line)	Male	Free Hanging (In-Line)	6.6 ft
Amphenol Custom Cable Q-2F04W0008060i	5 '	1.5 m	Black	N-Type Plug Right Angle	Male	50 Ohms	11 GHz	Shielded	TNC Plug Right Angle	RG-58	Free Hanging (In-Line)	Male	Free Hanging (In-Line)	5 ft
Amphenol Custom Cable Q-2F04W0008048i	48 in	1200 mm	Black	N-Type Plug Right Angle	Male	50 Ohms	11 GHz	Shielded	TNC Plug Right Angle	RG-58	Free Hanging (In-Line)	Male	Free Hanging (In-Line)	4 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 78.91
		25	$ 77.39
		50	$ 75.87
		100	$ 74.35
		250	$ 72.83

Description

General part information

Q-2F04W0 Series

Cable Assembly Coaxial N-Type to TNC RG-58 36.00" (914.40mm)

Documents

Technical documentation and resources

No documents available
