SMH-107-02-G-D

Active

Samtec Inc.

.100" HORIZONTAL SURFACE MOUNT S

Search across all available documentation for this part.

Active

Samtec Inc.

.100" HORIZONTAL SURFACE MOUNT S

Technical Specifications

Parameters and characteristics for this part

Specification	SMH-107-02-G-D

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	0.51 µm
Contact Finish Thickness - Mating	20 µin
Contact Finish Thickness - Post	Flash
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Forked
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.195 in
Insulation Height	4.95 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	14
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Termination	Solder

Part	Contact Finish - Post	Contact Material	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Rows	Connector Type	Contact Finish Thickness - Post	Contact Finish - Mating	Contact Shape	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Fastening Type	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Termination	Insulation Material	Contact Type	Insulation Color	Material Flammability Rating	Insulation Height [z]	Insulation Height [z]
Samtec Inc. SMH-107-02-G-D	Gold	Phosphor Bronze	2.54 mm	0.1 in	2	Receptacle	Flash	Gold	Square	0.51 µm	20 µin	All	Push-Pull	0.1 in	2.54 mm	0.195 in	4.95 mm	14	-55 °C	125 °C	Surface Mount Right Angle	Solder	Liquid Crystal Polymer (LCP)	Forked	Black	UL94 V-0
Samtec Inc. SMH-107-02-G-S	Gold	Phosphor Bronze			1	Receptacle	Flash	Gold	Square	0.51 µm	20 µin	All	Push-Pull	0.1 in	2.54 mm			7	-55 °C	125 °C	Surface Mount Right Angle	Solder	Liquid Crystal Polymer (LCP)	Forked	Black	UL94 V-0	0.095 in	2.41 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

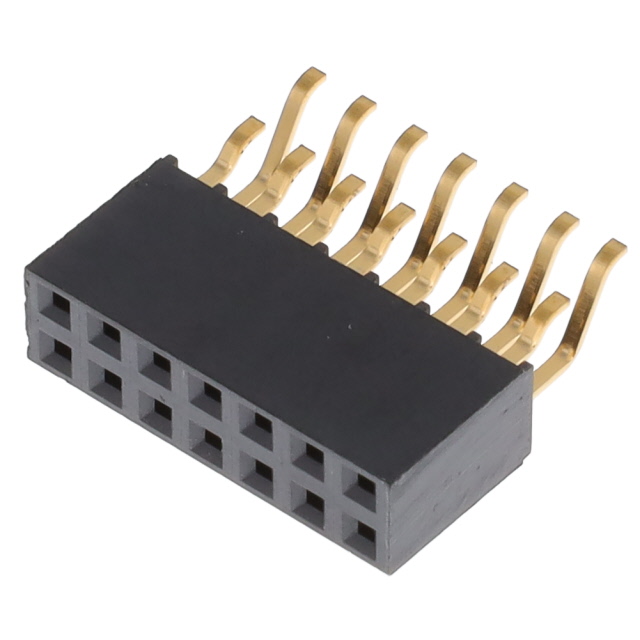

14 Position Receptacle Connector 0.100" (2.54mm) Surface Mount, Right Angle Gold
