829154-8

Active

TE Connectivity AMP Connectors

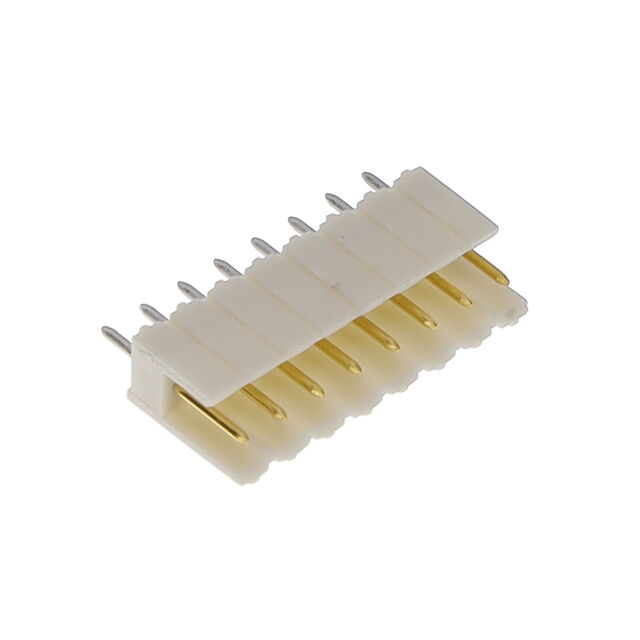

CONN HEADER VERT 8POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

829154-8

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 8POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.60
		10	$ 1.36
		100	$ 1.16
		500	$ 1.03
		1000	$ 0.98
		5000	$ 0.88
		10000	$ 0.84

Description

General part information

829154 Series

Connector Header Through Hole 8 position 0.100" (2.54mm)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	829154-8	829154 Series

Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin
Contact Finish Thickness - Mating	3 µin	3 µin
Contact Finish Thickness - Mating	0.076 µm	0.076 µm
Contact Finish Thickness - Post	2 çm	2 çm
Contact Finish Thickness - Post	78.7 çin	78.7 çin
Contact Length - Mating	5.21 mm	5.21 mm
Contact Length - Mating	0.205 in	0.205 in
Contact Length - Post	0.114 in	0.114 in
Contact Length - Post	2.9 mm	2.9 mm
Contact Material	Copper Zinc	Copper Zinc
Contact Shape	Circular	Circular
Contact Type	Male Pin	Male Pin
Fastening Type	Friction Lock	Friction Lock
Insulation Color	Natural	Natural
Insulation Height [z]	0.346 in	0.346 in
Insulation Height [z]	8.8 mm	8.8 mm
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	8	2 - 8
Number of Positions Loaded	All	All
Number of Rows	1	1
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Shrouding	Shrouded - 2 Wall	Shrouded - 2 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder

829154 Series

CONN HEADER VERT 3POS 2.54MM

Part	Contact Finish - Post	Contact Length - Post	Contact Length - Post	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Type	Number of Positions Loaded	Style	Insulation Color	Contact Shape	Termination	Pitch - Mating	Pitch - Mating	Insulation Height [z]	Insulation Height [z]	Contact Material	Mounting Type	Number of Rows	Contact Length - Mating	Contact Length - Mating	Contact Finish - Mating	Connector Type	Fastening Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Material	Shrouding	Number of Positions
TE Connectivity AMP Connectors 829154-3	Tin	0.114 in	2.9 mm	UL94 V-0	3 µin	0.076 µm	Male Pin	All	Board to Cable/Wire	Natural	Circular	Solder	0.1 in	2.54 mm	0.346 in	8.8 mm	Copper Zinc	Through Hole	1	5.21 mm	0.205 in	Gold	Header	Friction Lock	2 çm	78.7 çin	Polybutylene Terephthalate (PBT), Glass Filled	Shrouded - 2 Wall
TE Connectivity AMP Connectors 829154-8	Tin	0.114 in	2.9 mm	UL94 V-0	3 µin	0.076 µm	Male Pin	All	Board to Cable/Wire	Natural	Circular	Solder	0.1 in	2.54 mm	0.346 in	8.8 mm	Copper Zinc	Through Hole	1	5.21 mm	0.205 in	Gold	Header	Friction Lock	2 çm	78.7 çin	Polybutylene Terephthalate (PBT), Glass Filled	Shrouded - 2 Wall	8
TE Connectivity AMP Connectors 829154-2	Tin	0.114 in	2.9 mm	UL94 V-0	3 µin	0.076 µm	Male Pin	All	Board to Cable/Wire	Natural	Circular	Solder	0.1 in	2.54 mm	0.346 in	8.8 mm	Copper Zinc	Through Hole	1	5.21 mm	0.205 in	Gold	Header	Friction Lock	2 çm	78.7 çin	Polybutylene Terephthalate (PBT), Glass Filled	Shrouded - 2 Wall	2
TE Connectivity AMP Connectors 829154-4	Tin	0.114 in	2.9 mm	UL94 V-0	3 µin	0.076 µm	Male Pin	All	Board to Cable/Wire	Natural	Circular	Solder	0.1 in	2.54 mm	0.346 in	8.8 mm	Copper Zinc	Through Hole	1	5.21 mm	0.205 in	Gold	Header	Friction Lock	2 çm	78.7 çin	Polybutylene Terephthalate (PBT), Glass Filled	Shrouded - 2 Wall	4
