TSP2D447M010AH6510D540

Active

KEMET

CAP TANT 440UF 20% 10V SMD

Search across all available documentation for this part.

Active

KEMET

CAP TANT 440UF 20% 10V SMD

Technical Specifications

Parameters and characteristics for this part

Specification	TSP2D447M010AH6510D540

Capacitance	440 µF
ESR (Equivalent Series Resistance)	12.5 mOhm
Features	High Reliability
Height - Seated (Max) [Max] [z]	0.259 in
Height - Seated (Max) [Max] [z]	6.58 mm
Manufacturer Size Code	2D
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C

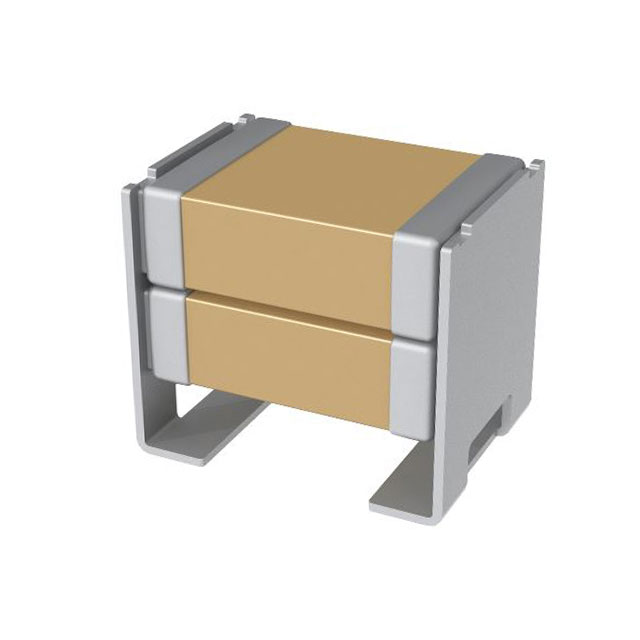

Package / Case	Stacked SMD, 2 J-Lead
Ratings	COTS
Size / Dimension [x]	0.315 "
Size / Dimension [x]	8 mm
Size / Dimension [y]	4.4 mm
Size / Dimension [y]	0.173 "
Tolerance	20 %
Type	Molded
Voltage - Rated	10 V

Part	Type	Features	Voltage - Rated	Ratings	Capacitance	Mounting Type	ESR (Equivalent Series Resistance)	Manufacturer Size Code	Tolerance	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Operating Temperature [Min]	Operating Temperature [Max]
KEMET TSP2D447M010AH6510D540	Molded	High Reliability	10 V	COTS	440 µF	Surface Mount	12.5 mOhm	2D	20 %	Stacked SMD 2 J-Lead	0.259 in	6.58 mm	4.4 mm	0.173 "	0.315 "	8 mm	-55 °C	125 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

440 µF Molded Tantalum Capacitors 10 V Stacked SMD, 2 J-Lead 12.5mOhm
