Q-1U03I00052.5M

Active

Amphenol Custom Cable

CBL ASSY SMB-NTYPE JCK-JCK 8.2'

Search across all available documentation for this part.

Active

Amphenol Custom Cable

CBL ASSY SMB-NTYPE JCK-JCK 8.2'

Technical Specifications

Parameters and characteristics for this part

Specification	Q-1U03I00052.5M

1st Connector	Right Angle, SMB Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	N-Type Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-316
Color	Copper
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	8.2 '
Length	98.4 in
Length	2.5 m
Overall Impedance	50 Ohms
Style	SMB to N-Type

Part	Color	Frequency - Max [Max]	Features	Length	Length	1st Connector Mounting Type	2nd Connector Mounting Type	Overall Impedance	2nd Connector	2nd Contact Gender	Style	2nd Connector Mounting Feature	1st Connector	Cable Type	1st Contact Gender	Length [x]	Length [x]	1st Connector Mounting Feature	Length
Amphenol Custom Cable Q-1U03I0005009i	Copper	4 GHz	Shielded	9 "	228.6 mm	Free Hanging (In-Line)	Panel Mount	50 Ohms	N-Type Jack	Female	SMB to N-Type	Bulkhead - Front Side Nut	Right Angle SMB Jack	RG-316	Male
Amphenol Custom Cable Q-1U03I0003018i	Black	4 GHz	Shielded			Panel Mount	Panel Mount	50 Ohms	N-Type Jack	Female	SMB to N-Type	Bulkhead - Front Side Nut	Right Angle SMB Jack	RG-174	Male	457.2 mm	457.2 mm	Bulkhead - Front Side Nut
Amphenol Custom Cable Q-1U03I00052.5M	Copper	4 GHz	Shielded	98.4 in	2.5 m	Free Hanging (In-Line)	Panel Mount	50 Ohms	N-Type Jack	Female	SMB to N-Type	Bulkhead - Front Side Nut	Right Angle SMB Jack	RG-316	Male				8.2 '
Amphenol Custom Cable Q-1U03I0003003M	Black	4 GHz	Shielded	118.1 in	3 m	Panel Mount	Panel Mount	50 Ohms	N-Type Jack	Female	SMB to N-Type	Bulkhead - Front Side Nut	Right Angle SMB Jack	RG-174	Male			Bulkhead - Front Side Nut	9.8 '
Amphenol Custom Cable Q-1U03I00030.5M	Black	4 GHz	Shielded	19.69 "	50 cm	Panel Mount	Panel Mount	50 Ohms	N-Type Jack	Female	SMB to N-Type	Bulkhead - Front Side Nut	Right Angle SMB Jack	RG-174	Male			Bulkhead - Front Side Nut

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

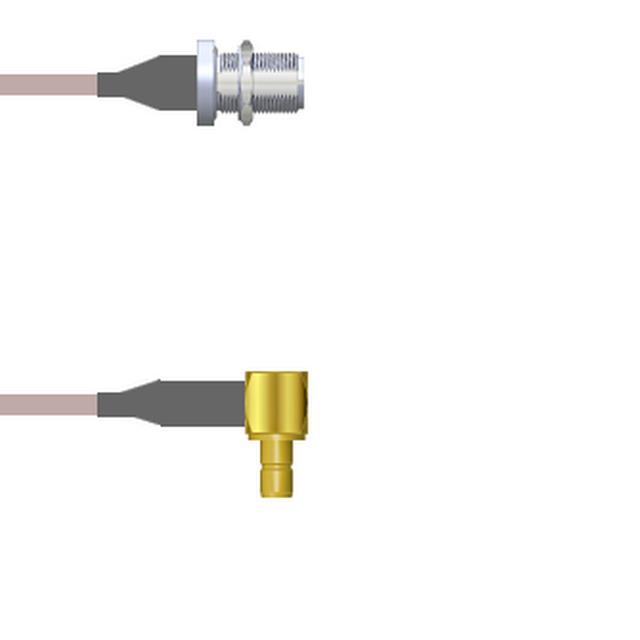

Cable Assembly Coaxial SMB to N-Type RG-316 98.4" (2.5m) 8.2'
