7251-4PG-300

Active

Conxall/Switchcraft

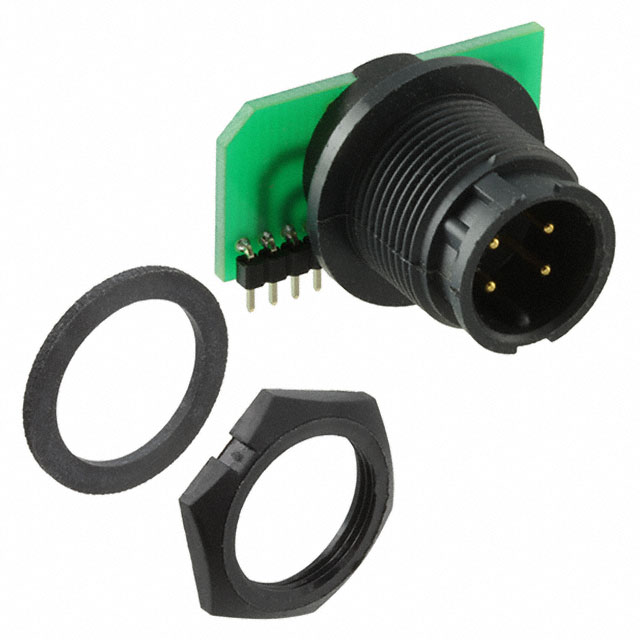

CONN RCPT MALE 4POS GOLD SOLDER

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT MALE 4POS GOLD SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	7251-4PG-300

Applications	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Polyamide (PA), Nylon
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Bayonet Lock
Ingress Protection	Weathertight
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	4
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Termination	Circuit Board, Solder

CONN RCPT MALE 4POS GOLD SOLDER

Part	Connector Type	Ingress Protection	Insert Material	Color	Mounting Type	Mounting Feature	Orientation	Contact Finish - Mating	Number of Positions	Backshell Material, Plating	Termination	Fastening Type	Shielding	Contact Material	Current Rating (Amps)	Applications	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Primary Material
Conxall/Switchcraft 7251-4PG-300	Male Pins, Receptacle	Weathertight	Thermoplastic	Black	Panel Mount, Right Angle, Through Hole	Bulkhead - Front Side Nut	Keyed	Gold	4	Nylon, Polyamide (PA)	Circuit Board, Solder	Bayonet Lock	Unshielded	Copper Alloy	Varies by Wire Gauge	Automotive, Communication Systems, Instrumentation	UL94 V-0	85 °C	-40 °C	Plastic

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Receptacle, Male Pins Circuit Board, Solder
