ESD-SR-100

Active

KEMET

FERRITE CORE HINGED 6MM

Search across all available documentation for this part.

Active

KEMET

FERRITE CORE HINGED 6MM

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Material	Design	Type	Inner Dimension [diameter]	Inner Dimension [diameter]	Outer Dimension [z]	Outer Dimension [z]	Outer Dimension [y]	Outer Dimension [y]	Length	Length	Length [x]	Length [x]	Outer Dimension [x]	Outer Dimension [x]	Length	Ratings
KEMET ESD-SR-S57M	Free Hanging	MnZn	Hinged (Snap On)	Round
KEMET ESD-SR-100	Free Hanging		Hinged (Snap On)	Round	6 mm	0.236 in	0.65 in	16.5 mm	0.65 in	16.5 mm	0.827 in	21 mm
KEMET ESD-SR-150G	Free Hanging	NIZn	Hinged (Snap On)	Round	7 mm	0.276 "	0.799 in	20.3 mm	0.772 in	19.6 mm	1.472 in	37.4 mm
KEMET ESD-SR-S47M	Free Hanging	MnZn	Hinged (Snap On)	Round		1.024 " 26 mm
KEMET ESD-SR-120G	Free Hanging	NIZn	Hinged (Snap On)	Round	6 mm	0.236 in			0.646 "	16.4 mm			33 mm	1.299 in	16 mm	0.63 "
KEMET ESD-SR-S10	Free Hanging		Hinged (Snap On)	Round	6 mm	0.236 in	0.551 "	14 mm	0.61 "	15.5 mm	0.728 "	18.5 mm
KEMET ESD-SR-250	Free Hanging	NIZn	Hinged (Snap On)	Round	13 mm	0.512 "	1.244 in	31.6 mm	1.24 in	31.5 mm	1.496 in	38 mm
KEMET ESD-SR-160G	Free Hanging	NIZn	Hinged (Snap On)	Round	9 mm	0.354 "			0.787 "	20 mm		1.535 in			20.2 mm	0.795 "	39 mm
KEMET ESD-SR-110	Free Hanging		Hinged (Snap On)	Round	5 mm	0.197 in			0.559 in	14.2 mm	1.102 in	28 mm			14.4 mm	0.567 in
KEMET ESD-SR-250HL	Cable Tie	NIZn	Hinged (Snap On)	Round	13 mm	0.512 "			1.181 "	30 mm	1.654 "	42 mm			30 mm	1.181 "		AEC-Q200

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

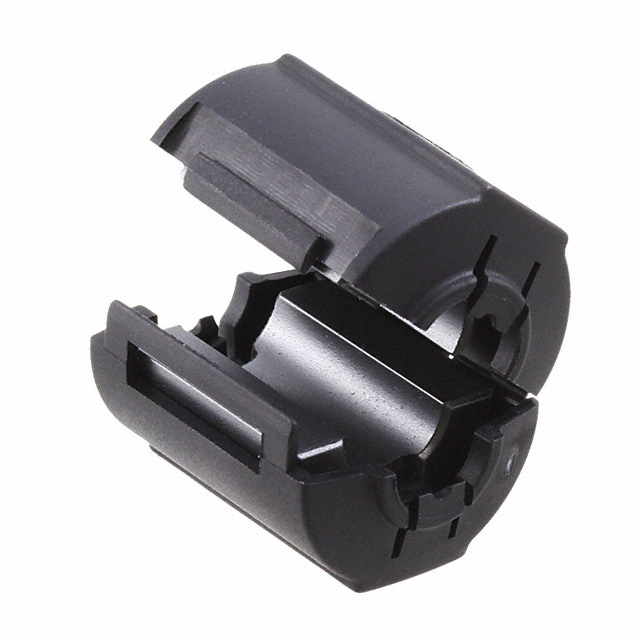

Hinged (Snap On) Free Hanging Ferrite Core ID 0.236" Dia (6.00mm) OD 0.650" W x 0.650" H (16.50mm x 16.50mm) Length 0.827" (21.00mm)
