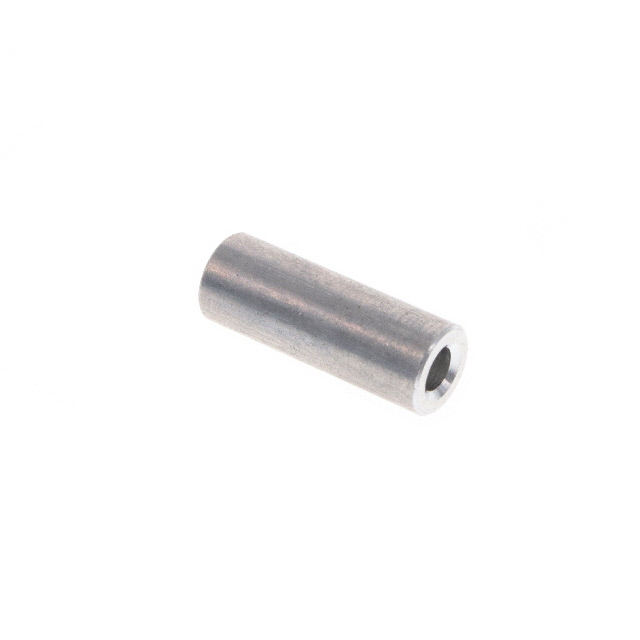

1131-4-AL
ActiveRAF Electronic Hardware
1/4 RD X 11/16 X .115 ID
Deep-Dive with AI
Search across all available documentation for this part.
1131-4-AL
ActiveRAF Electronic Hardware
1/4 RD X 11/16 X .115 ID
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1131-4-AL |
|---|---|
| Between Board Height | 0.688 in |
| Between Board Height | 17.46 mm |
| Diameter - Inside [diameter] | 0.115 in |
| Diameter - Inside [diameter] | 2.92 mm |
| Diameter - Outside [diameter] | 6.35 mm |
| Diameter - Outside [diameter] | 0.25 in |
| Diameter - Outside [diameter] | 0.25 in |
| Gender | Female |
| Length - Overall | 17.46 mm |
| Length - Overall [x] | 0.688 in |
| Material | Aluminum |
| Threaded/Unthreaded | Unthreaded |
| Type | Round Spacer |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.90 | |
| 5 | $ 0.75 | |||
| 10 | $ 0.67 | |||
| 25 | $ 0.60 | |||
| 50 | $ 0.54 | |||
| 100 | $ 0.52 | |||
| 250 | $ 0.51 | |||
Description
General part information
1131 Series
Round Spacer Unthreaded Aluminum 0.688" (17.46mm)
Documents
Technical documentation and resources
No documents available
