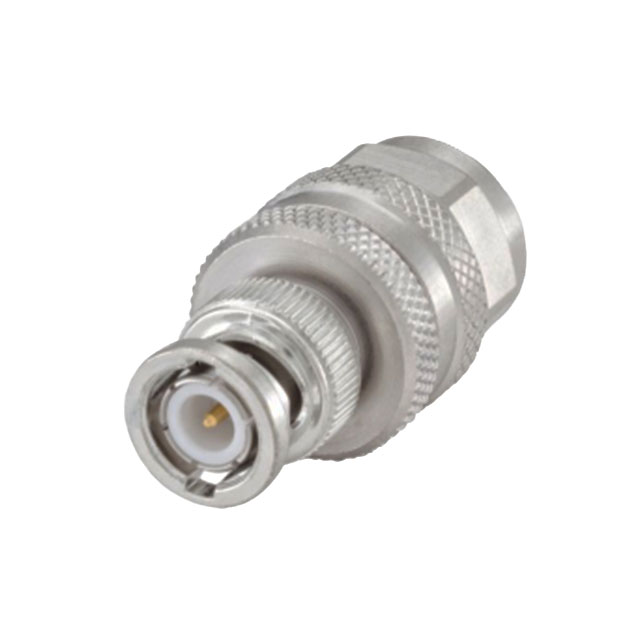

51S153-S00N5

Active

Rosenberger

CONN ADAPT N PLUG TO BNC PLUG

Search across all available documentation for this part.

Active

Rosenberger

CONN ADAPT N PLUG TO BNC PLUG

Technical Specifications

Parameters and characteristics for this part

Specification	51S153-S00N5

Adapter Series	BNC to N
Adapter Type	Plug to Plug
Body Finish	White Bronze
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Center Gender	Male to Male
Conversion Type	Between Series
Convert From (Adapter End)	BNC Plug, Male Pin
Convert To (Adapter End)	Male Pin, N Plug
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock, Threaded
Frequency - Max [Max]	10 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Style	Straight

Part	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Convert To (Adapter End)	Impedance	Conversion Type	Adapter Type	Center Contact Material	Style	Dielectric Material	Convert From (Adapter End)	Frequency - Max [Max]	Mounting Type	Mating Cycles	Adapter Series	Body Material	Body Finish	Center Gender	Center Contact Plating
Rosenberger 51S153-S00N5	155 °C	-55 °C	Bayonet Lock Threaded	Male Pin N Plug	50 Ohms	Between Series	Plug to Plug	Brass	Straight	Polytetrafluoroethylene (PTFE)	BNC Plug Male Pin	10 GHz	Free Hanging (In-Line)	500	BNC to N	Brass	White Bronze	Male to Male	Gold
Rosenberger 51S153-K00N5	155 °C	-55 °C	Bayonet Lock Threaded	Female Socket N Jack	50 Ohms	Between Series	Plug to Jack	Beryllium Copper	Straight	Polytetrafluoroethylene (PTFE)	BNC Plug Male Pin	10 GHz	Free Hanging (In-Line)	500	BNC to N	Brass	White Bronze		Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector BNC Plug, Male Pin To N Plug, Male Pin 50 Ohms
