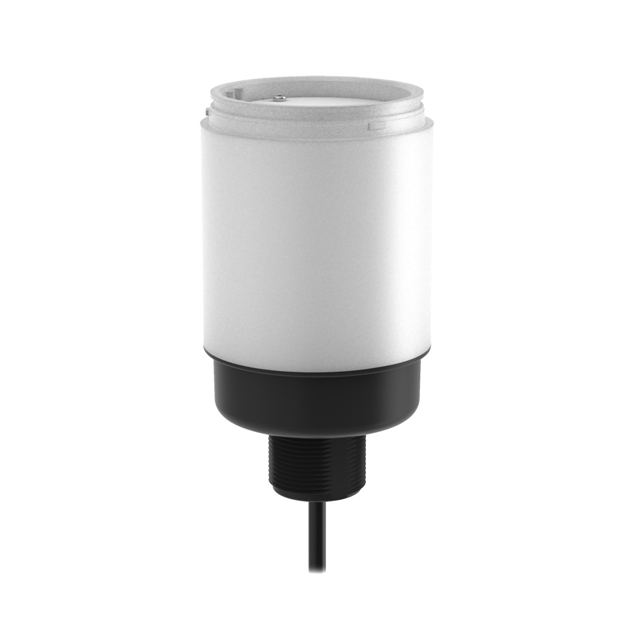

B-TL70Z-5

Active

BANNER ENGINEERING

BASE FOR 1-4 MODS 100-230VAC

Search across all available documentation for this part.

Active

BANNER ENGINEERING

BASE FOR 1-4 MODS 100-230VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 158.00
Newark	Each	1	$ 161.00

General part information

Stack Light Mounting Base Wire Leads

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	B-TL70Z-5	B-TL70 Series

Function - Lighting	-	Steady
Ingress Protection	IP65 - Dust Tight, Water Resistant	IP65 - Dust Tight, Water Resistant
Number of Stacks	-	1
Operating Temperature [Max]	50 °C	50 °C
Operating Temperature [Min]	-40 °C	-40 °C
Termination Style	Wire Leads	Wire Leads, Cable with Connector, Connector
Type	Mounting Base	Mounting Base, Complete Unit, Optical Element
Voltage - Supply [Max]	240 VAC	30 - 240 VDC
Voltage - Supply [Min]	100 VAC	12 - 100 V

BASE MODULE, TOWER LIGHT, 2M, BLACK

Part	Voltage - Supply [Min]	Voltage - Supply [Max]	Termination Style	Type	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Number of Stacks	Function - Lighting
BANNER ENGINEERING B-TL70-8	12 V	30 VDC	Wire Leads	Mounting Base	-40 °C	50 °C	IP65 - Dust Tight, Water Resistant
BANNER ENGINEERING B-TL70-QP8	12 V	30 VDC	Cable with Connector	Complete Unit	-40 °C	50 °C	IP65 - Dust Tight, Water Resistant	1
BANNER ENGINEERING B-TL70DXN9-Q5	12 V	30 VDC	Connector	Mounting Base	-40 °C	50 °C	IP65 - Dust Tight, Water Resistant
BANNER ENGINEERING B-TL70DXN9-Q8C	12 V	30 VDC	Connector	Complete Unit	-40 °C	50 °C	IP65 - Dust Tight, Water Resistant	1
BANNER ENGINEERING B-TL70-Q5	12 V	30 VDC	Wire Leads	Mounting Base	-40 °C	50 °C	IP65 - Dust Tight, Water Resistant
BANNER ENGINEERING B-TL70-Q8	12 V	30 VDC	Wire Leads	Mounting Base	-40 °C	50 °C	IP65 - Dust Tight, Water Resistant
BANNER ENGINEERING B-TL70Z-Q5	100 VAC	240 VAC	Wire Leads	Mounting Base	-40 °C	50 °C	IP65 - Dust Tight, Water Resistant
BANNER ENGINEERING B-TL70Z-5	100 VAC	240 VAC	Wire Leads	Mounting Base	-40 °C	50 °C	IP65 - Dust Tight, Water Resistant
BANNER ENGINEERING B-TL70-5 W/16	12 V	30 VDC	Wire Leads	Optical Element	-40 °C	50 °C	IP65 - Dust Tight, Water Resistant	1	Steady
BANNER ENGINEERING B-TL70DXN2-Q5	12 V	30 VDC	Connector	Complete Unit	-40 °C	50 °C	IP65 - Dust Tight, Water Resistant	1
