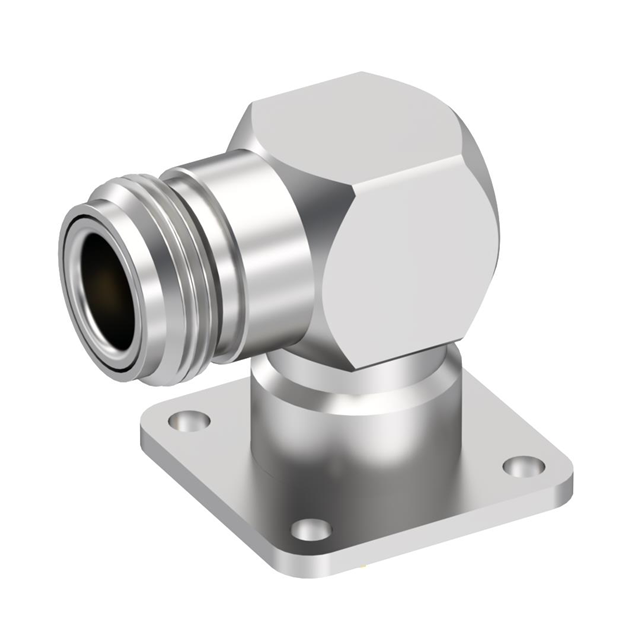

R161653000

Active

Radiall USA, Inc.

N F RA SQF C50

Search across all available documentation for this part.

Active

Radiall USA, Inc.

N F RA SQF C50

Technical Specifications

Parameters and characteristics for this part

Specification	R161653000

Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	N Type
Connector Type	Female Socket, Jack
Contact Termination	Solder Cup
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Flange
Mounting Type	Right Angle, Panel Mount
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder
Voltage Rating	1400 V

Part	Voltage Rating	Connector Style	Shield Termination	Dielectric Material	Number of Ports	Body Material	Mounting Type	Mounting Feature	Center Contact Plating	Operating Temperature [Max]	Operating Temperature [Min]	Center Contact Material	Connector Type	Impedance	Frequency - Max [Max]	Mating Cycles	Contact Termination
Radiall USA, Inc. R161653000	1400 V	N Type	Solder	Polytetrafluoroethylene (PTFE)	1	Brass	Panel Mount Right Angle	Flange	Gold	155 °C	-55 °C	Beryllium Copper	Female Socket Jack	50 Ohms	11 GHz	500	Solder Cup

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

N Type Connector Jack, Female Socket 50 Ohms Panel Mount, Right Angle Solder Cup
