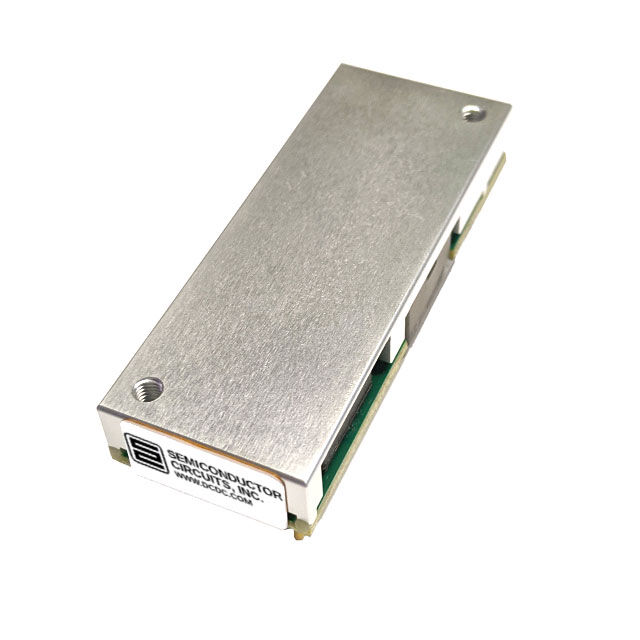

CPE30A48PB

Active

Semiconductor Circuits, Inc.

DC DC CONVERTER 5V 150W

Search across all available documentation for this part.

Active

Semiconductor Circuits, Inc.

DC DC CONVERTER 5V 150W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module DC DC Converter 1 Output 5V 30A 36V - 75V Input

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	CPE30A48PB	CPE30A48 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	CSA, TUV, UL	CSA, TUV, UL
Control Features	Active High, Enable	Active Low, Enable, Active High
Current - Output (Max) [Max]	30 A	30 A
Efficiency	93 %	93 %
Features	Remote On/Off, Adjustable Output, Baseplate, Remote Sense	Remote On/Off, Adjustable Output, Baseplate, Remote Sense
Mounting Type	Through Hole	Through Hole
Number of Outputs	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	Eighth Brick	Eighth Brick
Power (Watts)	150 W	150 W
Size / Dimension [x]	58.4 mm	58.4 mm
Size / Dimension [x]	2.3 in	2.3 in
Size / Dimension [y]	22.9 mm	22.9 mm
Size / Dimension [y]	0.9 "	0.9 "
Size / Dimension [z]	12.7 mm	11.8 - 12.7 mm
Size / Dimension [z]	0.5 in	0.46 - 0.5 in
Supplier Device Package	Eighth Brick	Eighth Brick
Type	Isolated Module	Isolated Module
Voltage - Input (Max) [Max]	75 V	75 V
Voltage - Input (Min) [Min]	36 V	36 V
Voltage - Isolation	2250 VDC	2250 VDC
Voltage - Output 1	5 V	5 V

DC DC CONVERTER 5V 150W

Part	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 1	Applications	Control Features	Features	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Approval Agency	Efficiency	Voltage - Isolation	Number of Outputs	Power (Watts)	Package / Case	Supplier Device Package	Type	Voltage - Input (Min) [Min]
Semiconductor Circuits, Inc. CPE30A48N	11.8 mm	2.3 in	22.9 mm	0.9 "	58.4 mm	0.46 in	Through Hole	85 °C	-40 °C	5 V	ITE (Commercial)	Active Low, Enable	Adjustable Output, Remote On/Off	30 A	75 V	CSA, TUV, UL	93 %	2250 VDC	1	150 W	Eighth Brick	Eighth Brick	Isolated Module	36 V
Semiconductor Circuits, Inc. CPE30A48PB	12.7 mm	2.3 in	22.9 mm	0.9 "	58.4 mm	0.5 in	Through Hole	85 °C	-40 °C	5 V	ITE (Commercial)	Active High, Enable	Adjustable Output, Baseplate, Remote On/Off, Remote Sense	30 A	75 V	CSA, TUV, UL	93 %	2250 VDC	1	150 W	Eighth Brick	Eighth Brick	Isolated Module	36 V
