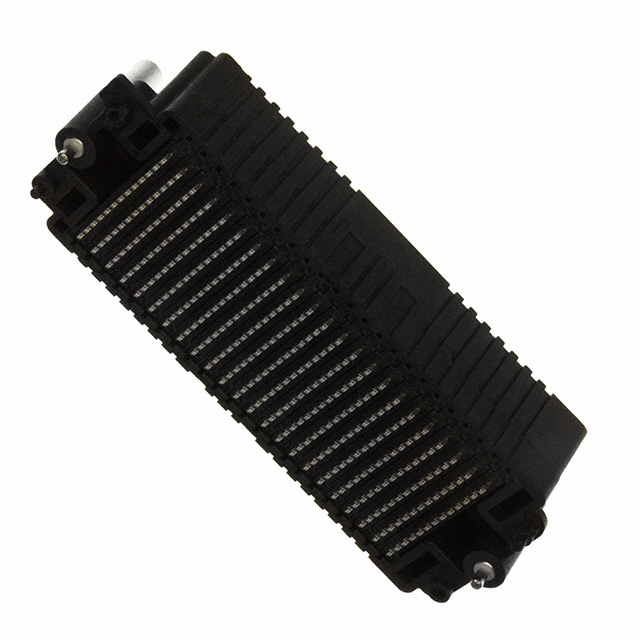

HDAM-23-12.0-S-13-1

Active

Samtec Inc.

CONN HD ARRAY PLUG 299P SMD GOLD

Search across all available documentation for this part.

Active

Samtec Inc.

CONN HD ARRAY PLUG 299P SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Part	Contact Finish	Connector Type	Height Above Board [z]	Height Above Board [z]	Number of Rows	Mounting Type	Pitch [x]	Pitch [x]	Number of Positions	Mated Stacking Heights [z]	Contact Finish Thickness	Contact Finish Thickness	Features	Mated Stacking Heights	Height Above Board	Height Above Board
Samtec Inc. HDAM-23-17.0-S-13-2	Gold	High Density Array Male	22.35 mm	0.88 in	13	Surface Mount	1.2 mm	0.047 in	299	25 mm 35 mm	0.76 Ám	30 Áin	Board Guide
Samtec Inc. HDAM-23-12.0-S-13-1	Gold	High Density Array Male			13	Surface Mount	1.2 mm	0.047 in	299		0.76 Ám	30 Áin	Board Guide	20 mm 30 mm	17.35 mm	0.683 "
Samtec Inc. HDAM-23-12.0-S-13-2-P	Gold	High Density Array Male			13	Surface Mount	1.2 mm	0.047 in	299		0.76 Ám	30 Áin	Board Guide Pick and Place	20 mm 30 mm	17.35 mm	0.683 "
Samtec Inc. HDAM-23-12.0-S-13-2	Gold	High Density Array Male			13	Surface Mount	1.2 mm	0.047 in	299		0.76 Ám	30 Áin	Board Guide	20 mm 30 mm	17.35 mm	0.683 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	18	$ 63.45

General part information

299 Position Connector High Density Array, Male Surface Mount Gold
